icture

(PIP) O

peration

With a VCR - No Cable Box

This television includes a Picture In Picture (PIP) feature. A second video source

(VCR) is required to provide a second picture.

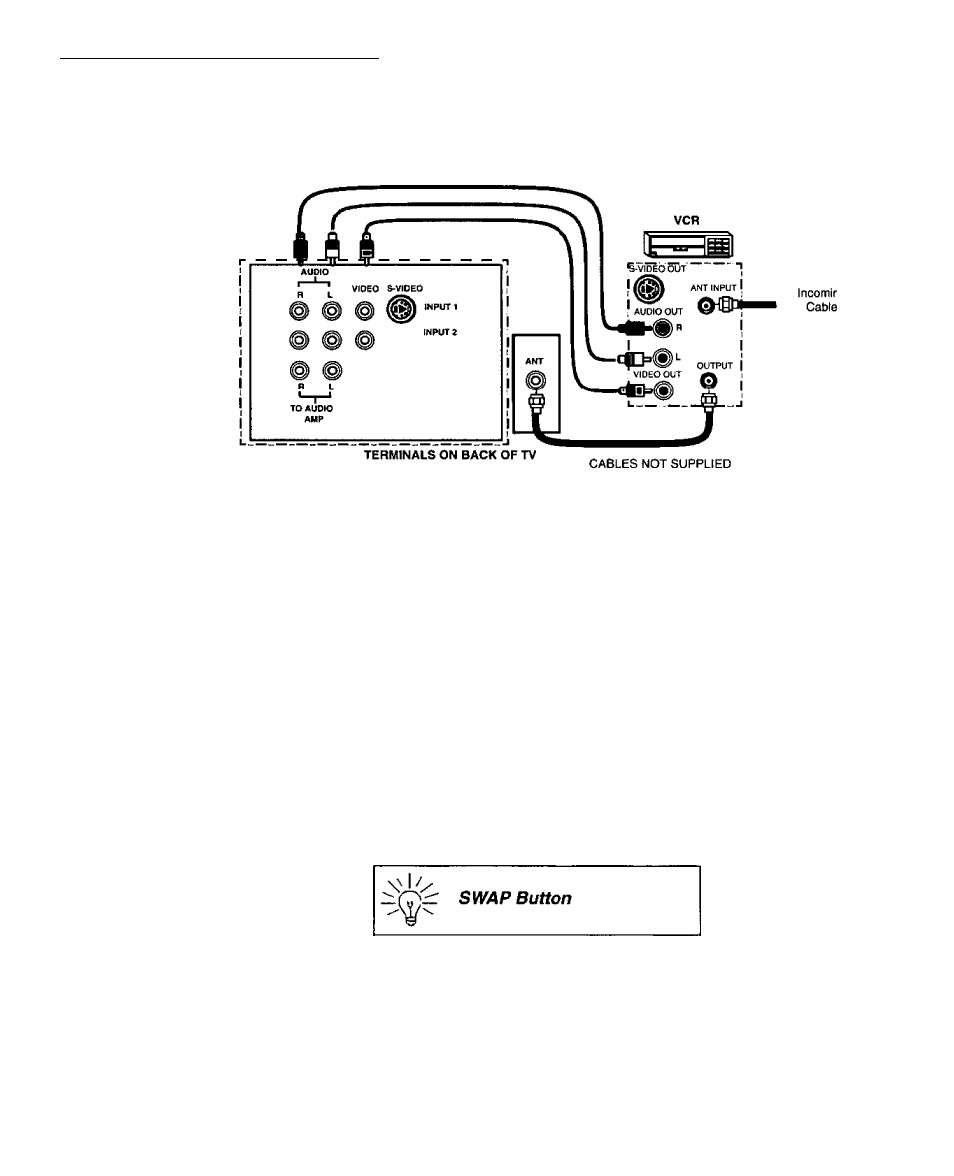

Connect your television to a VCR, as shown.

Note:

The Remote Control must be programmed with the supplied codes to operate the
VCR. See Programming the Remote Control in the ffemofe Control Quick

Reference Guide.

Procedure

Turn the VCR off and tune the TV to Channel 3 or 4, depending on the VCR.

Press the PIP button on the Remote Control to display the PIP frame on screen.

Note:

The PIP picture is the same as the Main picture, initially.

Press the TVA/IDEO button on the Remote Control to select the VIDEO PIP

source.

Press the VCR button on the Remote Control and turn the VCR on.
Press the TVA^CR button on the Remote Control.

4. Choose channels for P/Pframe by pressing VCR CHANNEL up/down buttons

on the Remote Control.
Choose channels for the Main Picture by pressing the TV button on the

Remote Control and using the numeric keypad or CH up/down buttons.

The

SWAP

button switches the PIP and Main

Picture source. Press the

RECALL

button for PIP

and Main Picture source status, on screen.
