Optional Equipment Connection and Operation
Video/Audio Connection
Operation
1. Connect the Optional Equipment as shown. If Optional Equipment is Stereo, place Optional Equipment in Monaural
Mode and use either left or right Audio Output jack.
2. Select Video Input mode by pressing the TVA/IDEO button.
•
TV - {CH and channel number will display On Screen) normal TV operation.
•
VIDEO - {VIDEO will display On Screen) used when optional accessory video equipment (such as VCR, VIDEO
DISC player, etc.) is connected to the INPUT JACKS on back of Receiver.
3. Operate optional equipment (VCR-VDP) as instructed in Optional Equipment manual.

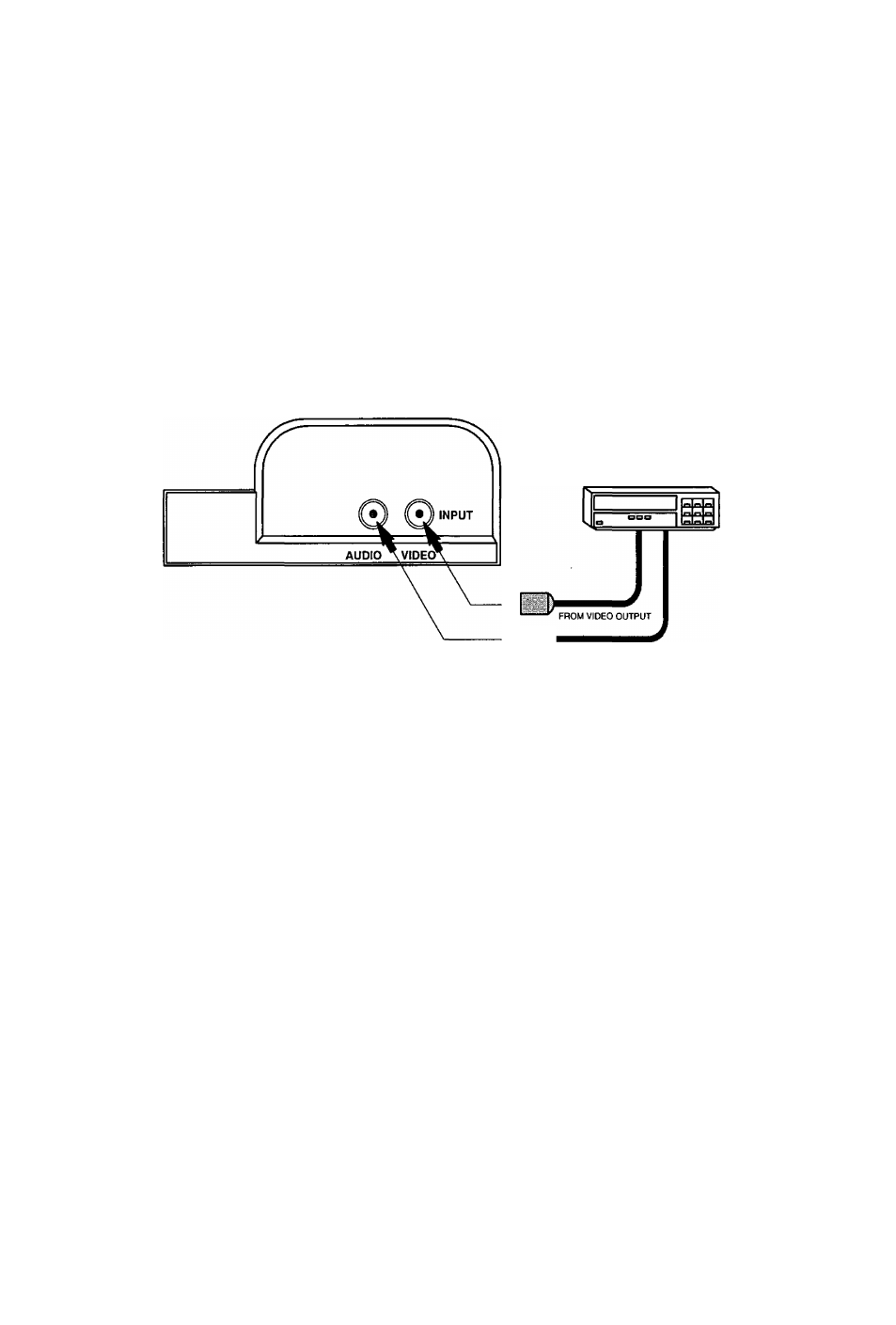

TERMINALS ON BACK OF RECEIVER
