Installation (cont.)

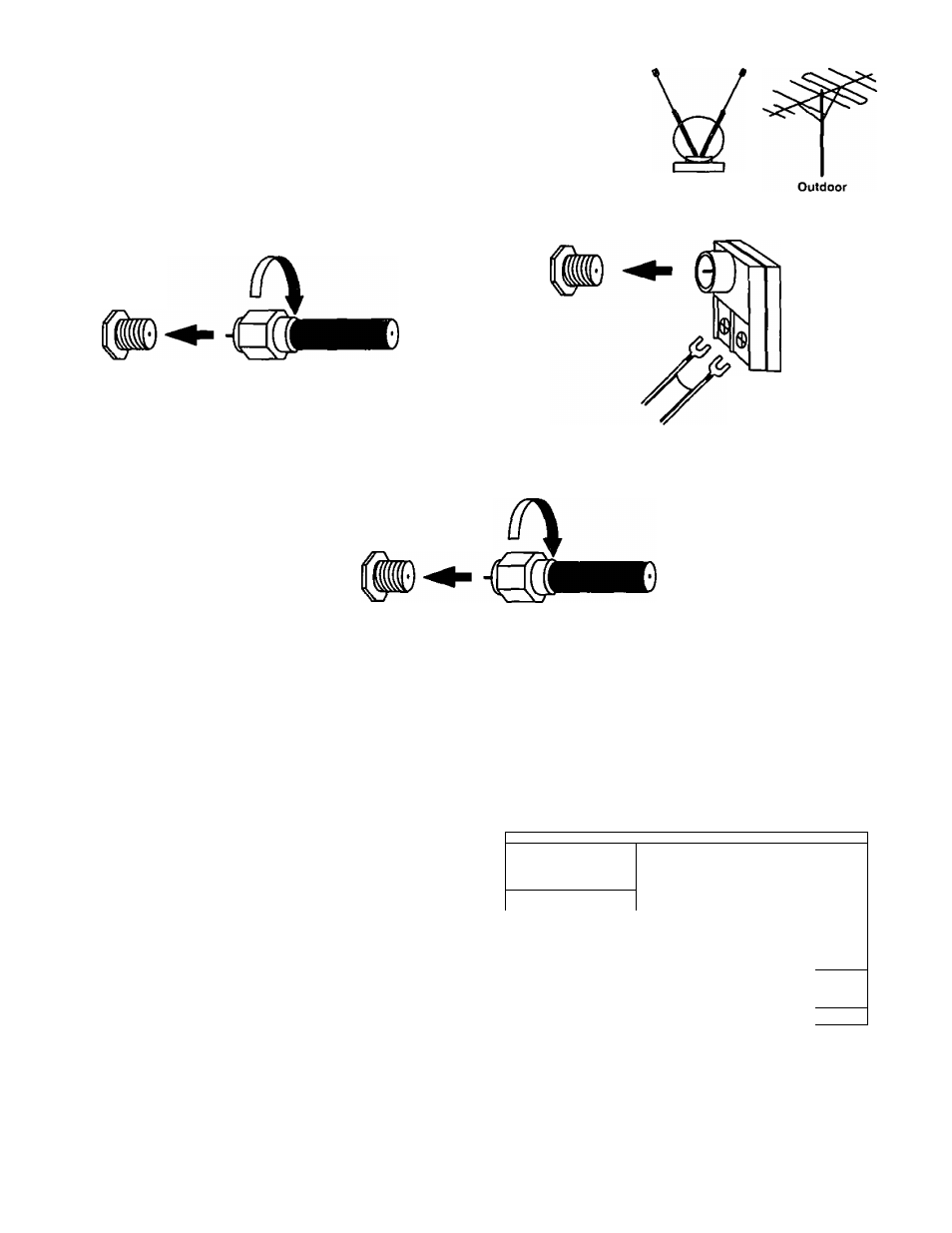

Antenna/Cable Connections
Antenna Connection - For proper reception of VHF/UHF channels, an external
antenna is required. For best reception an outdoor antenna is recommended.
Antenna Mode must be set to TV. (Refer to Antenna Mode section.)
Incoming Cable from Home Antenna
75 Ohm
VHF/UHF
on Back of Set
Indoor
Typical VHF/UHF Antenna
300 Ohm
VHFAJHF
on Back of Set
or
300 to 75 ohm Matching
Transformer (Not Included)
Cable Connection - For reception of cable channels, connect the cable supplied by your local cable company. Antenna
Mode must be set to CABLE. (Refer to Antenna Mode section.)
Incoming Cable from Cable Company
75 Ohm
VHF/UHF
on Back of Set
NOTE: Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A
cable converter box is required for proper reception. Check with your local Cable company for compatibility
requirements.
Other Video Equipment
VCRs, Video Disc Players, Computers, TV games, and DSS equipment can also be connected to the antenna input
connection.
Optional Equipment Connection and Operation
To Audio AMP Connection (For CT-20G22 Only)
a
Q
f fi a
o
TERMINALS ON BACK OF RECEIVER
To Auxiliary input
~...... ...................
mmr
^ m
m ^mm
l
mm
(CABLES NOT SUPPUED)
• To Audio AMP
Connect to an external audio amp auxiliary input for
monitoring sound through a stereo system.
NOTE: ‘TO AUDIO AMP” terminals cannot be used
for external speakers.
Adjustment - When an audio amp is connected to ‘TO AUDIO AMP” terminals as shown:
1. Press the TV SPEAKERS button (located on back of Receiver) to turn INT. SPEAKERS "ON" (-^ ).
2. Set volume of audio amp to near minimum.
3. Adjust volume of TV to desired listening level.
4. Adjust volume of audio amp to match the level of TV.
5. Press the TV SPEAKERS button (located on back of Receiver) to turn INT. SPEAKERS “OFF” (J.).
6. Volume and mute can now be controlled by the TV Remote Control.
-
