Switch Settings
1
Set the MODE switch #2 on the rear of the WJ-HD500
to ON when connecting with the extension unit.
1234
^ fatili
ON
MODE
2
Set the SCSi iD for each unit by pressing the [-] and
[+] buttons on the rear of the extension unit.
0 to 5: Are applicable to the extension unit.
Note: SCSI ID 6 and 7 are reserved for WJ-HD500
Digital Disk Recorder.
SCSI ID
□
È
+
□
3
Set the termination switch to ON or OFF.
ON: Is applied to the extension unit located at the
end of the SCSI chain.
OFF: Is used for other than the end unit.
TERMINATION
ON
□
OFF

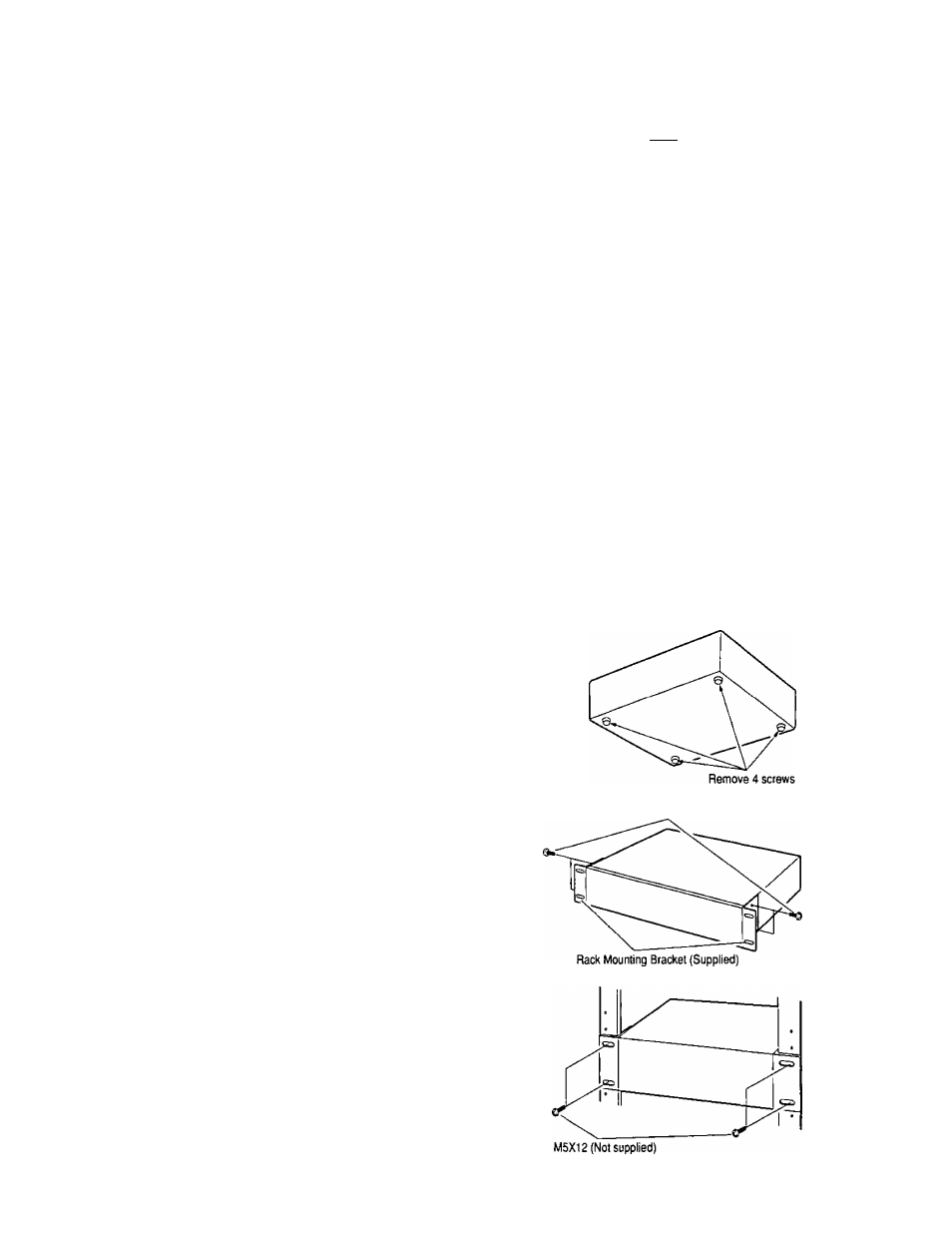

Rack Mounting
1
Remove the four rubber feet by removing four
screws from the bottom of the unit
2
Fix the Rack Mounting Brackets (supplied ) on both
sides the unit with 4 screws (M3X10 supplied).
3
.Install the unit in the rack securing it with four
screws (not supplied).
M3X10 (Supplied)
Cautions:
• Keep the temperature in the rack below 45'’C
(113‘>F).
• Do not block the ventilation opening or slots on the
cover to prevent the appliance from overheating.
-
7
-
