RACK MOUNTING

This Video DA can be mounted on the 19 inch rack

by utilizing the optional Rack Mount Frame and the

Blank

Panels

in

the

following

procedure,

The

Rack

Mount Frame WJ-A01 requires 3-1/2 inches height in

a standard 19 inch rack.

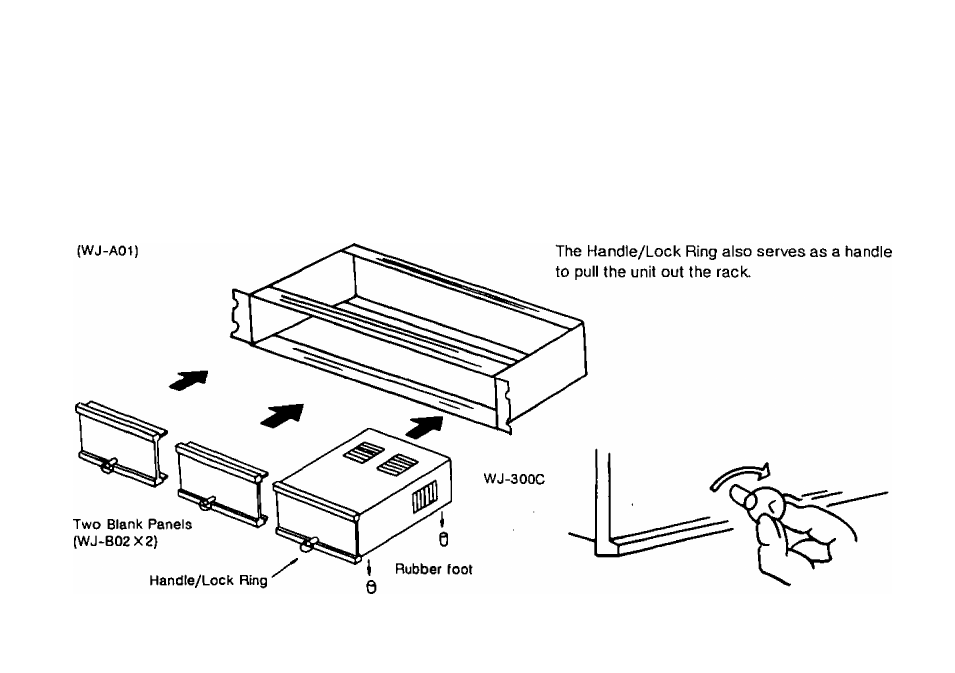

Rack Mount Frame

1.

Mount the Rack Mount Frame WJ-A01 on a rack,

2.

Remove four rubber feet from the Video DA.

WJ-300C and turn the Handle/Lock Ring on the

front panel fully counterclockwise.

3.

Slide Video D.A. and two Blank Panels WJ-B02 into

the Rack Mount Frame and turn the Handle/Lock

Ring fully counterclockwise to secure products.
