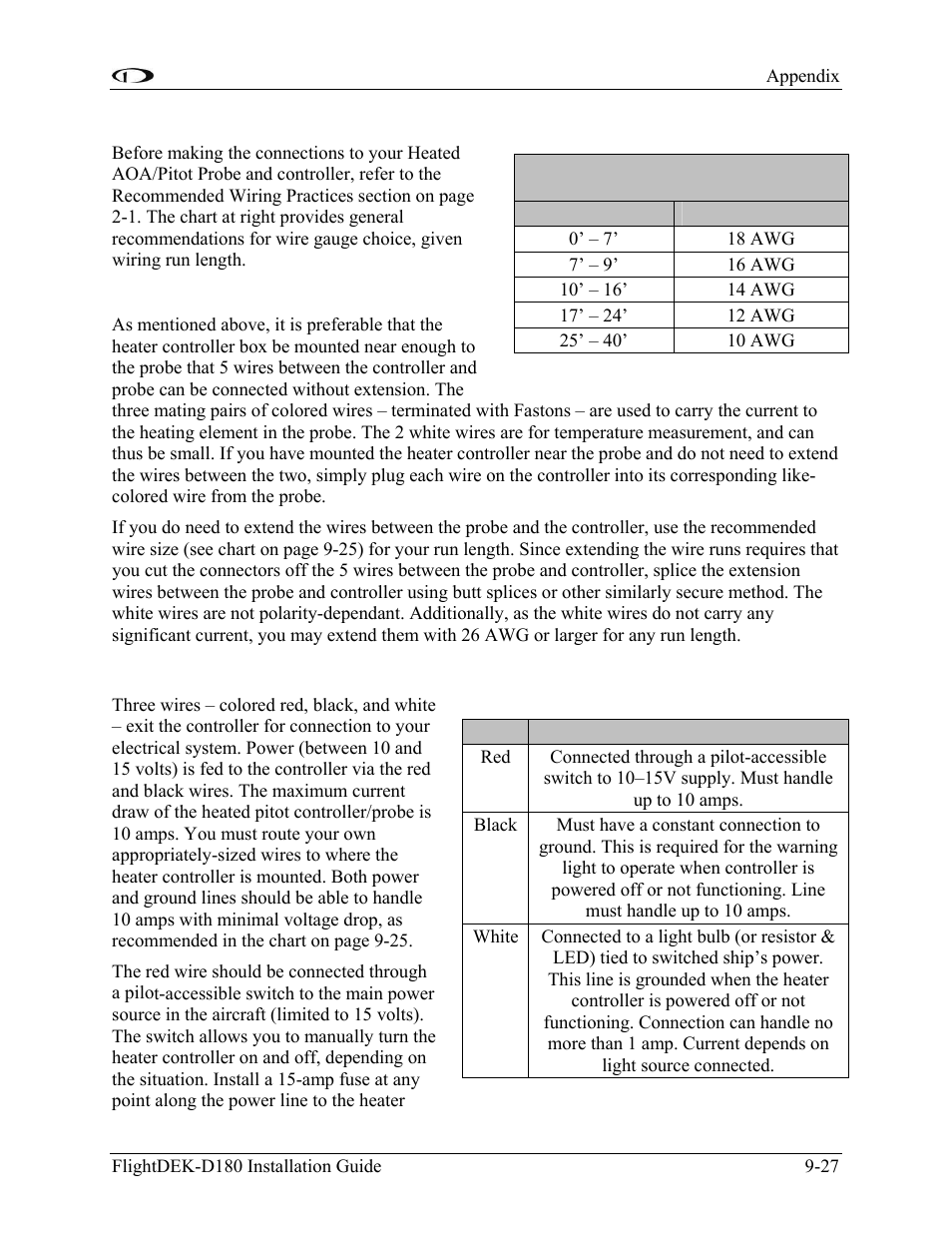

Heater controller wiring, Probe to controller wiring, Controller power wiring – Dynon Avionics FlightDEK-D180 Installation Guide User Manual
Page 143
