5v excitation, Thermocouple harness preparation, Harness mating – Dynon Avionics FlightDEK-D180 Installation Guide User Manual

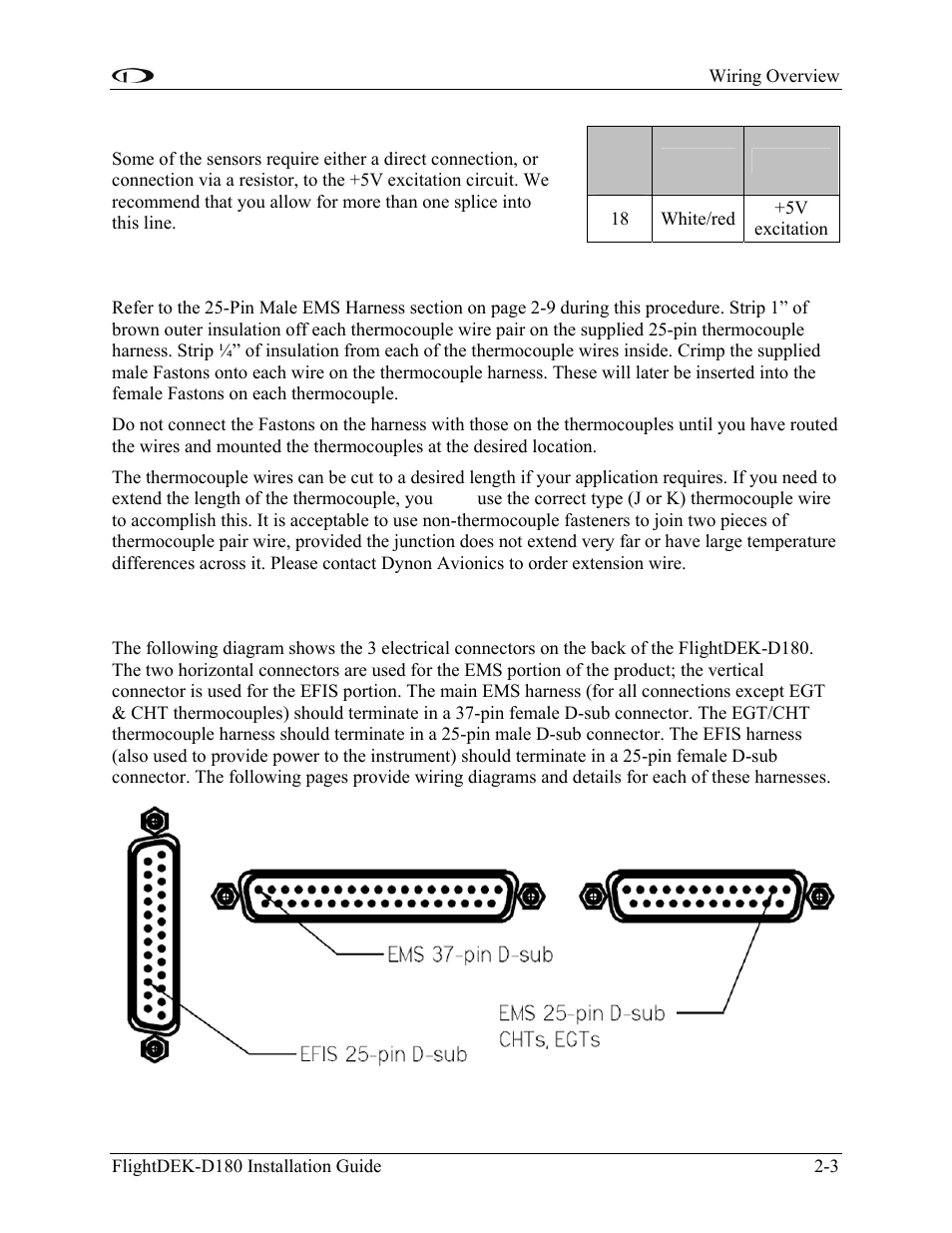

Page 11: 5v excitation -3, Thermocouple harness preparation -3, Harness mating -3
