Product Tour
4-2 D1 User Guide

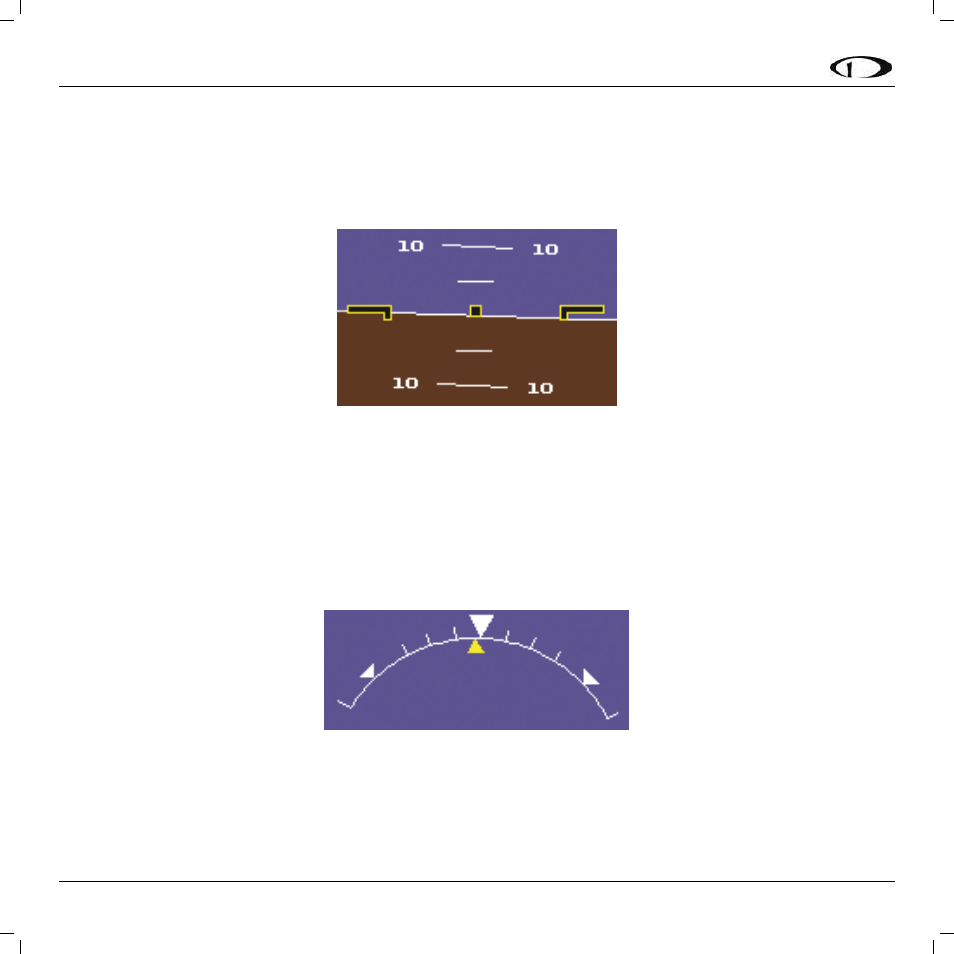

Pitch angle is read by noting the position of the indexed pitch ladder against the centered yellow-
outlined black square. There are extended pitch cues, also in yellow-outlined black to the left and
right of the primary aircraft pitch indication. In the example above, the aircraft is pitched up
approximately 1 degree.
Figure 2 - Pitch
Roll angle is indicated by the position of the yellow triangular roll pointer with respect to the arc
above it. There are tick marks on the roll arc at 10, 20, and 30 and 60 degrees of bank, and
triangles at 45 degrees of bank. In the example above, the aircraft is banked approximately 2
degrees to the left.
Figure 3 - Roll
