KTA 970/KMH 980 Pilot’s Guide
Rev 2 006-18273-0000
19
TCAS I Controls and Displays
BELOW - Traffic that is between 2700 feet above and 8700 feet below
will be displayed. Typically BELOW is used during the descent phase of
flight.
The FL (Flight Level) push button in the center of the Altitude Limit
Select Switch replaces Intruder’s relative altitude with absolute altitude
for 15 seconds. During this period the altitude is displayed in flight level
format. That is, 19,000 ft. is displayed as 190. After 15 seconds the
absolute reading reverts to relative altitude.
The FL function is flagged below 18,000 feet MSL on most traffic dis-
plays unless barometric corrected altitude is available from an air data
source. FL is not inhibited on the Radar indicator when used with
GC 362A.
If FL is selected while inhibited, “FL - - -” will show in place of own flight
level.
WEATHER RADAR INDICATORS
RDS 81, 82, 84 & 86, RDR 2000, RDR 2100 and Primus /Collins
Color Indicators

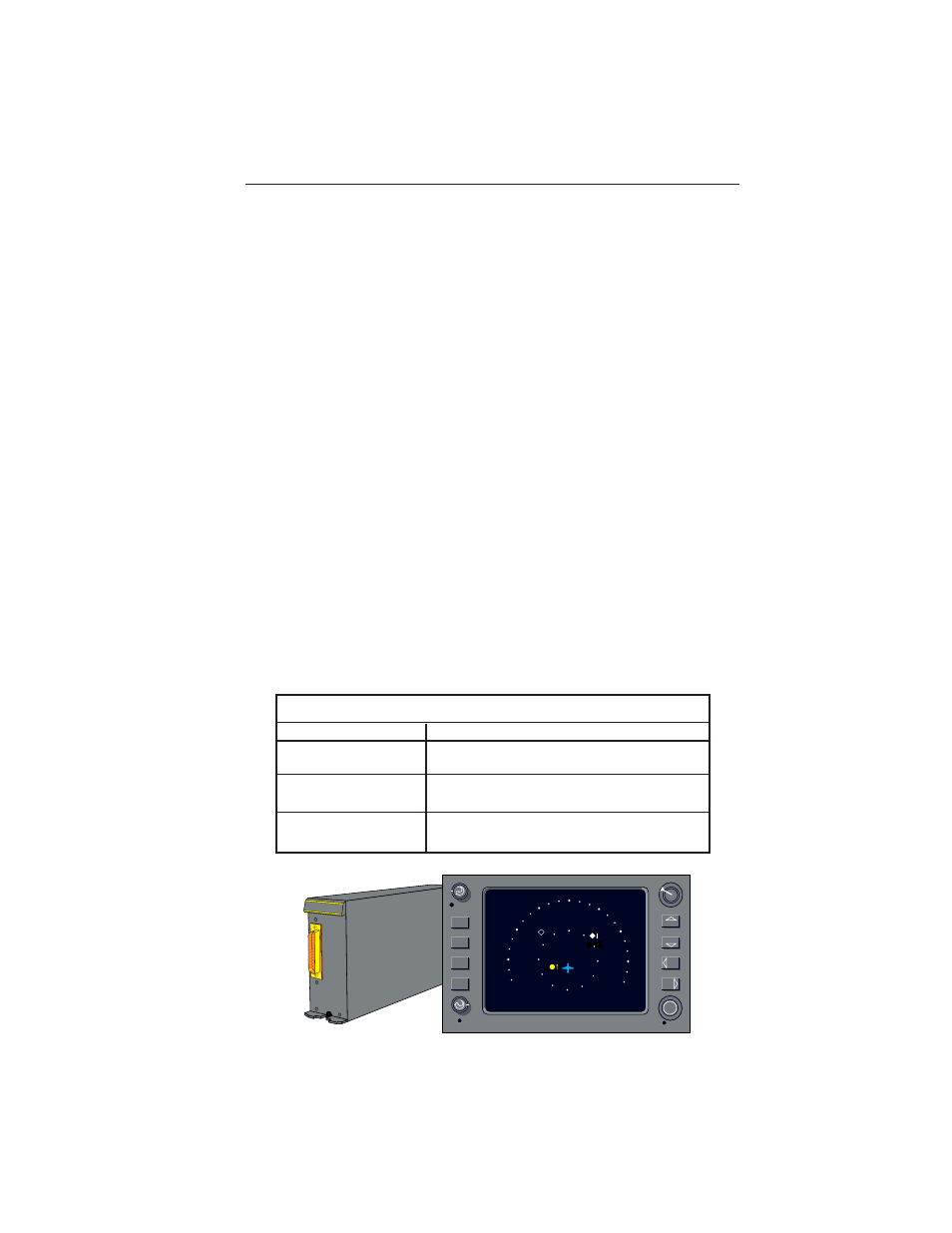

The GC 362A TCAS I Graphic Processor allows TCAS I traffic to be dis-
played on a variety of Color Radar indicators. A T/Wx (TCAS I/Weather)
select button is required to switch between Weather Only, Weather with
TCAS I Traffic overlaid and TCAS I Only display modes. The T/Wx
switch may be a separate momentary push button or included on anoth-
er control panel.
Compatible Weather Radar Indicators
Brand Mode
Bendix/King
Collins
Honeywell
RDS-81,82,84,86 & RDR 2000/2100
WXR System with IND-270
200/300SL/400/870/P90/650/800
GC 362A
B
BENDIX
TST
SBY
OFF
GAIN
UP
0
DN
BRT
Wx
VP
MAP
RNG
TRK
RNG
TILT
ON
NAV TRK
LOG
RNG 5
+10
-02
WX ON
TEST
-10
