Rev 8 Feb/2009 KMD 550/850 Quick Reference
7
OVERLAYING DATA
OVERLAY TYPE
M MO OD DE E F FL LIIG GH HT T P PL LA AN N S ST TO OR RM MS SC CO OP PE E ® ® T TR RA AF FF FIIC C M ME ET TA AR R D DA AT TA A L LIIN NK K S SC CIIT T T TF FR R
L LIIG GH HT TN NIIN NG G
MAP - TOPO ON Yes Yes1 Yes2 Yes No No Yes5
MAP - TOPO OFF Yes Yes1 Yes2 Yes No No Yes5
WX - Weather Radar Yes1 Yes Yes3 No No No No
WX - Stormscope ® Yes1 N/A No No No No No
WX - NEXRAD Yes Yes1 Yes No Yes Yes No
WX - Precipitation Type5 Yes No No No Yes Yes No
WX - Freezing Levels5 Yes No No No No No No
WX - Winds Aloft5 Yes No No No No No No
WX - Graphical METAR Yes No No N/A No No No
WX - Graphical AIRMET Yes Yes1 No No No No No
WX - Graphical SIGMET Yes Yes1 No No No No No
WX - Graphical Convective Yes Yes1 No No No No No
SIGMET
WX - Graphical Wx Watches Yes4
Yes1, 4 No No No No No
TERR Yes Yes1 Yes2 No No No No
TRFC Yes1 No N/A No No No No
1 Requires remote heading input 3 TIS requires remote heading input 5 Not available with VHF
2 TCAS/TAS requires remote heading input 4 Not available with XM Datalink FIS

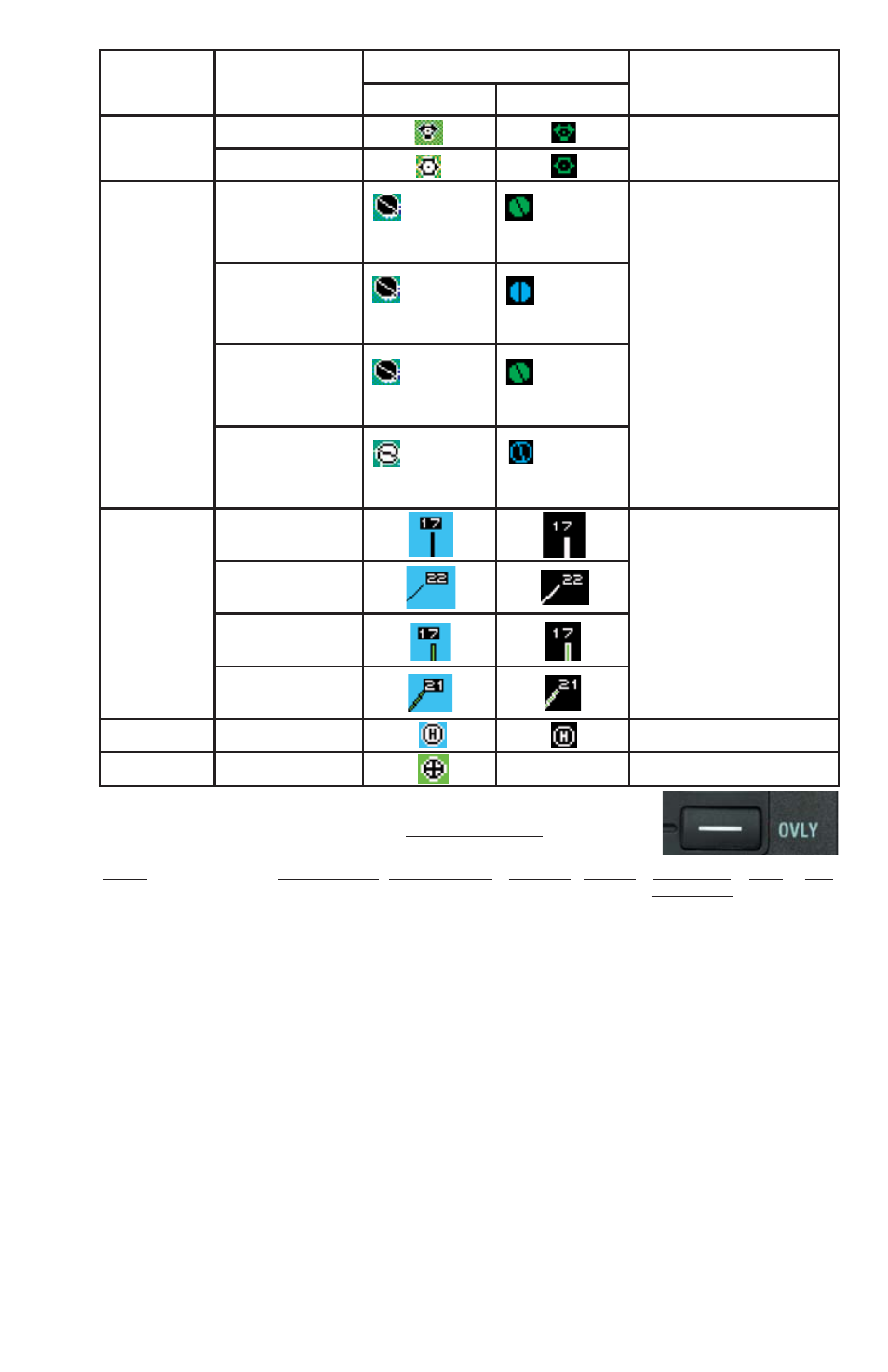

Feature Conditions Map Icons Other Characteristics
TOPO on TOPO off
VORs With DME
Without DME
Airports Hard runway +
IFR approach Line rep-
resents
primary runway
Line rep-
resents
primary runway
If the database does not
have runways for the air-
port, then the icon will not
indicate a runway (no line
will be displayed).
Hard runway, no
IFR approach Line rep-
resents
primary runway
Line rep-
resents
primary runway
IFR approach
available Line rep-
resents
primary runway
Line rep-
resents
primary runway
Soft or unknown
runways Line rep-
resents
primary runway
Line rep-
resents
primary runway
Airport
Runways
Primary, hard
surface Runways are shown for
airports within 5 nm of
current position and
selected range is 10 nm
or less. Runway ends are
labeled with the proper
runway identifier if
selected range is 1 nm.
Other hard sur-
face
Primary soft sur-
face
Other soft sur-
face
Helipads
VRPs Not displayed
