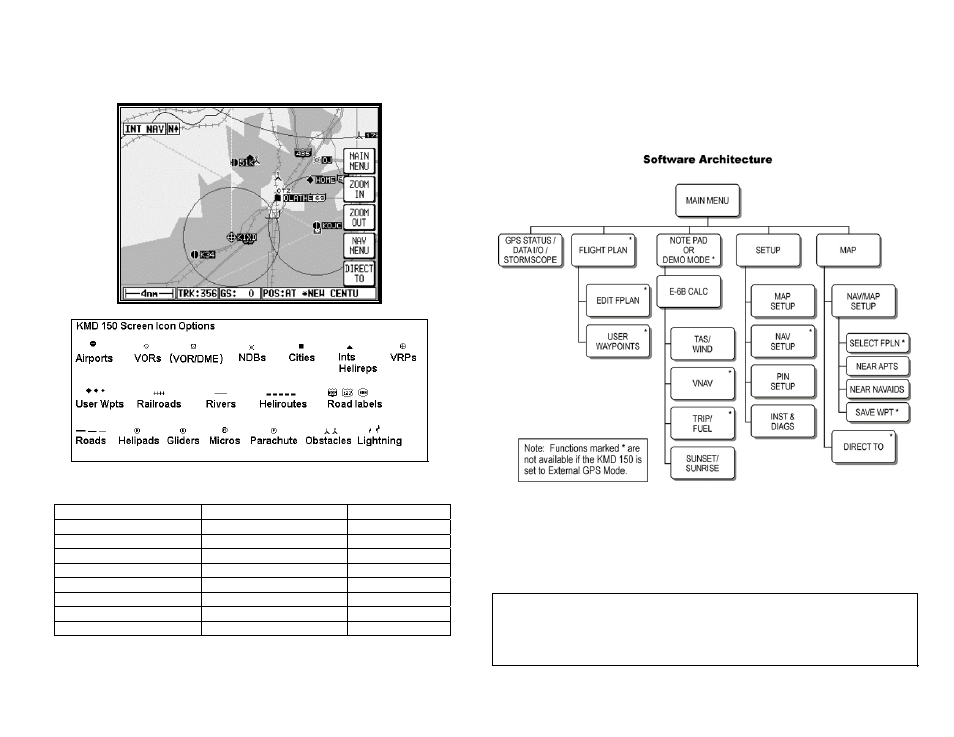

MAP DISPLAY
Terrain and Urban Areas Color Key
ATI Level AMR & PAI Level Color
Urban Areas Urban Areas Light Gray
less than 500 feet less than 1,000 feet Light Green
501 – 1,000 feet 1,001 – 2,000 feet Medium Green
1,001 – 2,000 feet 2,001 – 3,000 feet Dark Green
2,001 – 3,000 feet 3,001 – 5,000 feet Light Brown
3,001 – 5,000 feet 5,001 – 9,000 feet Medium Brown
5,001 – 9,000 feet 9,001 – 13,000 feet Dark Brown
greater than 9,001 feet greater than 13,001 feet White
MENU STRUCTURE
All of the KMD 150 functions can be accessed by pressing the MAIN MENU
key and then selecting the desired function by pressing keys as shown on
the Menu structure diagram:
MAP SETUP - Map orientation, measurement units, language, map
symbology and declutter settings, and other map settings.
NAV SETUP - CDI settings, leg sequencing, and alarm settings.
PIN SETUP Personal Identification Number security settings.
INST & DIAGS - Position logging settings, stormscope configuration,
external/internal GPS selection, GPS Status, output test.
