12
Rev 5 Jul/2004 KGP 560/860 Pilot's Guide

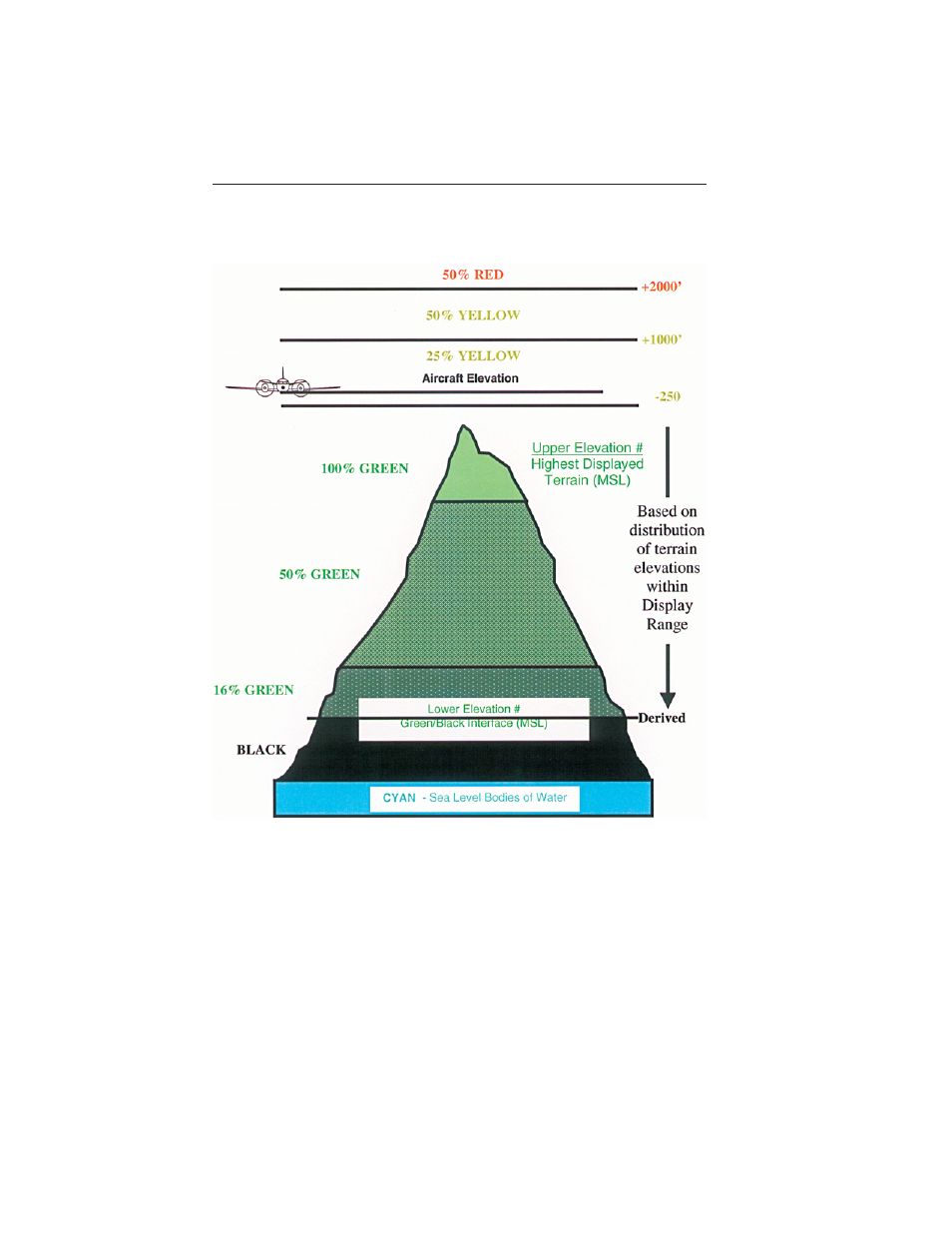

The following figure shows the Terrain Display color patterns when the
aircraft is at higher altitudes, where terrain is a least 250 feet below the
aircraft altitude for the display range selected by the pilot.
The system will adjust colors on the Terrain Display automatically as the
aircraft altitude changes. The Terrain Display also transitions between
the lower altitude “relative” display and the higher altitude “peaks” display
automatically, so no pilot action is required for system operation.
Depending upon display type aircraft interface capabilities, the Terrain
Display can show various presentations of the terrain around and in front
of the aircraft, i.e. a “rose” or 360° compass view, a 1/3 - 2/3 360° view,
90° or 120° “arc” views with or without a vertical profile.
Functions and Features
