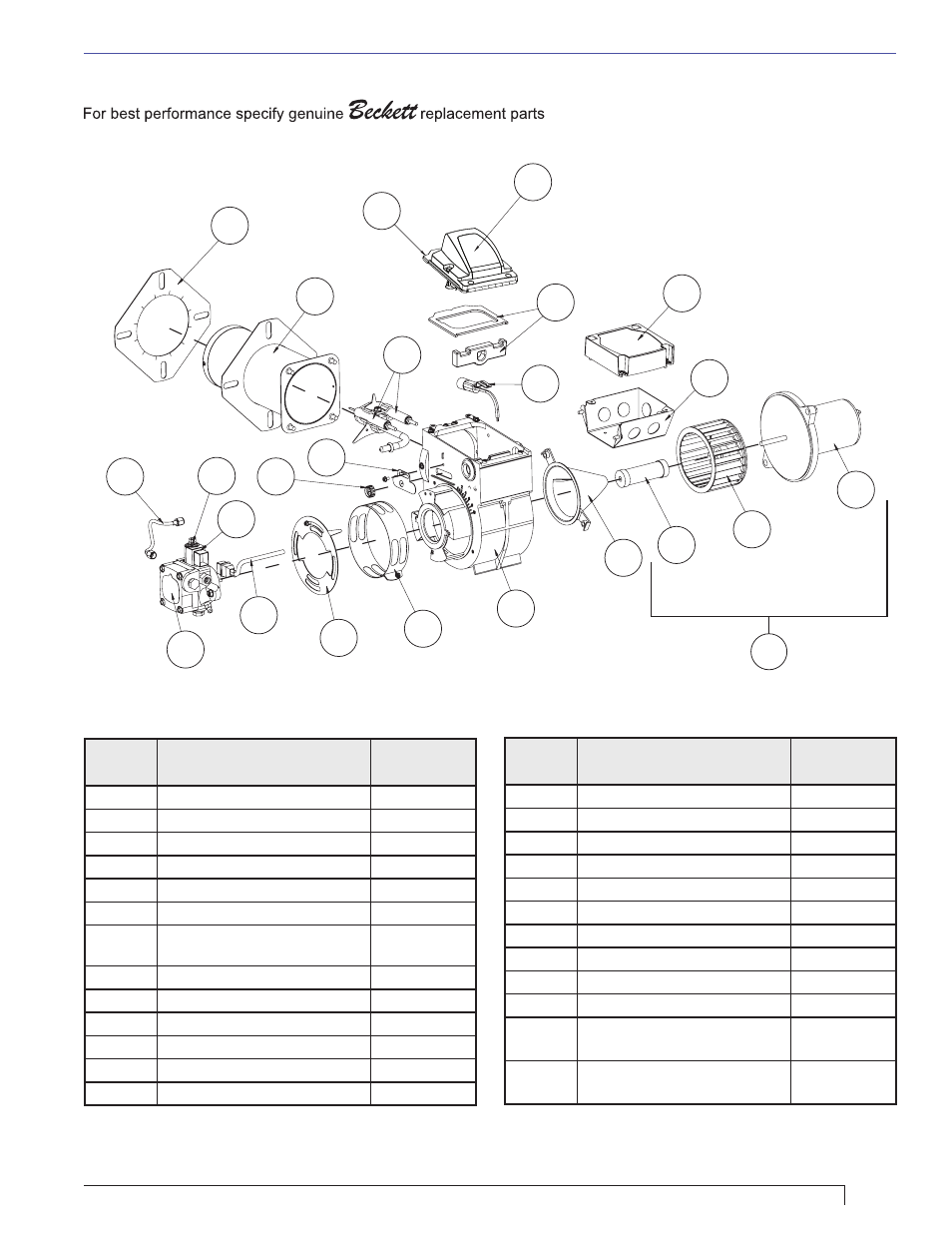

Replacement Parts
Illustration
#
Description
Part#
1
DC Motor
n/a
2
Blower Wheel
2999U
3
Coupling
2140501
4
Air Guide
31231U
5
Burner Housing - Black
5874BKU
6
Air Band
5151501
7
Air Shutter - 4 Slot
Air Shutter - 8 Slot
3709
3494
8
Cord set
21807
9
Pump (CleanCut)
2184402U
10
Valve Stem
21877U
11
12 Volt Coil
21754U
12
8” Copper Tubing
5394
13
Escutcheon Plate Spline Nut
3666
Illustration
#
Description
Part#
14
Escutcheon Plate
3493
15
Electrode Kit over 3-5/8”
578731
16
Cad Cell Detector
7492/7006U
17
Igniter Gasket Kit
51411
18
4X4 Wiring Box Kit
5770
19
Control Kit
7556x-xxxxU*
20
Igniter Assy with baseplate
5218301U
21
Igniter only
5218309
22
Air Tube Ass’y
Specify
23
Flange Mounting Gasket
Specify
24
Motor Kit with Blower Wheel
and Coupling
52145U
Not
Shown
Tune-up Kit for 30 & 35 Air
Tube Lengths
578730
* ‘X’s indicate timing options. Contact Beckett for available part numbers.
