Centro 4000B User Manual

Page 20

1 8

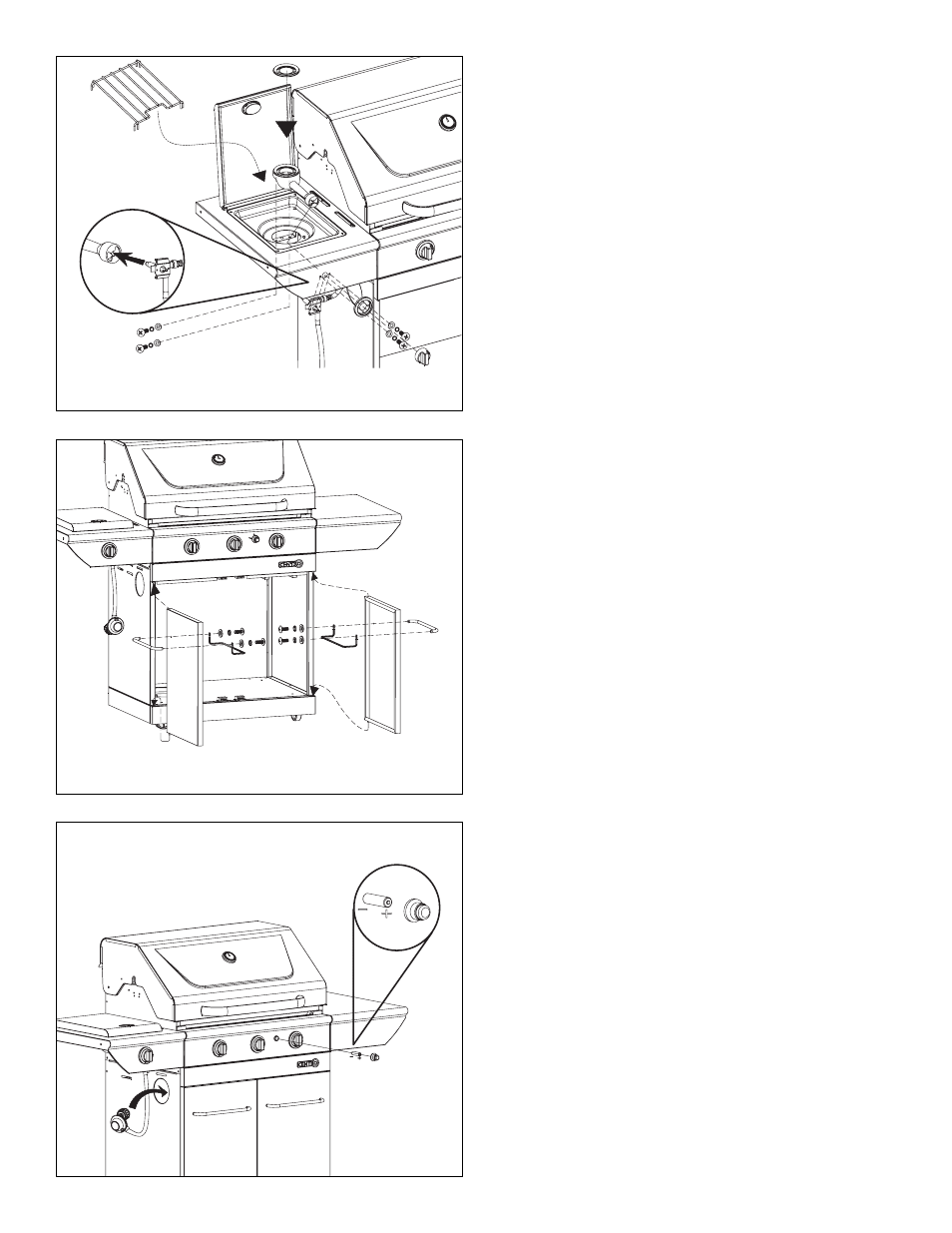

Unscrew igniter cap and place AA battery into Igniter (ED) with

positive end (+) facing outward. Screw igniter cap onto igniter as

shown. Insert the warming tray (DL) as shown.

Remove the two screws and washers from the side burner valve

bracket. Push the side burner valve stem and mount it by using the

screws and washers which just removed, threading through the

side burner control panel and the Bezel (EB). Push the knob (EC)

onto the valve stem with the white line on the knob pointing

upwards. Insert the side burner (FF) into the frame as shown.

Gently slide the burner tube over the orifice of the valve. Secure

the side burner (FF) to its bracket by using hardware No. 6, 7, 8

(x2). Place the side burner grate (FG) as shown.

1. Remove the screws and nuts from the door handles (DR).

Assemble the door Inner bar (DO) and door handle (DR)

to the left door (DP) and right door (DQ) by using the tools

which just removed.

2. Mount the left and right doors into position. Make sure to

align the fixed hinge pin hole in door.
