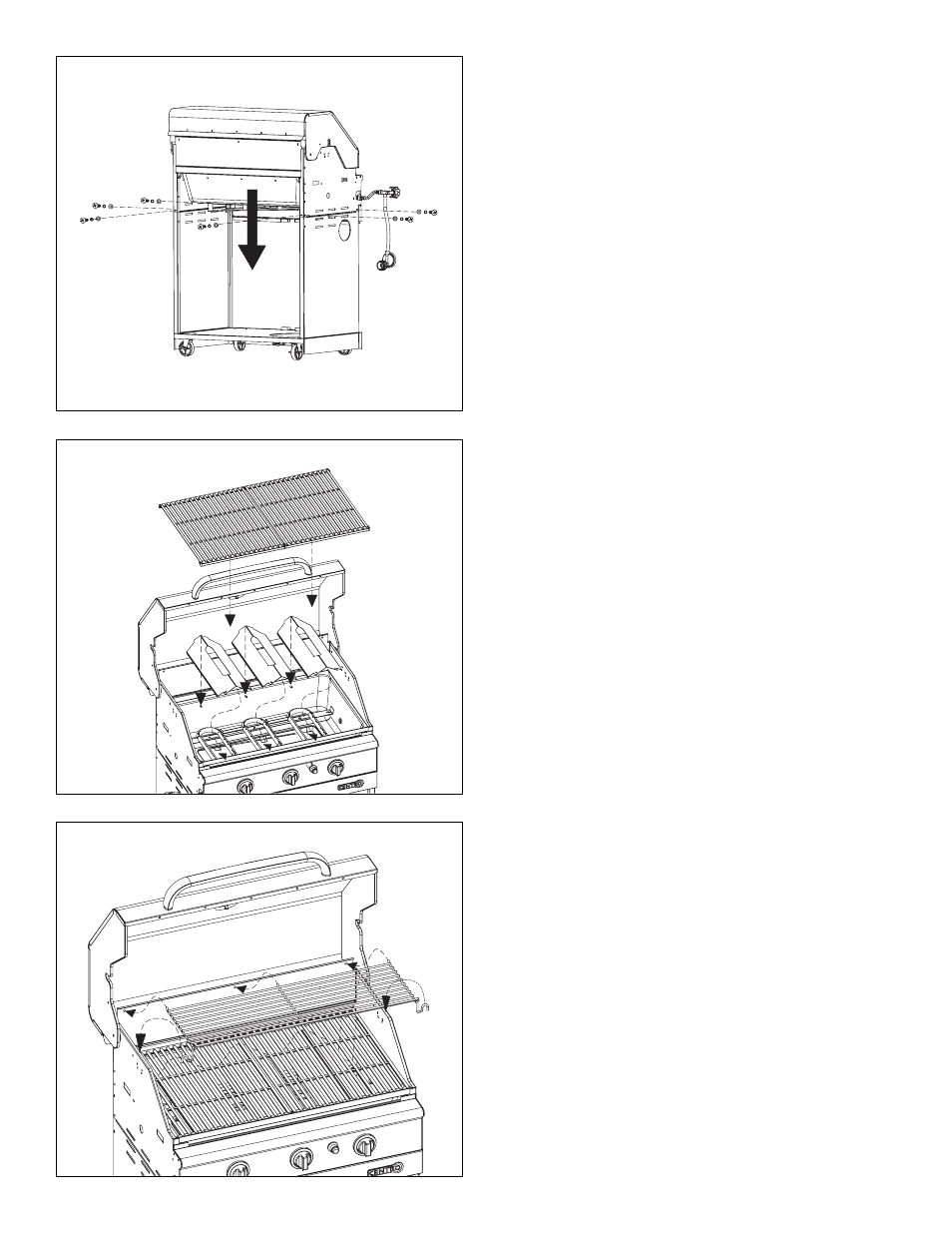

Attach the warming rack (BA) to the inside of the top lid (AA) as
shown. Make sure the two legs of the warming rack clip onto the
edge of the burner box weldment (CA).
4
Assemble the top lid assembly (A) and burner box assembly (C ) to the
cart assembly (D). Attach both Upper Side Panels (DA) & (DB) to both
Lower side Panel (DC) & (DD) using hardware No. 6, 7, and 8 (x6).
5
Open top lid (A) and position the three flame tamers (BC) as shown.
Add the two cooking grates (BB) above the flame tamers.
