1 7

1 7

7

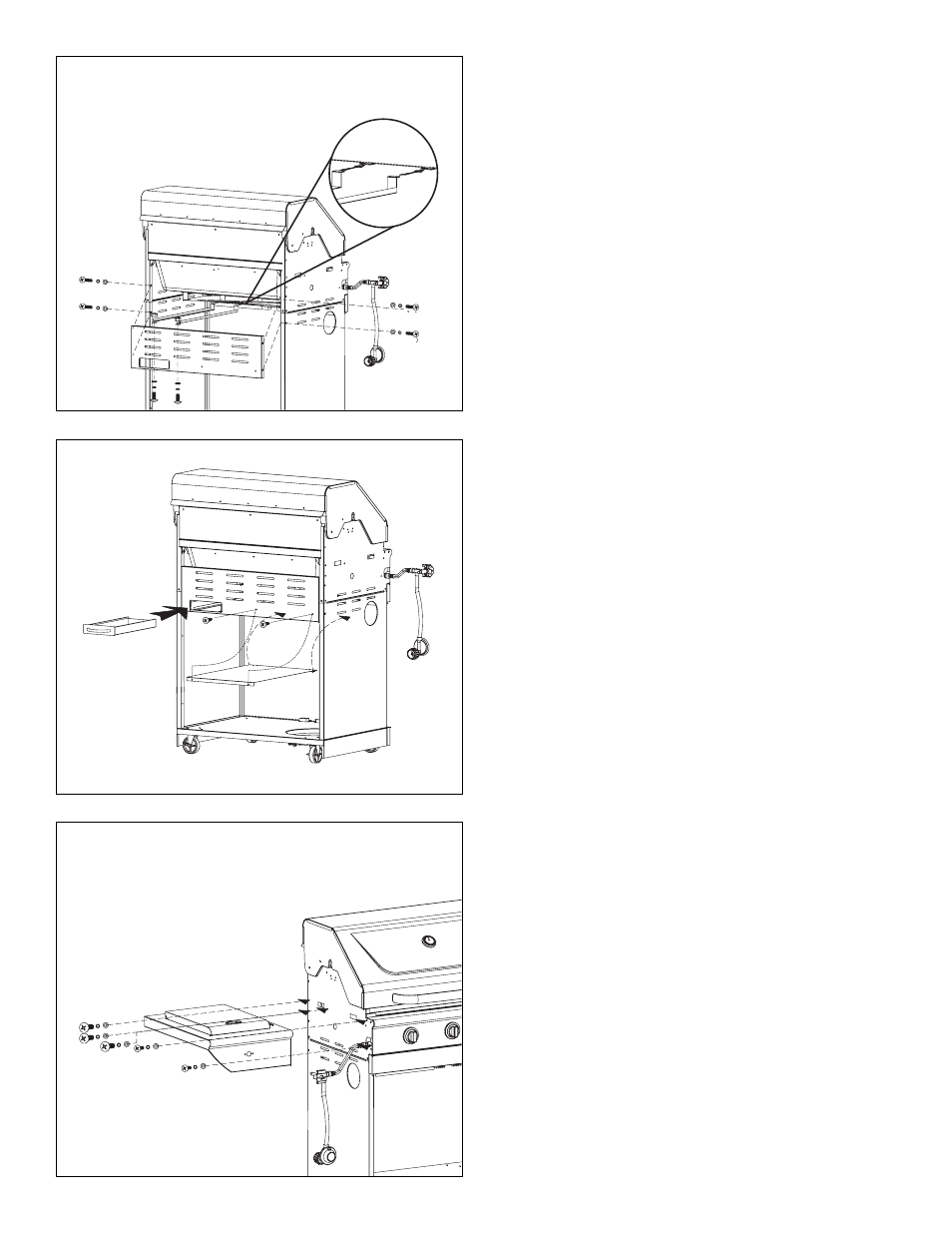

1. Insert grease tray bar-1(DI), and grease tray bar-2 (DJ) into the

holes on inside of the cart assembly as shown.

2. Assemble the rear panel (DE) to the back of the burner box,

using hardware No 1, 3, and 4 (x4).

3. Attach the rear panel to the edge of the grease tray bars,

using hardware 6, 7, 8, and 9 (x2).

8

1. Assemble the gas tank heat shield (DK) to the inside of the rear

panel as shown, using hardware No. 10.

2. Insert the grease tray (DK) into the rear panel as shown.

9

Assemble the side burner assembly (F) to the upper right side panel

(DB), using hardware No., 7, and 8 (x4).
