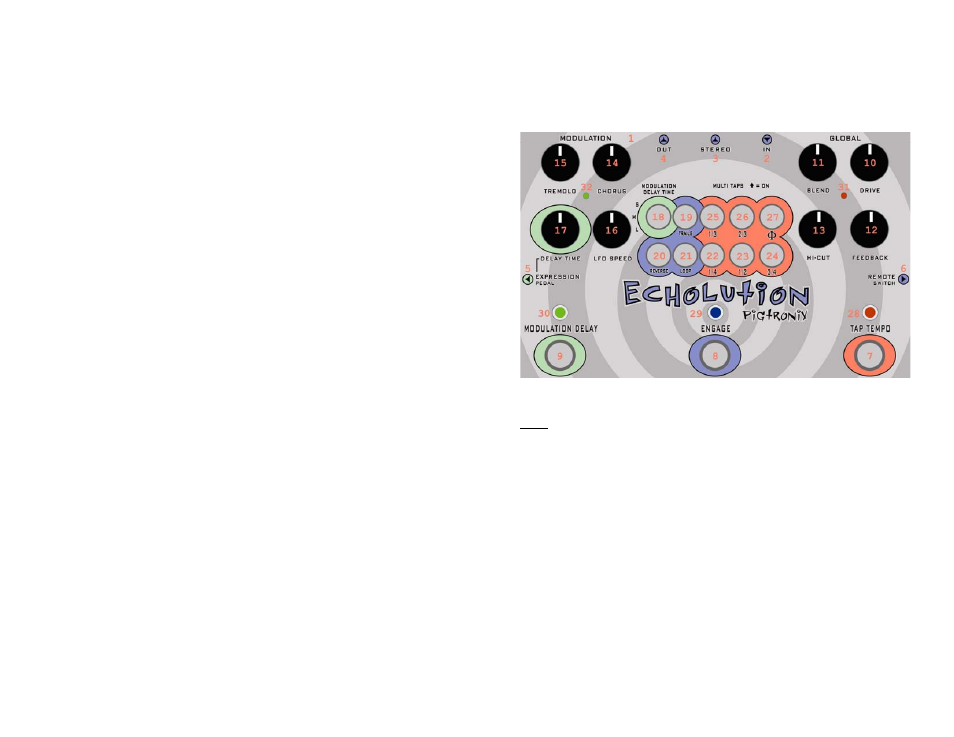

Anatomy of the Echolution:
The Interface:
Jacks: – Plug In and Turn On!
1. DC POWER 15VOLTS – Use only the 15-Volt, negative tip power supply that
came with your Pigtronix Echolution. Using the wrong power supply could
result in a damaged pedal.
2. IN – Plug in your instrument here.
3. STEREO – This is a phase inverted output for use in stereo setups.
4. OUTPUT – Effect output – Plug in your amp, mixer, DI box, etc. here.
5. EXPRESSION PEDAL – This jack allows foot-pedal control of delay time when
the Modulation section is engaged. The Pigtronix 20K Expression pedal is
recommended for this application.
6. Remote Switch – This jack allows the use of a two-button, TRS (stereo)
remote switch for turning the REVERSE and LOOP functions on and off. A
single button, TS (mono) remote switch can be used to activate the LOOP
function only.
