PoE Power/Video/Data UTP Transceiver User Manual

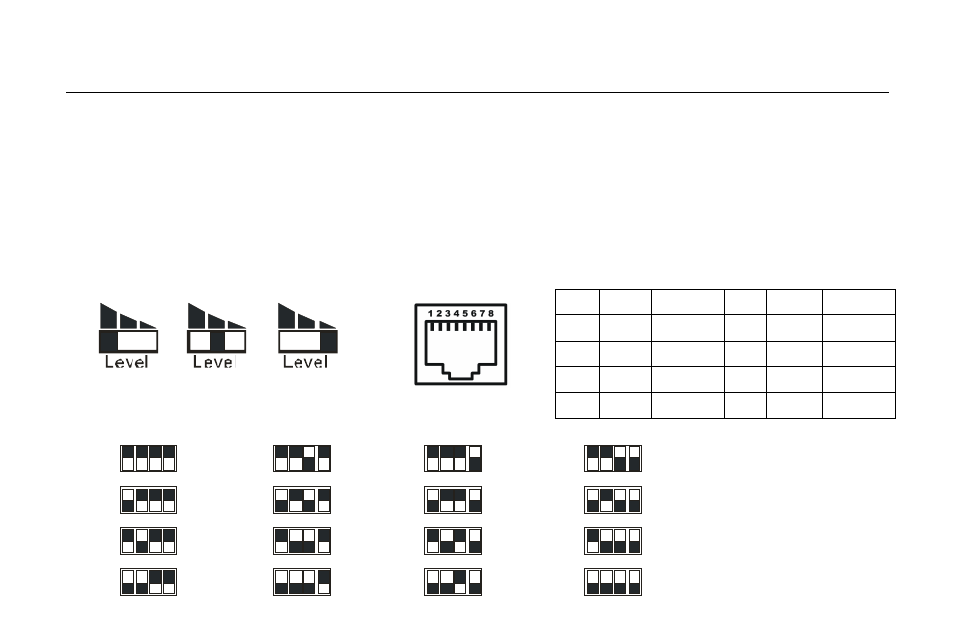

Act ive t ransmit t er gain set
>4000f t 4000-2000f t
0-2000f t
RJ45 jack inst ruct ion
Act ive receiver sharpness set t ing chart (suggest f or best color video t ransmit dist ance)
1000f t
1327f t
1639f t
2000f t
2130f t
2458f t
2622f t
3000f t
3278f t
3442f t
3770f t
4100f t
4261f t
4590f t
4753f t
5000f t
DC36V 0.5A input power, so can use one 100W 36V/3A power adapter for 6 PoE Receiver.
Transceiver setting and indication
PoE PVD passive transceiver no need set gain, they have indication LED. Transmitter have power good LED, Receiver have load/unload
dual color LED.
PoE PVD active transceiver need set gain for different distance, Transmitter have power good (PG)/under voltage (UV) dual color LED,
Receiver have load/unload dual color LED, and they all have video in LED, when video input, LED will turn on.
PIN
Color Function PIN
Color
Function
1
W-O
Video+
5
W-B
Power+
2
O
Video-
6
G
Data-
3
W-G
Data+
7
W-BR
Power-
4
B
Power+
8
BR
Power-
