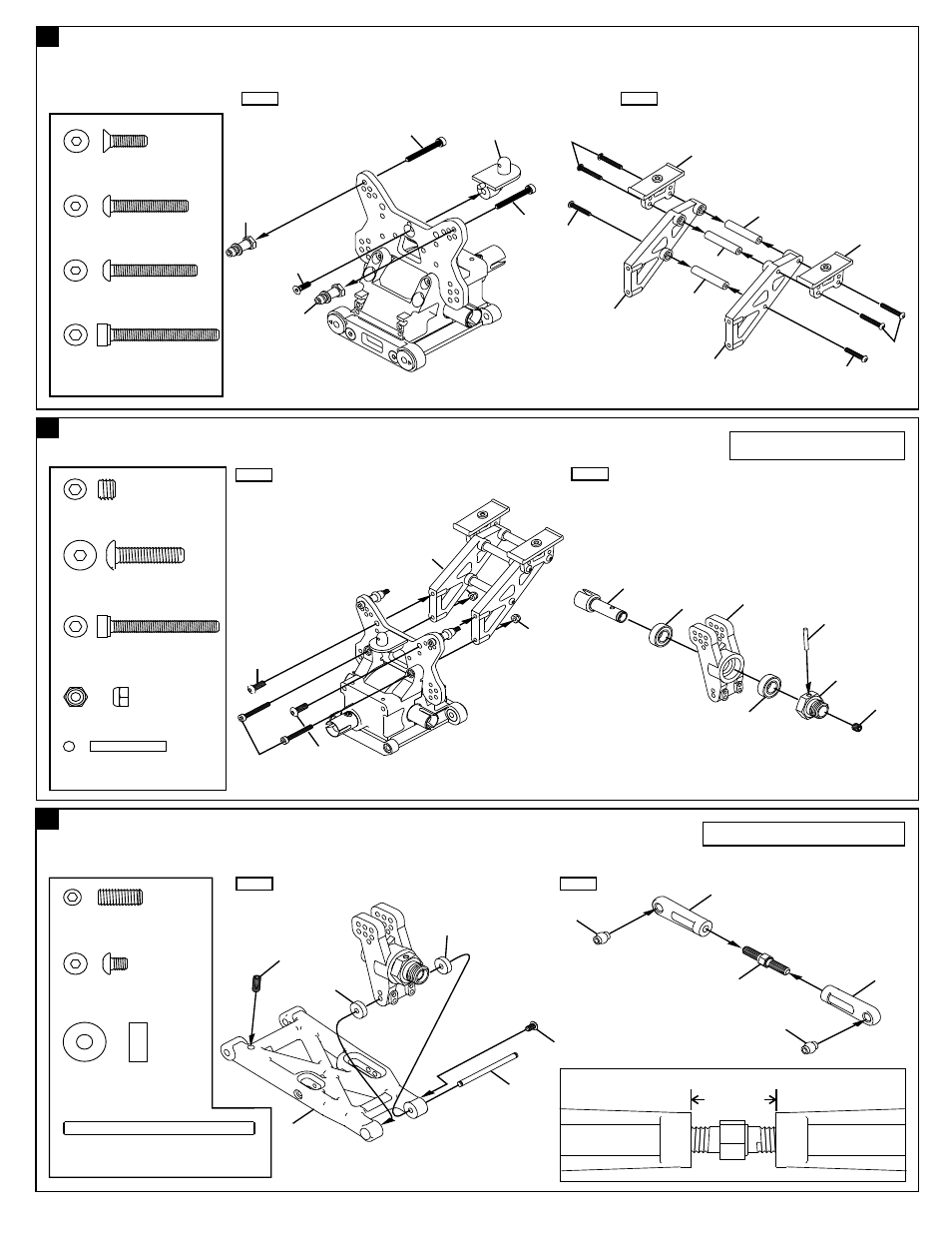

ASSEMBLY OF THE REAR GEAR CASE

Step 1

Step 2

3x20mm

3x18mm

3x20mm

3x18mm

30270

94019
3x10mm
Flat Head Hex Screw

94007
3x20mm
Hex Screw

.....x4

94006
3x18mm
Hex Screw

.....x2

.....x1

ASSEMBLY OF THE WING STAY AND REAR WHEEL HUB

3x25mm

3mm

4x15mm

36082

36053

36081

36055

5x4mm

30656

90018
3x25mm
Cap Screw

94011
4x15mm
Hex Screw

.....x2

94036
5x4mm
Set Screw

.....x2

94041
3mm Nylon Nut

.....x2

36055
2.5x16.8mm
Pin

.....x2

Step 2

Step 1

*Builds two rear wheel hubs for use.

36861

36850

40065

94001
3x5mm
Hex Screw

.....x2

34063
3x9.5x4mm
Plastic Washer

.....x4

34063

4x10mm

34055

3x5mm

34063

ASSEMBLY OF THE REAR WHEEL HUB AND UPPER ARM ROD

Assemble both right and left side.

Approx. 18.9mm

1:1

Step 2

Step 1

36870
4x10mm
Set Screw

.....x2

34055
3x42.6mm Arm Shaft

.....x2

36850

41010

3x10mm

34033

41009

41010

41009

41009
3x28mm
Cap Screw

.....x2
