Step 1
Step 2
* Make 2 for Shocks.

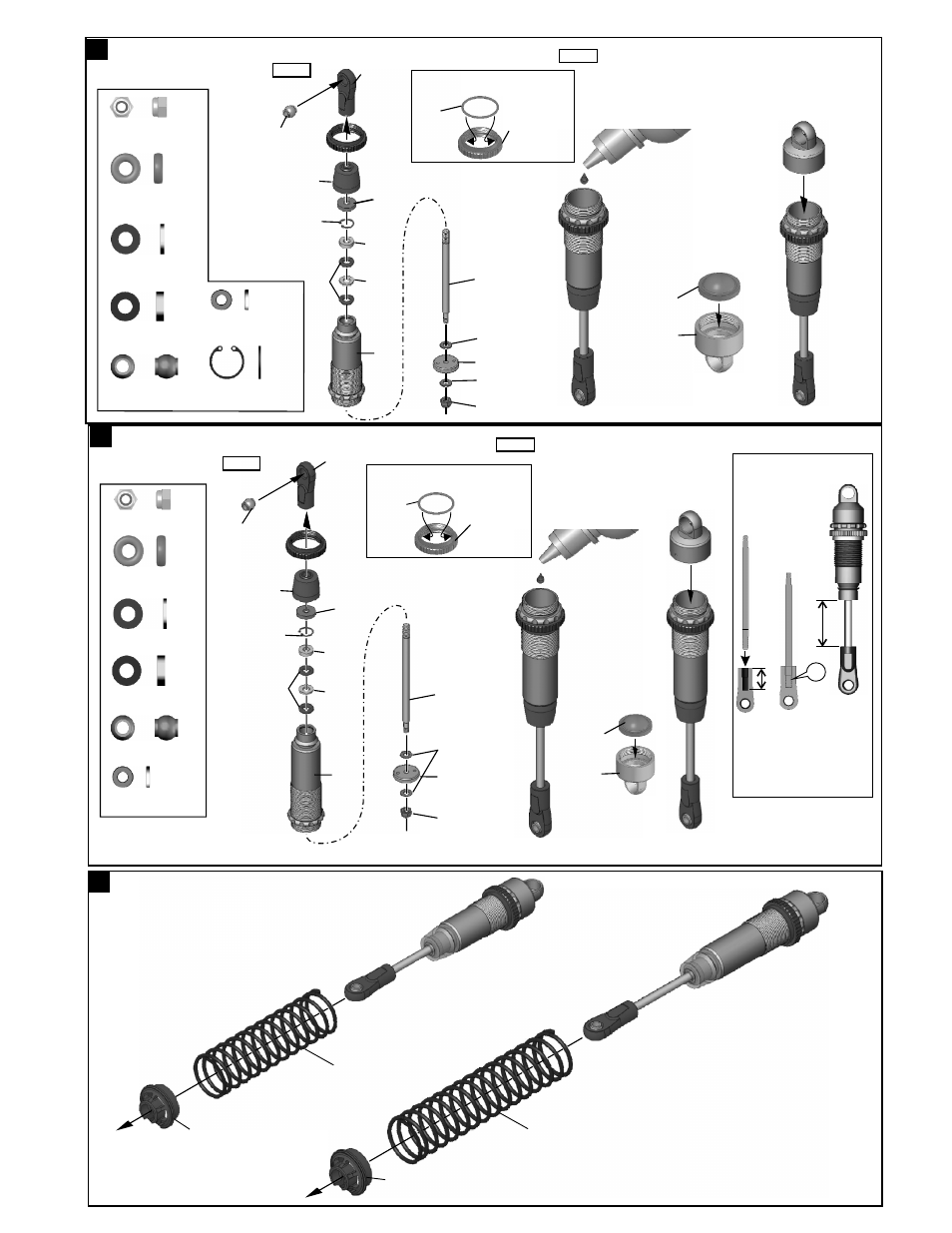

49 ASSEMBLY OF THE REAR SHOCKS
fill the shocks
with oil.
40090
3.5mm
O-Ring
30411
6mm Ball End
40090
7mm
C-Ring
40090
1mm
Washer
40090
2mm
Washer
40630
Dust Felt
40630
Shock Shaft
Dust Covers
40630
Shock Piston
2.5mm
Nylon Nut
2.6x5mm
Washer
40055
Shock Shaft
(Rear)
40630
Spring
Adjuster
40630
15x1 O-Ring
Fit the o-ringinto groove before
assembly.
40631
Shock
Body
47 ASSEMBLY OF THE FRONT AND REAR SHOCKS
40641
Rear Shock
Spring (Blue)
40641
Front Shock
Spring (Blue)
40643
Shock
Holder
40643
Shock
Holder
* Assemble 2 Sets for front. * Assemble 2 Sets for rear.
40643
Shock Plastic
Ball End
(Long)
..........X4
...X2
....X2
40090 2mm Washer
40090 1mm Washer
2.6x5mm
Washer
......X2 40060
2.5mm Nylck Nut
..........X2 30411
6mm Ball End
40090
3.5mm O-Ring
..........X4
OK
37
.5
m
m
CORRECT SHOCK
ASSEMBLY
Carefully screw the shock shaft into
the bottom of the plastic ball end
untill the distance between
the ball end and the shock body is
37.5mm for the front .
N.B. Do not over tighten as the
plastic will strip.
40630
Shock Cap
40640
Pressure Top
1. Pull down piston and
pour oil into shock
cylinder.
2.To remove air bubbles
slowly move
piston up and down.
3. Pull down piston,
attach top loosely
shock oil will
overflow slowly
push piston up
almost to the top
of shock then
tighten cap.
Step 1
* Make 2 for Shocks.
48 ASSEMBLY OF THE FRONT SHOCKS
40630
Spring
Adjuster
40630
15x1
O-Ring
Fit the o-ringinto groove before
assembly.
..........X4
..........X2
..........X2
40090
2mm Washer
40090
1mm Washer
40090
3.5mm
O-Ring
2.6x5mm
Washer
..........X2
40060
2.5mm
Nylock Nut
..........X2
40643
Shock Plastic
Ball End
(Short)
40090
7mm
C-Ring
..........X2
40630
Shock Cap
40090
1mm
Washer
40090
2mm
Washer
40640
Pressure Top
bladder
40630
Shock Piston
2.5mm
Nylon Nut
2.6x5mm
Washer
2.6x5mm
Washer
40054
Shock Shaft
(Front)
Step 2
1. Pull down piston and
pour oil into shock
cylinder.
2.To remove air bubbles
slowly move
piston up and down.
30411
6mm Ball End
fill the shocks
with oil.
40090
3.5mm O-Ring
40090
7mm C-Ring
..........X4
3. Pull down piston,
attach top loosely
shock oil will
overflow slowly
push piston up
allmost to the top
of shock then
tighten cap.
40630
Shock
Body
40630
Dust Felt
40630
Shock Shaft
Dust Covers
30411
6mm Ball End
