Page 18

Step 1

Step 2

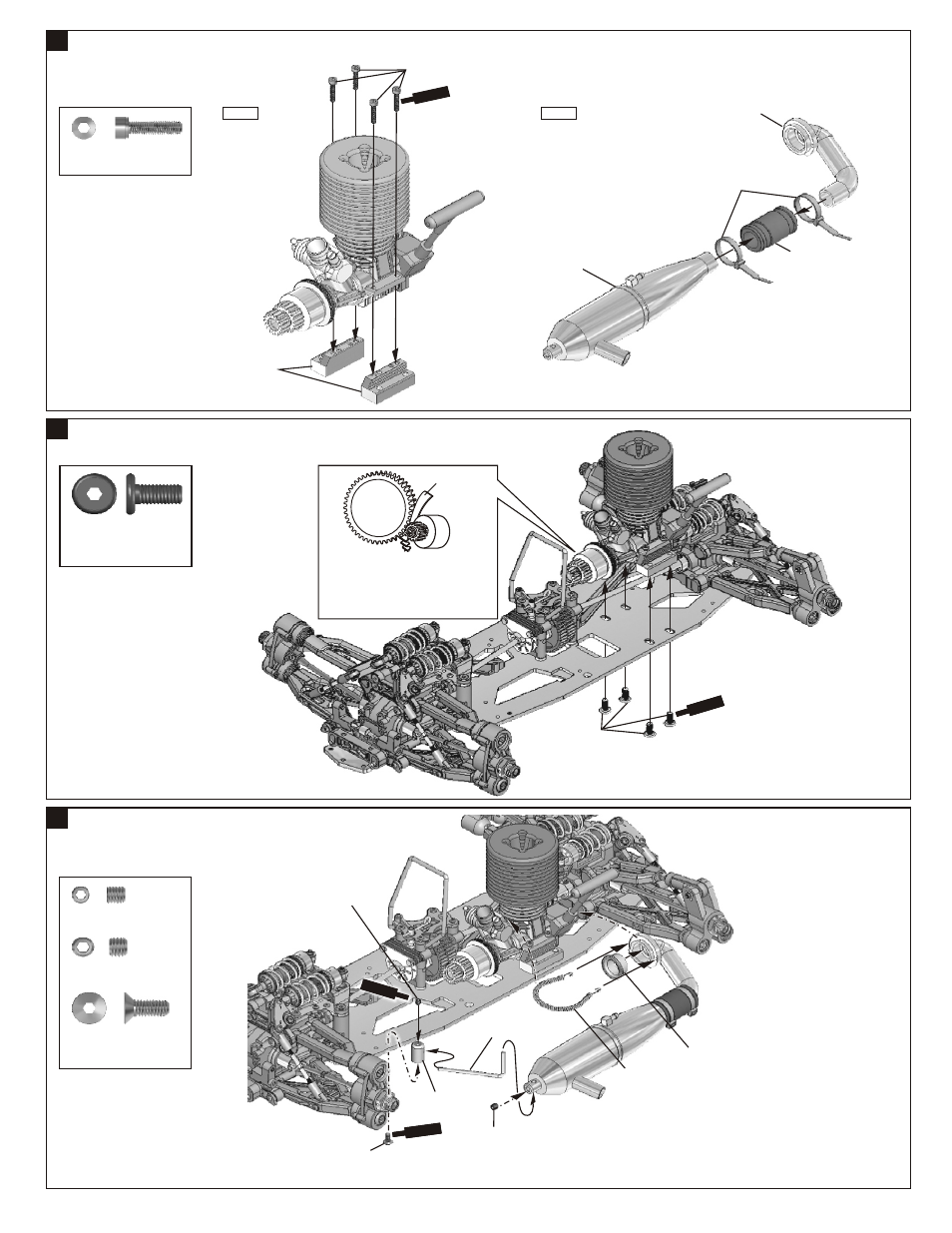

ASSEMBLY OF THE MANIFOLD AND MUFFLER

40674
Engine Mount

3x12mm
Cap Screw

.....x4

30481
3x12mm
Cap Screw

31994
Muffler

31991
Manifold

10185
Silicone Tube

ASSEMBLY OF THE ENGINE ONTO THE CHASSIS

10114
5mm
Engine Mount
Screw

.....x4

5x4mm
Set Screw

10069
1/8 Silicone
Seal

10120
Manifold
Spring

4x10mm
Flat Head
Hex Screw

40050
Muffler Stay
Post

40549
Muffler Stay

4x4mm
Set Screw

10114
Engine Mount
Screw 5mm

*Use note book paper to set gear backlash
between spur gear and clutch bell gear,
applying pressure while retightening the
engine.
*If the space is not correct the spur gear
will be damaged.

ASSEMBLY OF THE MANIFOLD ONTO THE ENGINE

.....x1

94026
4x10mm
Flat Head
Hex Screw

94036
5x4mm
Set Screw

94034
4x4mm
Set Screw

.....x1

S re

Cem

ent

Screw

eme t

Scre

Cem

ent

Note book Paper.

Scre

e e

C m

Nylon Straps
(Middle)
