32 assembly of the rear push rods – OFNA Racing DM-1 RTR User Manual

Page 16

background image

Assembly for both left and right side.

Assembly for both left and right side.

Assembly for both left and right side.

11

Step 1

31

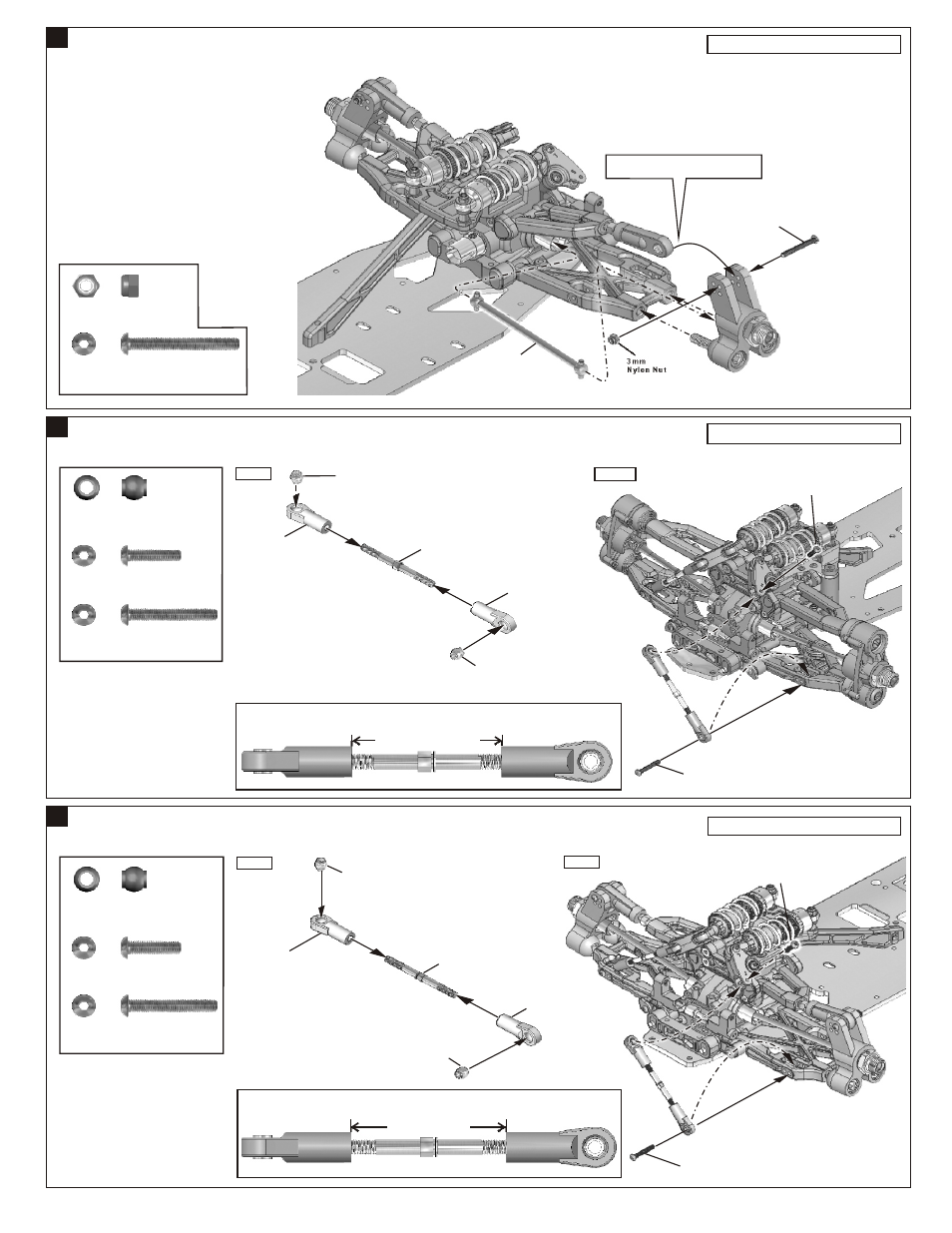

ASSEMBLY OF THE FRONT PUSH RODS

30

ASSEMBLY OF THE REAR SUSPENSION ARMS

Step 2

.....x2

94041
3mm
Nylon Nut

.....x2

94008
3x25mm
Hex Screw

30403
6mmBall

30403
6mm Ball

40712
3.5x48mm
Turnbuckle

3x20mm
Hex Screw

40063
Plastic Ball End

3x12mm
Hex Screw

.....x4

30403
6mm Ball

.....x2

94007
3x20mm
Hex Screw

94004
3x12mm
Hex Screw

.....x2

Step 1

32

ASSEMBLY OF THE REAR PUSH RODS

Step 2

3x20mm
Hex Screw

30403
6mmBall

30403
6mm Ball

40712
3.5x48mm
Turnbuckle

40063
Plastic Ball End

.....x4

30403
6mm Ball

.....x2

94007
3x20mm
Hex Screw

94004
3x12mm
Hex Screw

.....x2

40063
Plastic Ball End

40063
Plastic Ball End

Approx. 34mm

1:1

Approx. 34mm

1:1

3x12mm
Hex Screw

3x25mm
Hex Screw

3mm
Nylon Nut

*Insert the drive shaft before assembly.

34028
Rear
Driver Shaft
