6
BASIC INSTALLATION

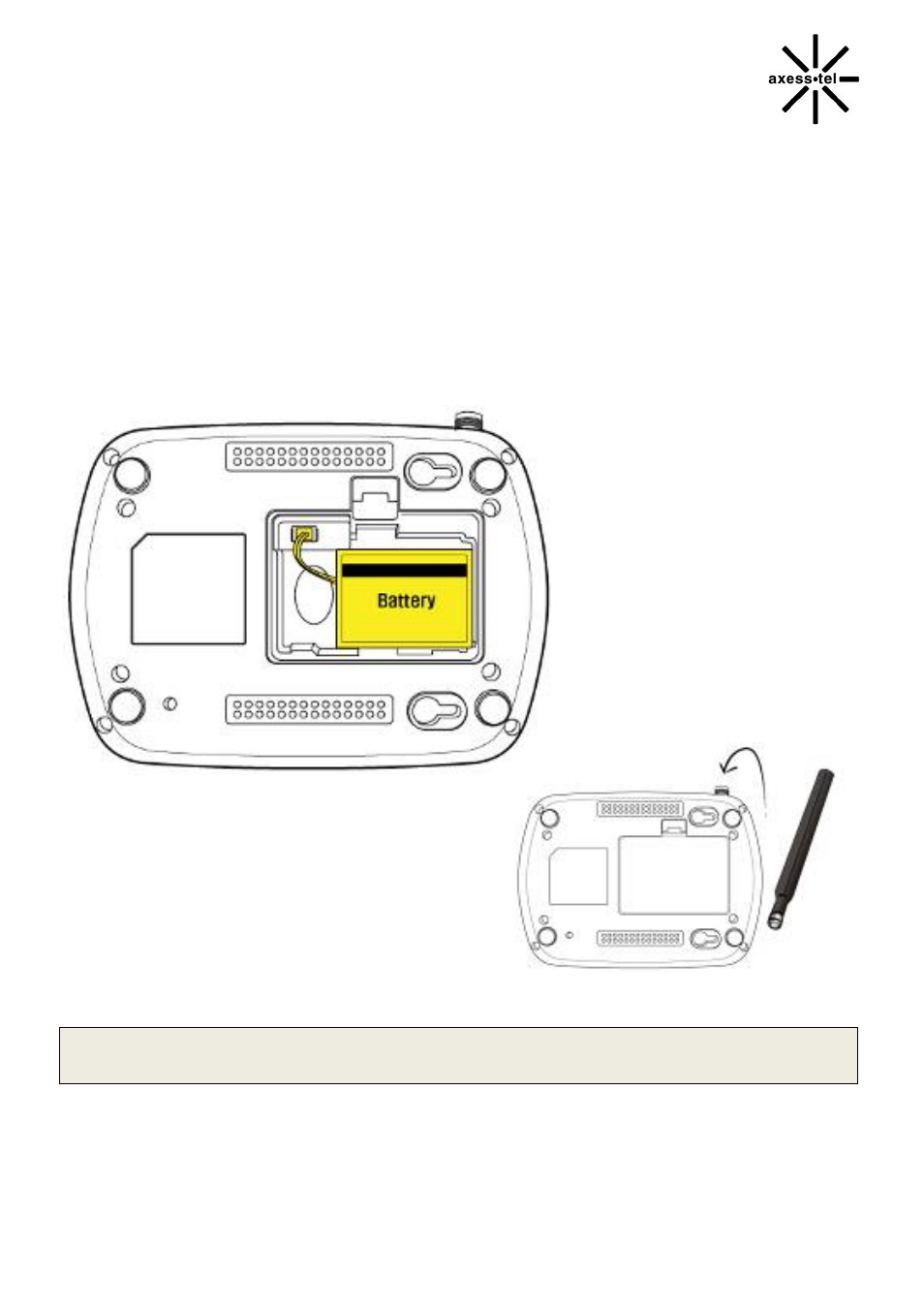

INTERNAL BATTERY INSTALLATION
This TX240G operates by receiving electricity from an electrical outlet or internal battery.
1. Open the battery cover on the bottom side of the terminal.
2. Connect the Battery power cable to the terminal.
3. Insert the battery pack in the right position between the hold bars.
4. Close the battery cover.
SETTING UP THE TERMINAL
1. Connect the antenna by screwing it into
the TNC connector on the back of the terminal.
2. Connect a wired or cordless telephone to the
terminal using the RJ-11 phone cord.
NOTE: Use wired or cordless telephones compatible to FCC part 68 only. Non-compliant
telephones may not work properly.
3. Plug the AC adapter plug into the DC 5V jack of the Terminal.
4. Plug the AC adapter plug into an appropriate electrical outlet.
