A-Lead
A-Lead is available on the 2701, 2702, 2703, and 2706 models. The
A-Lead Connection is done via the LINE1 jack outer pairs.

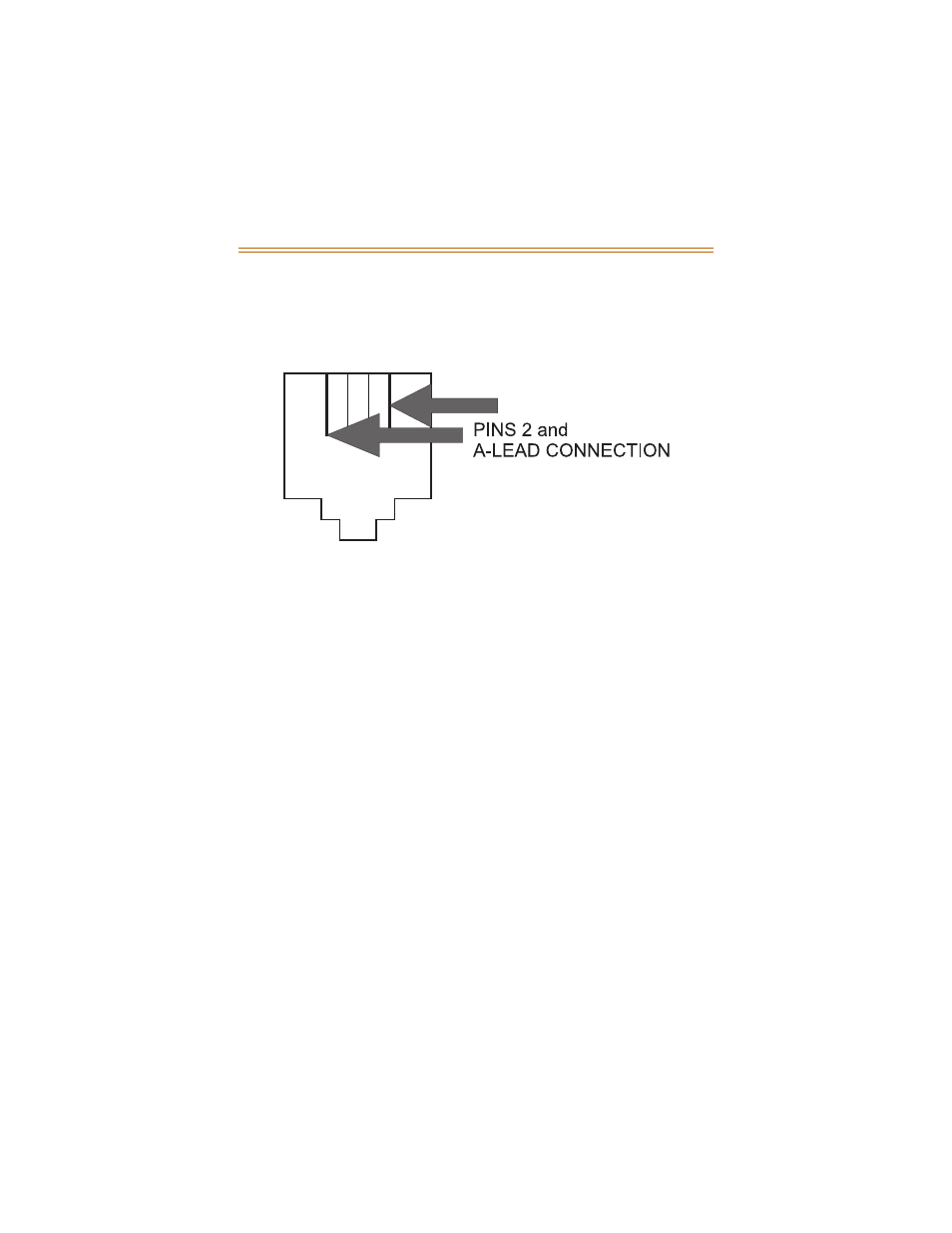

Figure 2: A-Lead Connection
Data Jack
The data jack on the 2704 and 2705 models is wired to LINE2 from
the factory. This can be changed so that LINE1 can be used for data
applications. To change from LINE2 to LINE1, perform these steps:
1. Unscrew the four (4) screws on the bottom of the telephone.
2. Separate the bottom housing from upper housing.
3. Remove wire/plug located on connector CNI2 (LINE2).
4. Replace wire/plug on Connector CN11 (LINE1).
5. Reassemble telephone. Make sure all wires are plugged in
when re-assembling.
