VIS 400-HDP Product Data Sheet
Accessory Connector Tips:
• AC 040B – SC Adapter
• AC 041B – SC/APC Adapter
• AC 042B – FC Adapter
• AC 043B – FC/APC Adapter
• AC 044B – LC Adapter
• AC 045B – LC/APC Adapter
• AC 046B – ST Adapter
• AC 047B – MTP/APC Adapter
• AC 050B – MTP Straight Adapter
• AC 048B – 1.25 mm Universal Adapter
• AC 049B – 2.50 mm Universal Adapter
• AC 100B – ODC Pin Adapter
• AC 101B – ODC Socket Adapter
• AC 105 – ODC Plate
• AC 104B – FC 60-Degree Adapter
• AC 107B – LC 60-Degree Adapter
• AC 109B – SC 60-Degree Adapter
VIS 400-HDP Interface
Specifications
Camera Megapixel – High Definition – CMOS Sensor
Field of View 860 x 640µm
Resolution <1 micron
Lighting Technique Coaxial
Focus System ODM Proprietary External Focus System
Probe Output USB 2.0
PASS/FAIL analysis User-selectable or IEC 61300-3-35-compliant software included
Size Probe – 7” x 1” x .75” (180mm x 25mm x 19mm)
Weight (probe, case and tips) 1.2 lbs (.54kg)
Optical Design Manufacturing, Inc.
143 Lake Street, Suite 1E, Laconia, NH 03246
Phone: (603) 524-8350 FAX: (603) 524-8332
www.odm-inc.com
[email protected]
VIS 400-HDP-PDS01-9.13
Ordering Information
MODEL INCLUDES
VIS 400-HDP
Hard carry case, auto analysis software (InSpec™), 2.5mm, 1.25mm, LC, SC
adapter tips, cleaning kit for up to 500 cleanings
PA 250
Portable Access Device with wireless connectivity to PCs, laptops, tablets and
smartphones

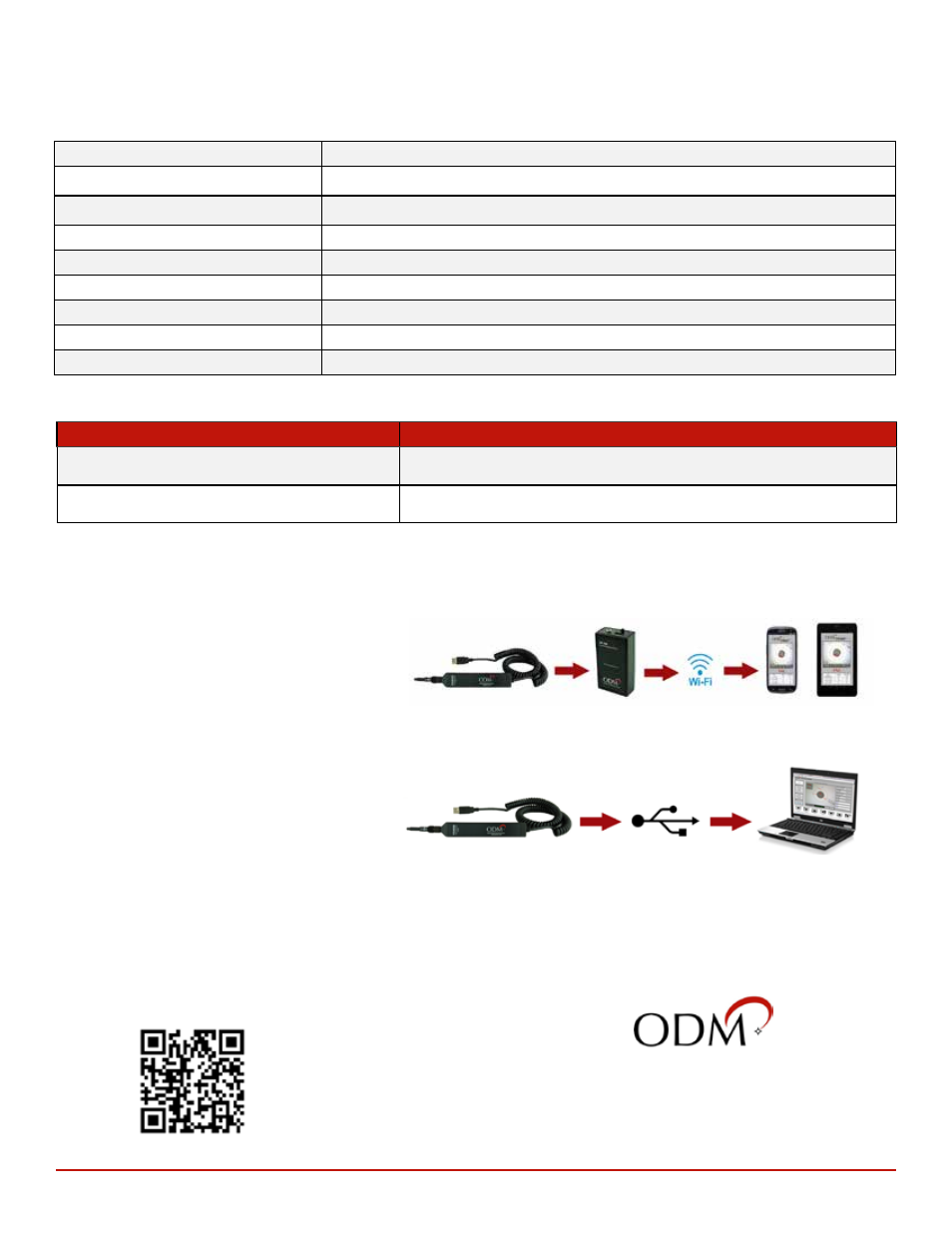

VIS 400-HDP Scope PA 250 Smartphone Tablet
VIS 400-HDP Scope featuring USB connection to Laptop
