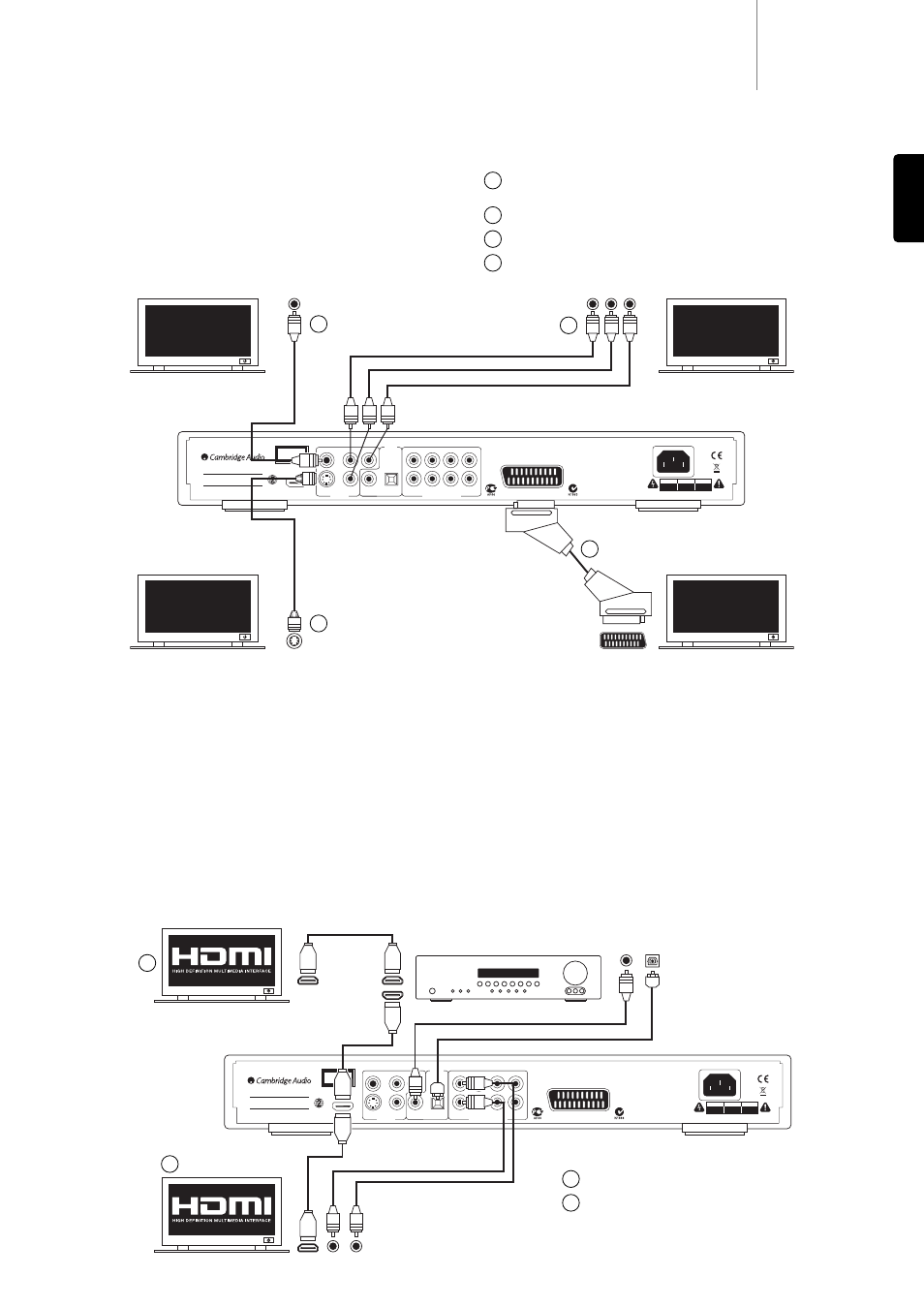

Analog video connections
The DVD99 can output video in both fully digital (HDMI) and analog
(Composite, S-Video, RGB/SCART and Component) formats. If your TV
set supports HDMI then this is the preferred format (see next section).
If your TV set supports only analog video the preferred connection is (in
declining order of quality) Component, then RGB/SCART, S-Video and
finally Composite.
Component - Connect with 75 ohm Component video cables (3RCA-
3RCA).
SCART/RGB - Connect with a dedicated SCART Audio/Video cable.
S-Video - Connect with S-Video cable.
Composite - Connect with single 75 ohm video phono cable (RCA-
RCA).
C SL L / Mixed
SW SR R / Mixed Toslink
Optical S/P DIF
Co-axial
