Cambridge Audio DVD99 - Manual (Page 8)

C SL L / Mixed
SW SR R / Mixed Toslink
Optical S/P DIF
Co-axial
Y
CAUTION
Risk of electric shock. Do not open.
AVIS
Risque de choc electrique. Ne pas ouvrir.
ACHTUNG
Vorm öffnen
des gerätes.
Netzstecker ziehen.
SCART (Composite/RGB/Stereo Audio)
www.cambridge-audio.com
DVD99 DVD Player
Power Rating : 100-240V AC ~ 50/60Hz
Max Power Consumption : 40W
Designed in London, England
Class 1 Laser Product Luokan 1 Laserplaite
Klass 1 Laserapparat
HDMI Out
This product complies with DHHS rules 21 CFR, Chapter 1, Subchapter J, Part 1040 at date of manufacture.
Apparatus claims of US patent nos. 4,631,603; 4,577,216; 4,819,098 and 4,907,093 licensed for limited viewing only.
“DTS” and “DTS Digital Out” is a trademark of Digital Theatre Systems Inc.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories. Confidential Unpublished Works
©1992-1997 Dolby Laboratories. All rights reserved.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference;
2) This device must accept any interference, including interference that may cause undesired operation.
S-Video
Composite Component
SBR
SBL
7.1 Channel Audio Out Video Out
Digital
Outputs
Cr / Pr
Cb
/ Pb
PCM/DTS/ Dolby Digital
8

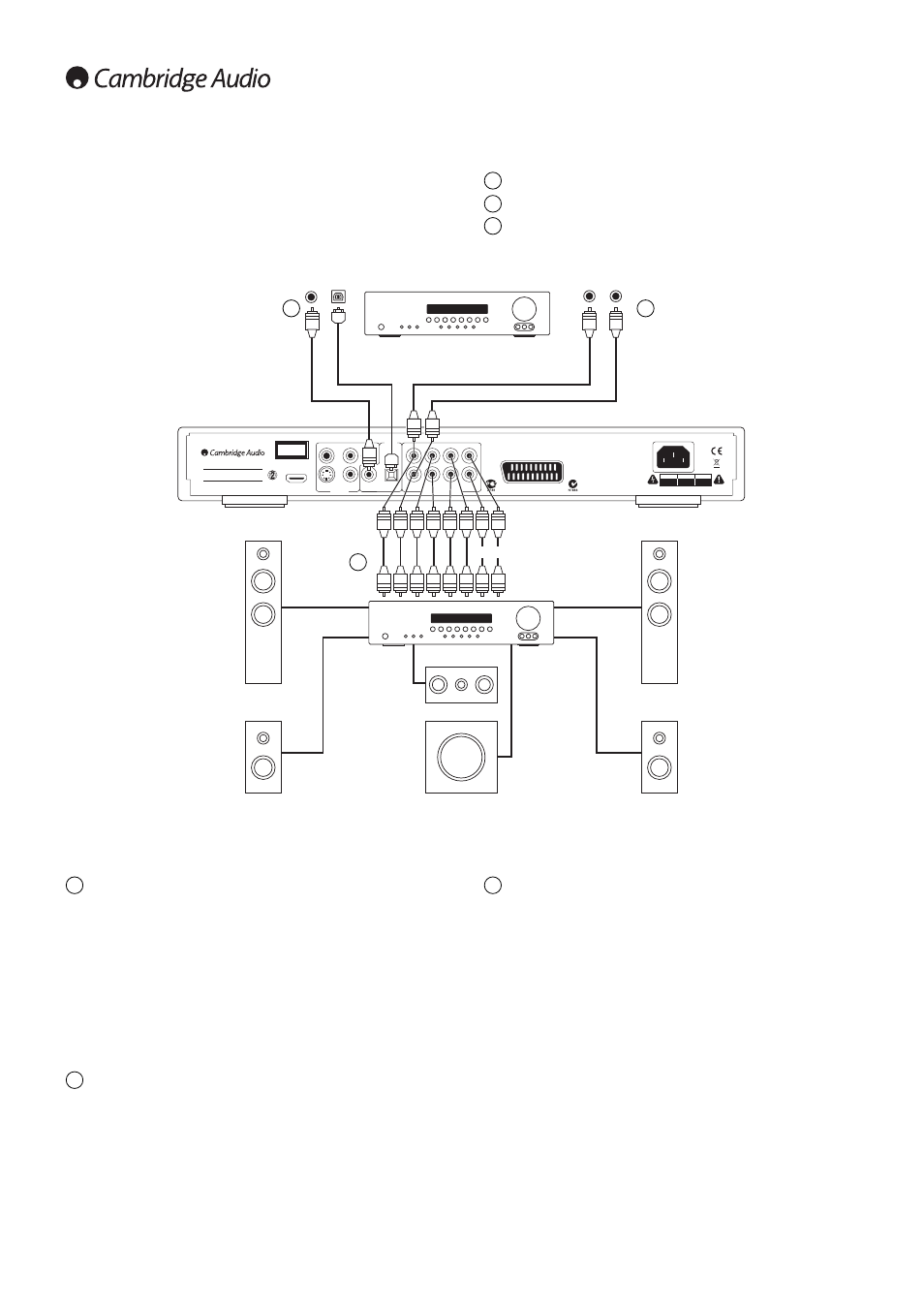

Audio connections
Do not plug in the mains power lead or turn the unit on until all
connections have been made.
Three types of audio connection can be made between the DVD99 and
your stereo/AV system:
Analog Stereo
Digital Audio
Analog 5.1/7.1
AV receiver with
5.1/7.1 analog
inputs
Front right
speaker
Speaker diagram shown in 5.1 channel setup. For 7.1 add two rear speakers.
Surround right
speaker
Front left
speaker
Surround left
speaker
Centre speaker
Subwoofer
1
2
Analog stereo
The analog stereo outputs should be used play back of CDs, DVDs etc in
stereo through a conventional amplifier or AV receiver with analog stereo
inputs.
Analog stereo is also usually the best connection method for listening to
CDs and other stereo discs for best possible sound quality. It is often a
good idea to connect both the analog stereo outputs (for CD playback)
and digital audio outputs (for surround sound decoding) at the same
time.
To connect an analog stereo system to the DVD99, use stereo phono
cables (stereo 2RCA-2RCA).
Digital audio
The digital audio outputs should be used to decode the surround-sound
soundtracks of DVDs with an external AV Receiver (Note: Digital output
must be set to 'RAW' in the Audio setup page). The DVD99 sends an
undecoded audio bitstream to the AV Receiver for decoding into 5.1/7.1
etc.
Either a 75ohm co-axial cable designed for digital audio or a TOSlink
fibre optic cable should be used (only one at a time).
Note: It is also possible to output stereo digital audio from the Digital
Outputs for recording on conventional CD-R/MD etc. machines, see
section on DVD Player setup.
Analog 5.1/7.1
The DVD99 is also capable of decoding Dolby Digital 5.1 soundtracks
itself and outputting these as analog 5.1/7.1 depending on the number
of speakers connected and the setting of Down-mix in the Speaker
setup page in the DVD99 setup menu.
For 5.1, connect to an AV receiver or amplified speaker system, use 6 x
phono/RCA cables.
For 7.1, connect to an AV receiver or amplified speaker system, use 8 x
phono/RCA cables.
3
1 2
3
1
2
3
AV receiver In
OR Phono cable
(2RCA-2RCA)
In
7.1
