3
Description
Index
Nº Part Nº
* SUGGESTED PARTS TO STOCK
Illustrated Parts List
GEM3IF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 WC-5622*
WC-2001
WC-2005*
WC-2025*
WC-2010C
WC-2006*
WC-2102
WC-39747
WC-2007
WC-6417
WC-1901A
WC-1800*
WC-37543*
WC-37544*
WC-39746
WC-37545*
WC-3705*
WC-38151
WC-13426
WC-39747 LID, BLACK PLASTIC GEM-3
CAP, SHIELD W/VENT
WASHER, SHIELD CAP 1/8”
GLASS, GAUGE 8”
SHIELD, GAUGE GLASS ¾” D. x 8”
WASHER, .188ID x .188 THK BOTTOM
GAUGE GLASS ASSEMBLY 8”
LABEL, SIDE GEM3IF CURTIS LOGO
BRACKET, GAUGE GLASS GEM-3
GUARD, FAUCET GEM-3
SHANK, FAUCET W/SHIELD BASE
FAUCET, S’ SERIES NON-LOCKING
KIT, INTELLIFRESH HEATER GEM3IF
KIT, LED LIGHT GEM3IF
LABEL, FRONT GEM3IF CURTIS LOGO
KIT, HYBRID TEMPERATURE CONTROL
KIT, FAUCET S’ SERIES
LABEL, LOCK/UNLOCK GEM3
IF CONNECTOR, FEMALE W/WIRES
LABEL, SIDE GEM-3IF CURTIS LOGO
A daily routine of cleaning the GEM3IF Satellite will maintain the appearance of the unit and ensure great tasting coffee.
To clean the Satellite components, prepare a mild solution of detergent and warm water.
CAUTION – Do not use cleansers, liquids containing bleach, powders or any other substance containing chlorine.
These products promote corrosion and will pit the stainless steel. USE OF THESE PRODUCTS WILL VOID THE
WARRANTY.

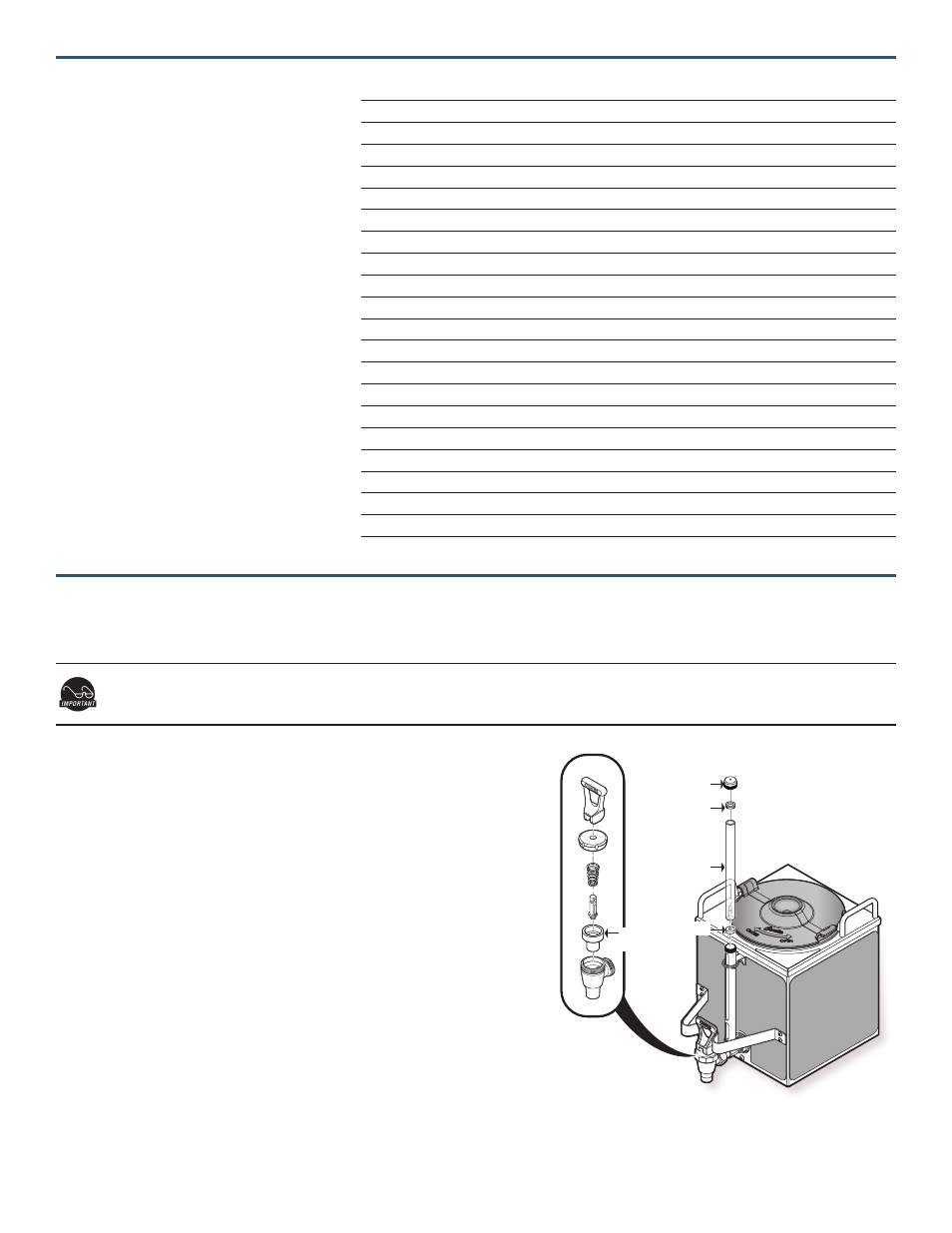

Cleaning the GEM3IF Satellite
DO NOT immerse the Satellite in water or any other liquid.
1. Remove lid from Satellite. Clean the lid at the funnel area with a
spiral brush and detergent solution.
2. Rinse the lid, removing all traces of cleaning solution.
3. Clean inside of the Satellite. Remove coffee residue with the deter-
gent solution.
4. Thoroughly rinse out the Satellite with clean warm water.
5. Unscrew the handle/bonnet assembly and remove it from the dis-
pensing faucet.
6. Inspect the silicone seat cup for wear, cracks, or hardening. If okay,
then leave the seat cup attached on the handle/bonnet assembly.
Soak then wipe clean. Replace the seat cup if damaged.
7. Remove the gauge glass tube by unscrewing the gauge glass cap.
8. Clean the gauge glass tube with a gauge brush soaked with detergent solu-
tion. Soak and wipe the two washers. Rinse with clean water. Dry the parts
and assemble them onto the Satellite. Hand tighten the cap.
9. Clean all parts. Thoroughly rinse with clean warm water.
10. Dry and assemble the parts. Hand-tighten when the assembling.
CAP
WASHER
GLASS TUBE
WASHER
SEAT
CUP
