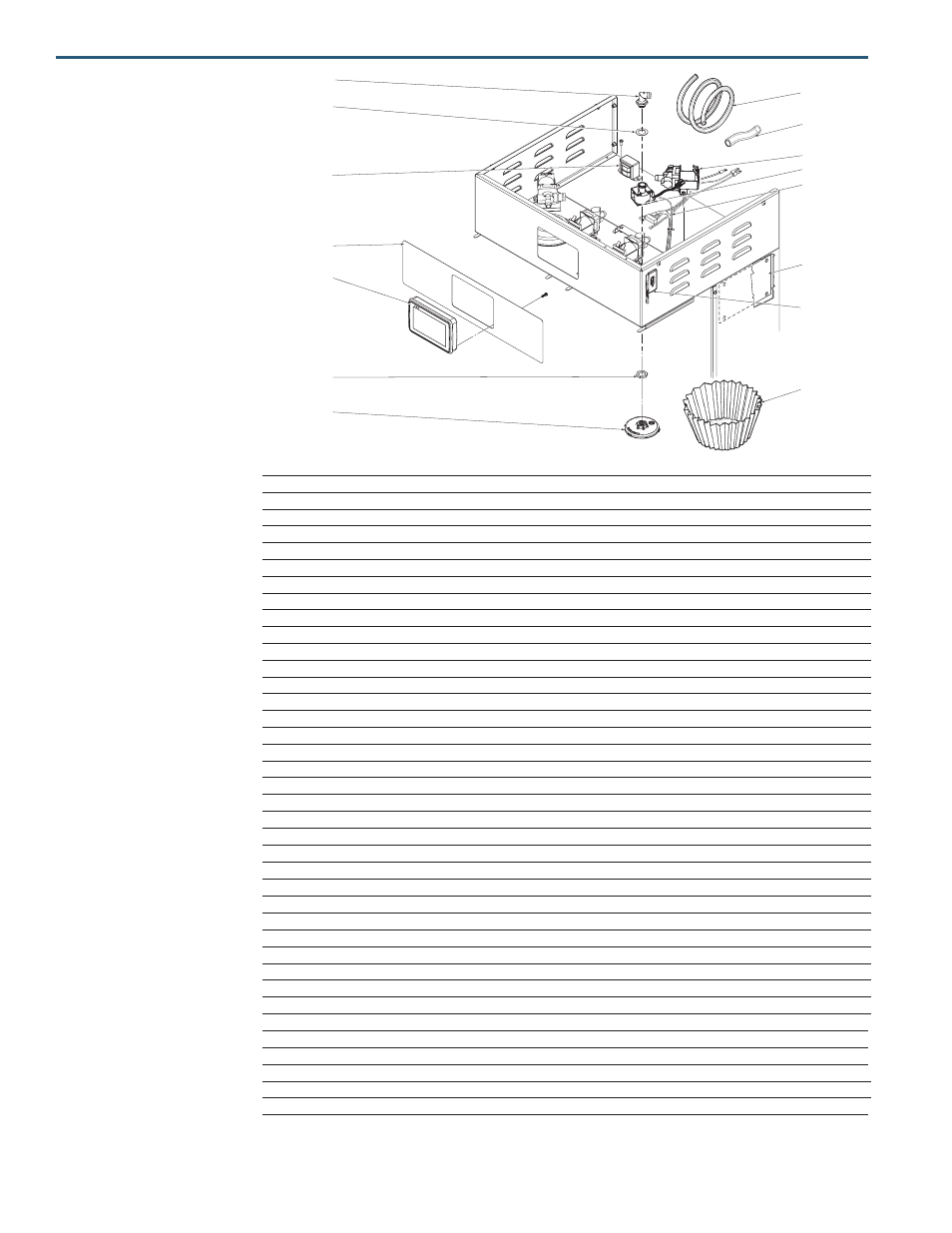

Illustrated Parts
Top Wrap
ITEM NO.
PART NO.
DESCRIPTION
1
WC-5459
COVER, TOP WRAP
2
WC-37008*
KIT, TANK LID ROUND
3
WC-43067*
O-RING, 4-1/2 I.D. x Ø.285 C.S. SILICONE
4
WC-37406*
KIT, LIQUID LEVEL PROBE FAIL SAFE NON-METALLIC ROD
5
WC-37121*
KIT, DUMP VALVE LEFT
6
WC- 844-101*
VALVE, BYPASS 120V-14W NON ADJUSTABLE w/RESTRICTOR (WC-2945)
7
WC-10000
CONTROL MODULE, TOUCH SCREEN G4
8
WC-37308
KIT, BREW CONE GEMINI NON-METAL with “FRESH COFFEE” LOGO
9
WC-4382*
GUARD, SHOCK (HEATING ELEMENT)
10
WC-1438-101*
SENSOR, TEMPERATURE TANK
11
WC-43055*
GUARD, SHOCK RESET THERMOSTAT
12
WC- 522 *
THERMOSTAT, HI LIMIT HEATER DPST 277V-40A
13
WC-1825
FAUCET ASSY, HOT WATER
14
WC-8559
RELAY, SOLID STATE 40A w/INTEGRATED HEATSINK
15
WC-3528
LEG, 4” ADJUSTABLE 3/8-16 THRD STYLIZED
16
WC-14045-101* CURRENT SENSOR ASSY G4
17
WC- 102 *
SWITCH, TOGGLE SPST 15A 125Vac RESISTIVE
18
WC-58037-101 COVER, CENTER WRAP
19
WC-2402P
ELBOW, 3/8 NPT x 3/8 FLARE PLATED
20
WC- 847 *
VALVE, INLET 2 GPM 120V-10W
21
WC-62030
TANK, COMPLETE TP2T W/ULTEM FITTINGS
22
WC-1501
FUSE, HOLDER ASSY w/5A FUSE
23
WC-2977-101
FITTING, SPRAYHEAD ULTEM
24
WC-43089
GASKET, 1.00”OD x .625” I.D. x .030” THK RED SILICONE 40 SHORE
25
WC- 589-101
TRANSFORMER, 120/230VAC - 24VAC 4.8VA w/LEADS & TERMINALS
26
WC-39812
LABEL, OUTER TOUCHSCREEN TP2T CURTIS LOGO
27
WC-4212-02
NUT, 5/8-18 JAM PLASTIC-ULTEM
28
WC-29050*
SPRAYHEAD ASSY, AFS-AMBER
29
WC-37365
KIT, FITTING TANK INLET
30
WC-5310*
TUBE, 5/16 ID x 1/8W SILICONE
31
WC-5350*
TUBE, SILICONE Ø1/2” ID x Ø3/4” OD x 1/8” WALL
32
WC-37122*
KIT, DUMP VALVE RIGHT
33
WC- 442 *
SOLENOID, LOCK BREW CONE RIGHT 120VAC
34
WC-13450
HARNESS ASSY, COMPLETE TP2T10G4/GEMTS10G4/GEMTIF10G4
35
WC-10001*
UNIVERSAL POWER MODULE - G4
36
WC-10008
UNIVERSAL HOST ADAPTER (USB)
37
GEM-6 *
FILTER, 500PK GEM-12/230A
38
WC- 314
POWER BLOCK, 5 STATION
7
26
25
24
23
27
28
30
31
32
33
34
35
36
37
* RECOMMENDED PARTS TO STOCK
