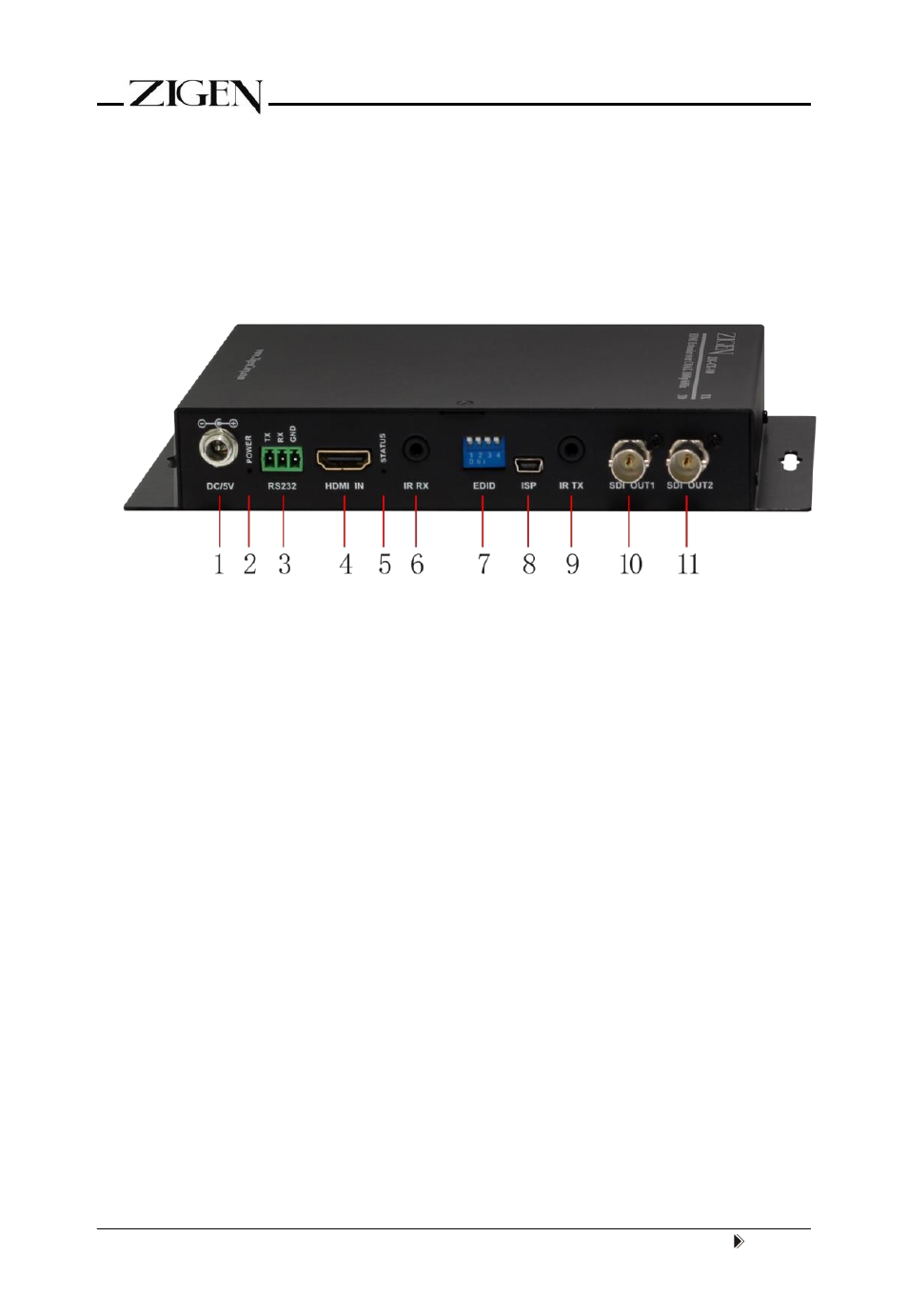

Panel Descriptions
1. ZIG-CX-100 Tx
① Power input 5V/3A DC
② Power indicator
③ RS232 port
④ HDMI input
⑤ HDMI input status indicator
⑥ IR RX
⑦ EDID
⑧ USB Port for firmware upgrade
⑨ IR TX
⑩ SDI output1
⑪ SDI output2
