MOUNTING THE PROJECTOR

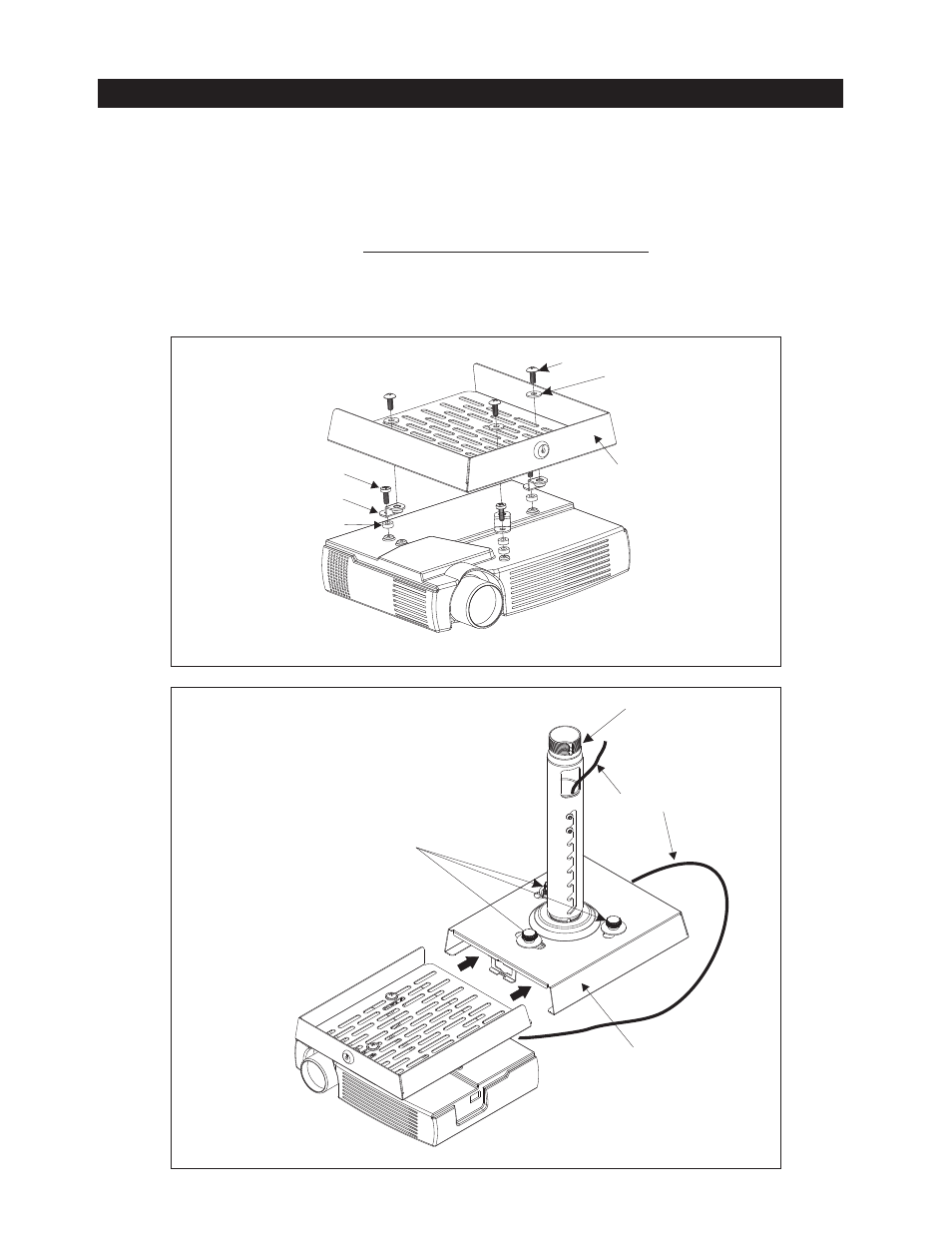

Fig 1
Fig 1a
4
1: Place the projector on a padded surface.
2: Locate the proper screws and washers supplied to fit your projector.
3: Using the brackets (item 5), screws and spacers (item 7), fasten the brackets to the projector. (Only snug screws at this time)
4: Place the lock box base on top of the projector and rotate the brackets (item 5) to align with the slots in the base.
5: Make sure projector is centered below lock box base, to evenly distribute weight. Fully tighten screws to projector.
6: Fasten the projector to the mount using the screw (item4) and washer (item6) through the base and into the threaded bracket
(item 5)
SEE FIG 1
7: Attach projector lock box cover to 1.5” NPT. Be sure to engage security screw into the pipe.
8: Route the wires thru the pipe, down and out the back of the cover to the projector. Slide the base into cover and
secure with the lock.
SEE FIG 1a
9: Adjust the 3 knobs for best viewing.
SEE FIG 1a
NOTE: Do not over tighten the bracket mounting screws as damage to the projector’s internal mounting threads could occur.
Wire management
TELESCOPING PIPE
(SOLD SEPARATELY)
PROJECTOR
LOCK BOX COVER
PROJECTOR
LOCK BOX BASE
Projector screw
Item 5
Item 7
item 4
item 6
Tilt & Yaw
adjustments
