PDR Mounts IWB125 - Manual (Page 7)

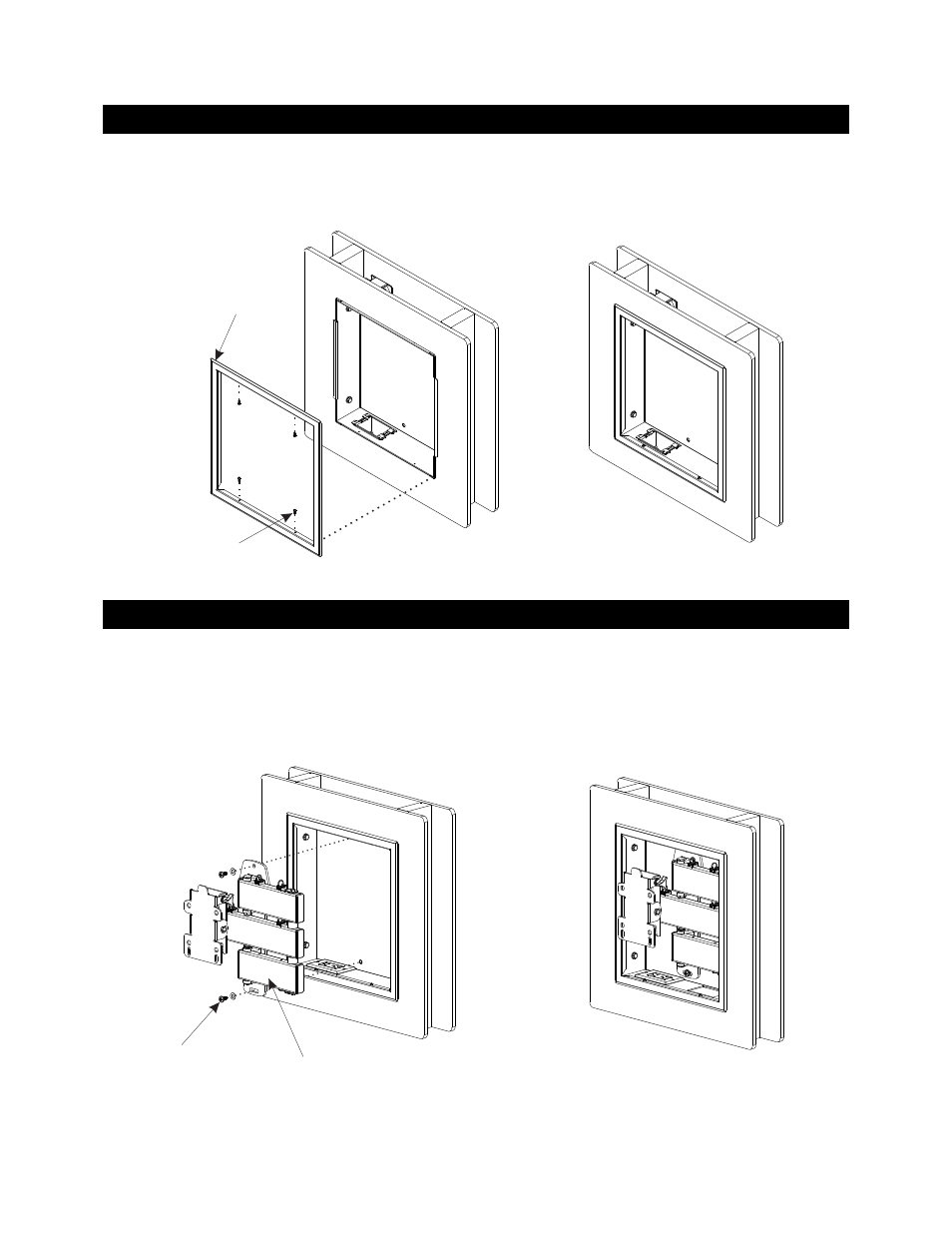

INSTALLING TRIM PLATE
INSTALLING AWM-125 ARTICULATING ARM INTO THE IWB-125 IN WALL BOX
7
1: Place the trim plate onto the in wall box and attach with the sheet metal screws supplied (item 7)
Trim plate
Item 2
Sheet metal screws
Item 7
1: Place the AWM-125 into the in wall box using the two screws and washers supplied (item 5 and 6)
2: Tighten the top screw first and adjust to the level position with the bottom screw
3: Please read the instructions for the AWM125 for further details on the articulating arm
AWM-125
Mounting hardware
items 5&6
