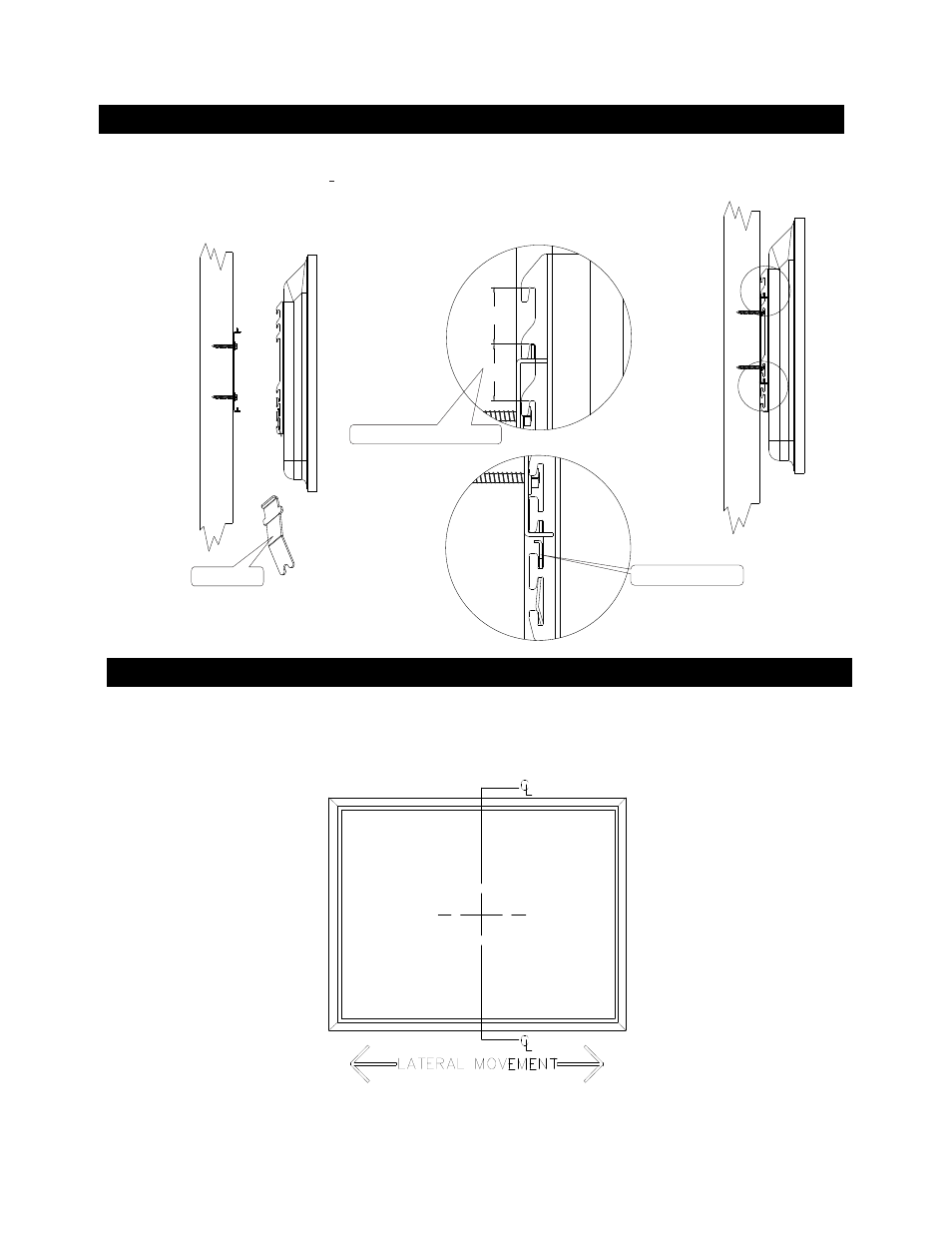

3. MOUNT THE DISPLAY TO THE WALL MOUNT BRACKET
Fig 5
Fig 6
4. Adjust lateral movement
Lateral Movement:
4
Fig 7
Once the display on the wall is complete you can still move the display left to right to optimize the final viewing position, by gently sliding the unit on the wall
bracket. The adjustment distance will vary depending on the display model being installed.
Fig 7
11/2;"
11/2;"
Gravity lock location Gravity lock ( C)
Place the gravity locks ( C) into the proper height slot you will be using
Lift the display with the brackets A attached, onto the wall plate. See Fig 5
Position the hooks on bracket A to the wall plate B . See Fig 5 & 6
Make sure the display brackets engage the rails on the wall mount bracket (B) See Fig 6.
To remove the display push the gravity lock tap towards the wall and lift the panel up and out. This may require two people to preform.
HEIGHT ADJUSTMENT
