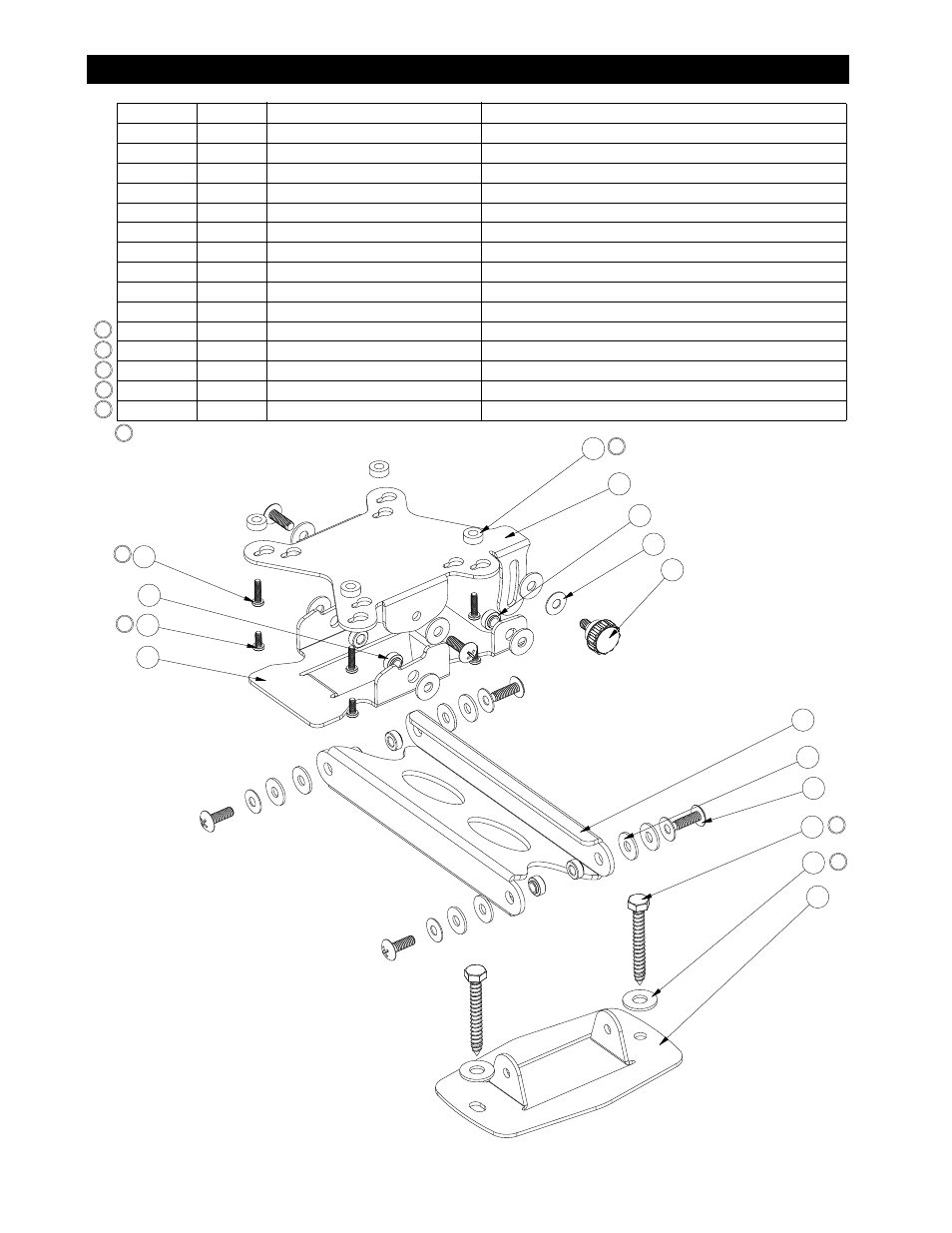

PARTS LIST
3
ITEM NO. QTY PART NUMBER DESCRIPTION
1 1 AM-0088 SINGLE STUD WALL ATTACHMENT
2 1 AM-0089 SINGLE TUBE SINGLE STUD MOUNT
3 1 AM-0086 TILT PLATE MOUNT
4
6 SL-0420-1-ZI PEM SL-0420-1-ZI 1/4-20 LOCKING CLINCH NUT 5
1 PDM-0021 PEM S-0420-1 ZI 1/4-20 CLINCH NUT 6
14 PDM-0008 PLASTIC WASHER 7
6 TH-E-25-75-00 1/4-20 X 3/4 TRUSS HEAD PHILIPS MACHINE SCREW 8
5 K0637-A-032 DISC SPRING BELLEVILLE DISC SPRING 9
1 PDM-0037 BLACK PLASTIC KNOB 1/4-20 X 1/2 STUD 10
4 PDM-0049 M4 X 16MM PAN HEAD PHILIPS MACHINE SCREW 11
2 PDM-0014 5/16" X 2 1/2" LAG BOLT 12
2 PDM-0015 5/16" X 7/8" STEEL FLAT WASHER 13
4 PDM-0010 PLASTIC SPACER 14
4 PMCW50-028 M4 X 10MM PAN HEAD PHILIPS MACHINE SCREW 15
1 AM-0085 VESA MOUNT
14
11
5
15
3
4
6
9
10
2
7
8
12
13
1
M
M
M
M
M
M
M
M
M
M
M
= Mounting hardware
