31

MK-100

MAINTENANCE

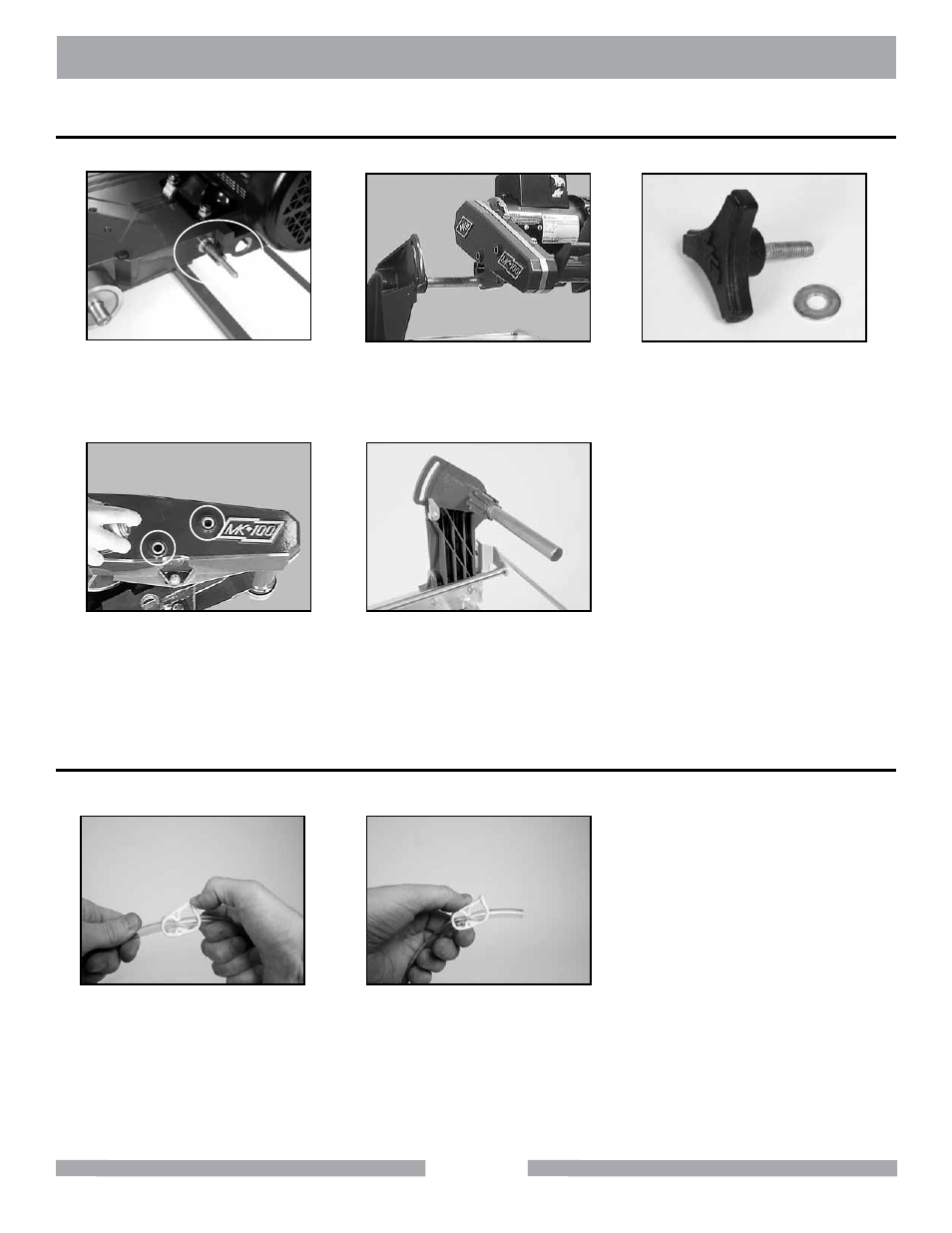

Monthly Maintenance Cont.

(G)

Remove the Blade Guard.

Lubricate the Blade Guard

Pivot Shaft.

(H)

Remove the Cutting Head (Cut-

ting Head Adjustment pg 25).

(I)

Lubricate the threads on the

Cutting Head Adjustment

Knob.

(J)

Lubricate the Cutting Head

Adjustment Knob

retaining holes.

(K)

Lubricate the Cutting Head

Pivot Shaft.

If flow to the diamond blade requires adjustment, perform the following actions.

Flow Adjustment

(A)

Increase cooling flow

by releasing the Flow

Adjusting Clamp.

(B)

Reduce cooling flow by

pressing down on the Flow

Adjusting Clamp.

NOTE:
