27
For small tiles (6" tile or smaller)
the Cutting Head should be
in the rear pivot hole and the
Motor Post should be in the
forward post retaining hole.
(C)
Move Cutting Head Stop
to down position.
(D)
Install the Cutting Head onto
the front pivot hole.

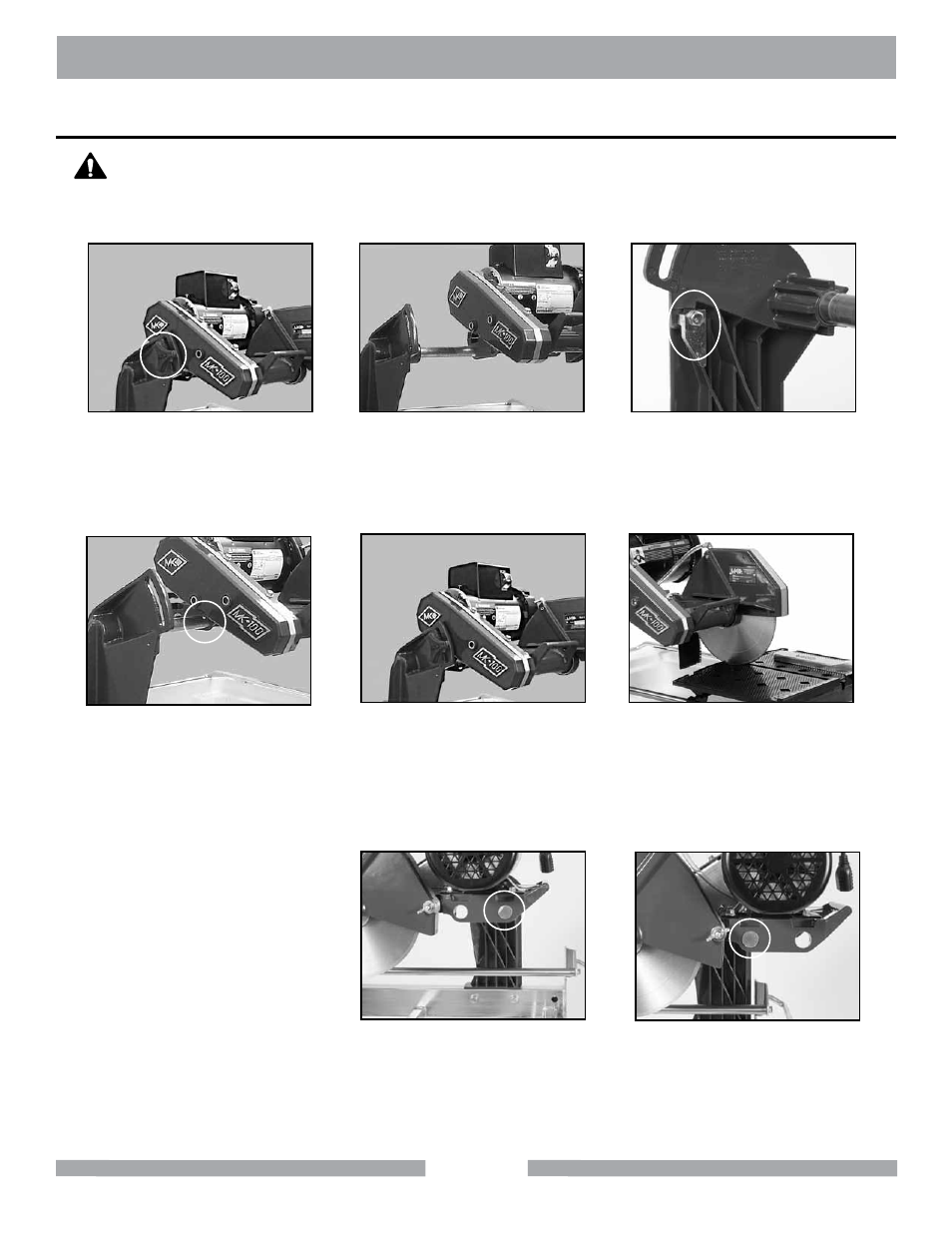

Adjusting the Cutting Head
The Cutting Head is heavy. When loosening the Cutting Head Adjustment Knob,
the Cutting Head will pivot down unless held. Care must be used when changing
the position of the Cutting Head.
CAUTION
(A)
Remove the blade. Support the
Cutting Head and then remove
Adjusting Knob.
(B)
Remove the Cutting Head from
the rear pivot hole.
(E)
Install the Adjusting Knob.
MK-100 CUTTING HEAD ADJUSTMENT
For maximum cutting length,
the Cutting Head should be
in the front pivot hole and the
Motor Post should be in the
rear post retaining hole.
(F)
Install Diamond Blade. Set
cutting depth approx. 1/4 to 1/2
inch below the surface of the
Movable Cutting Table.
NOTE: Move Cutting Head
Stop in upward
position when using
rear pivot hole and
in the down position
when using front
pivot hole.
