MK Diamond MK-100 - Manual (Page 28)

28

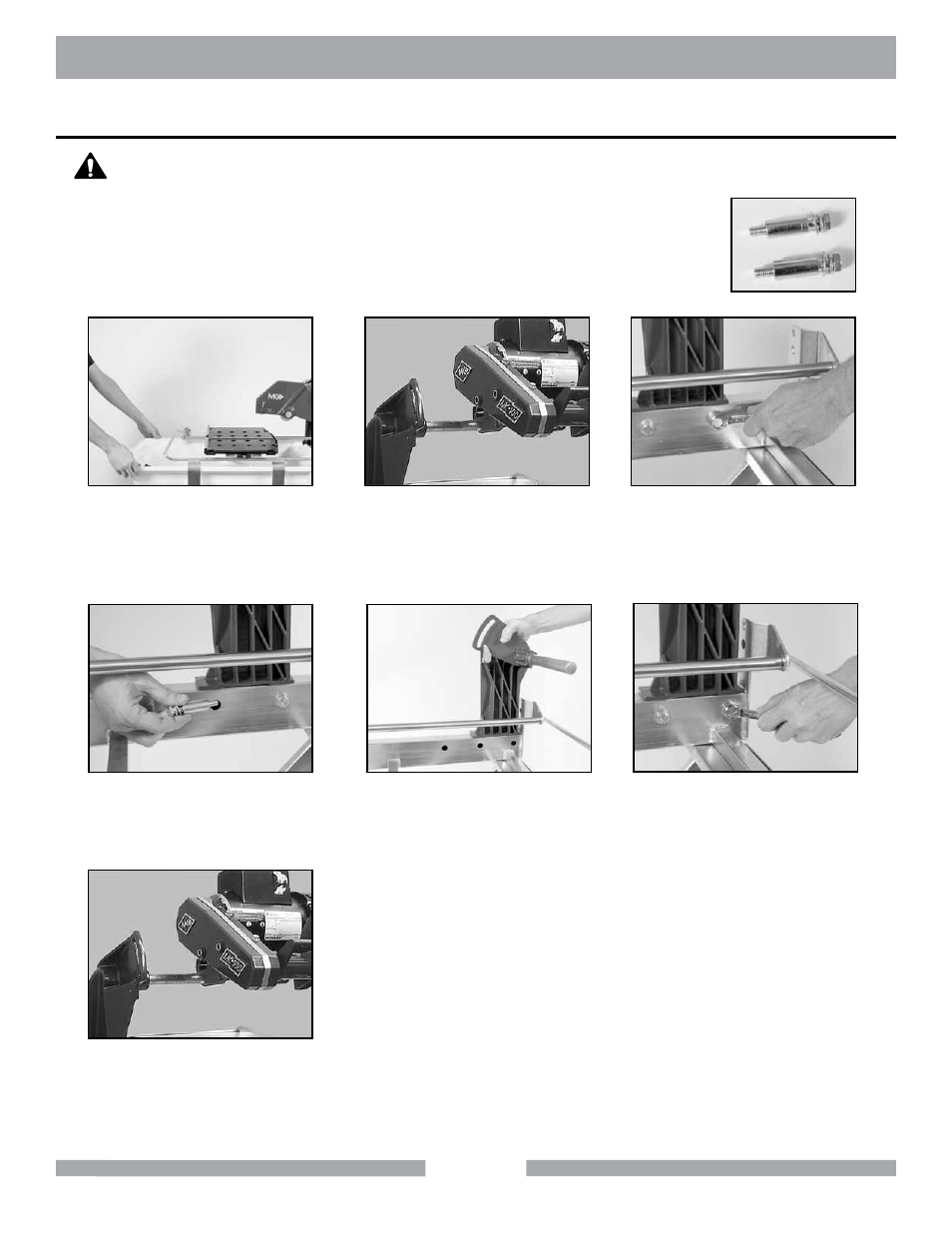

MK-100 CUTTING HEAD ADJUSTMENT
Adjusting the Motor Post for Maximum Cutting Length
The Cutting Head and Motor Post are heavy. Care must be used when changing
the position of the Cutting Head.
CAUTION
(A)
Remove Water Basin and Blade.
Secure the Cutting Head and
then remove Adjusting Knob.
(B)
Remove the Cutting Head
(Cutting Head Adjustment pg 25).
(C)
Loosen the Retaining Bolts.
(D)
Remove both the Standoffs
and Retaining Bolts.
(E)
Relocate the Post to the rear
Post retaining holes.
(G)
Install the Cutting Head in
rear Pivot Hole (Cutting Head
Adjustment pg 25).
(F)
Install the Post Support and
tighten Retaining Bolts.
Do not unscrew the Motor Post Retaining Bolts completely. There
is a Stand Off that needs to be removed with the Retaining Bolts.
NOTE:
