27
(D)
Install the Cutting Head onto the
front pivot hole

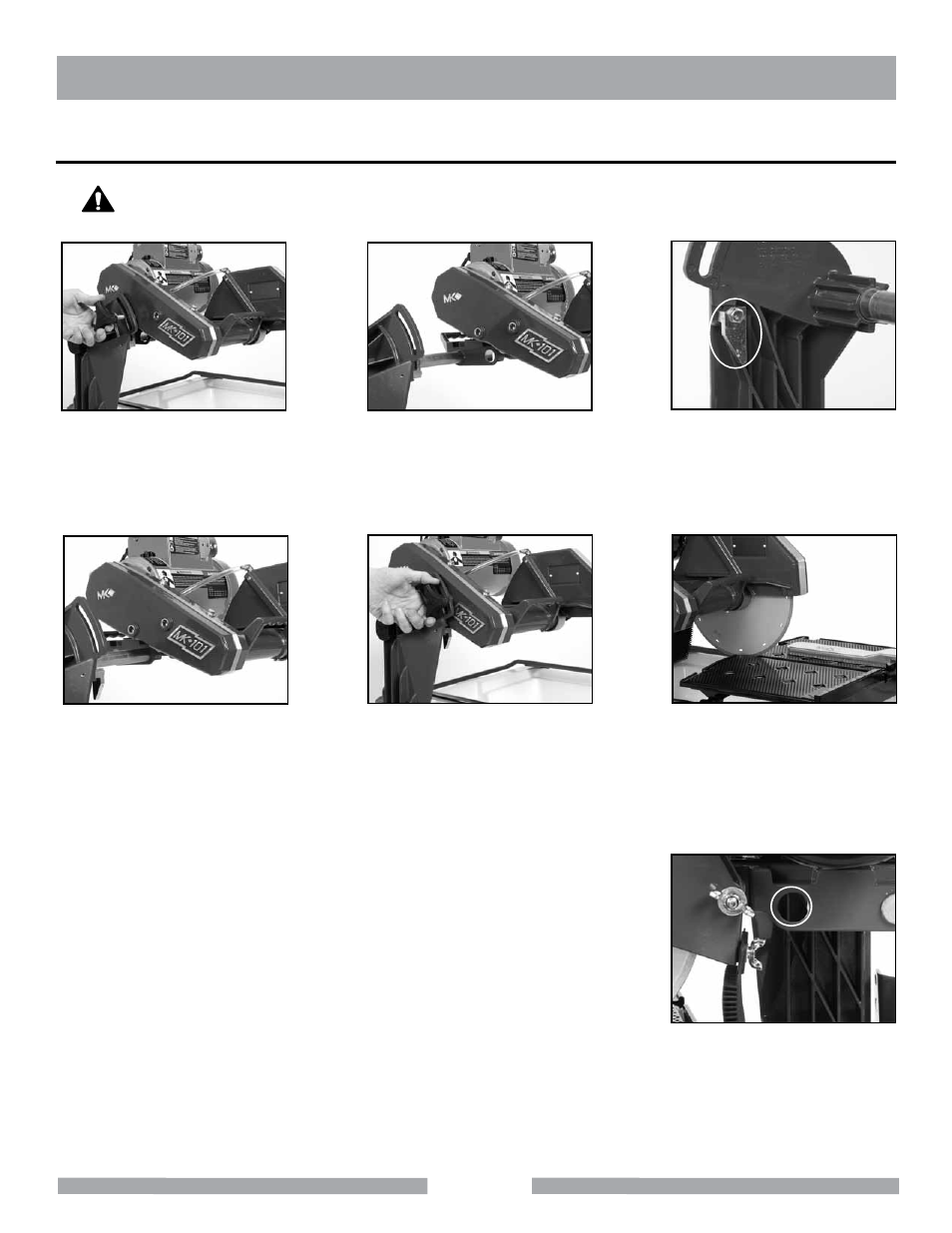

MK-101 aDJUSTMeNT
The Cutting Head is heavy. Care must be used when changing the position of the
Cutting Head.
CaUTiON
(A)
Remove the blade and then
Adjusting Knob
(B)
Remove the Cutting Head from
the rear pivot hole
(C)
Move Cutting Head Stop to
down position
(E)
Install the Adjusting Knob
NOTe: For small tiles (6” tile or smaller) the Cutting Head
should be in the rear pivot hole and the Post should be
in the forward post retaining hole. For large tiles and
maximum cutting length, the Cutting Head should be
in the front pivot hole and the Post should be in the
rear post retaining hole.
For maximum cutting length,
the Cutting Head should be
in the front pivot hole and the
Post should be in the rear post
retaining hole.
NOTe: Move Cutting Head Stop in upward positions when
using rear pivot hole and in the down position when
using front pivot hole.
(F)
Install Diamond Blade. Set
cutting depth approx. 1/4 to 1/2
inch below the surface of the
Movable Cutting Table
aDJUSTiNG THe CUTTiNG HeaD
