Page 18

(B)

Install the Thumbscrew through the

Washer and Splashguard then align

to the hole found on back of the Blade

Guard and tighten

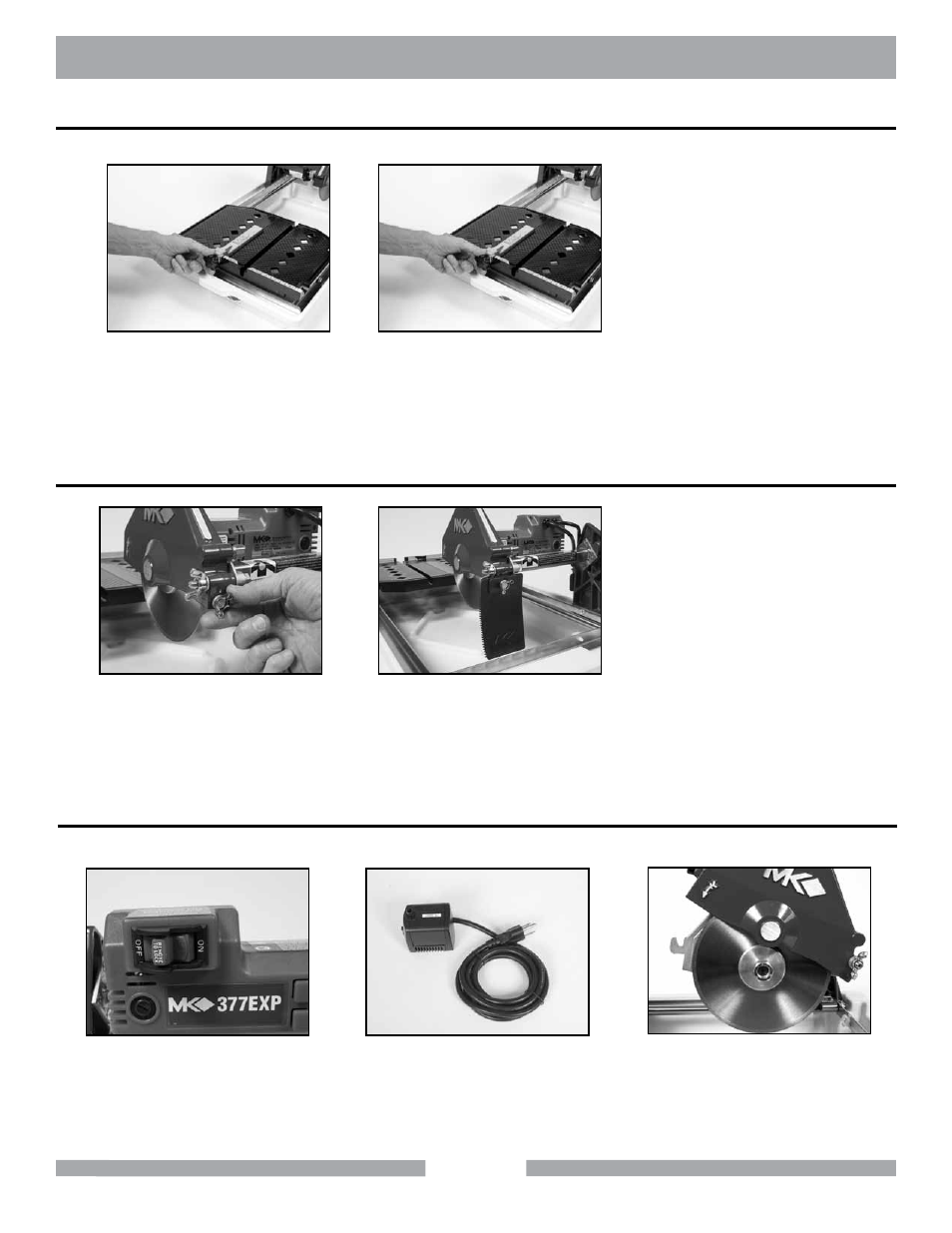

MK-377EXP SAW ASSEMBLY

ADJUSTABLE CUTTING GUIDE INSTALLATION

NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.

(A)

Loosen Adjustable Cutting

Guide retaining thumbscrew

and place it over the Movable

Cutting Table and Ruler/Stop

(B)

Place the Adjustable Cutting

Guide onto the Movable Cutting

and tighten the retaining

thumbscrew

SPLASH GUARD INSTALLATION

(A)

Remove Thumbscrew

and washer from back of

Blade Guard

PRE-START INSPECTION

Prior to beginning work, a pre-start inspection of the saw should be performed.

(B)

Inspect the Pump Assembly for

damage - ensure the cord is free

of cracks or cuts

(A)

Ensure the ON/OFF Switch

is in the OFF position

(C)

Inspect the Diamond Blade for

damage – verify the blade is

correct for the type of material

being cut
