1. Connections

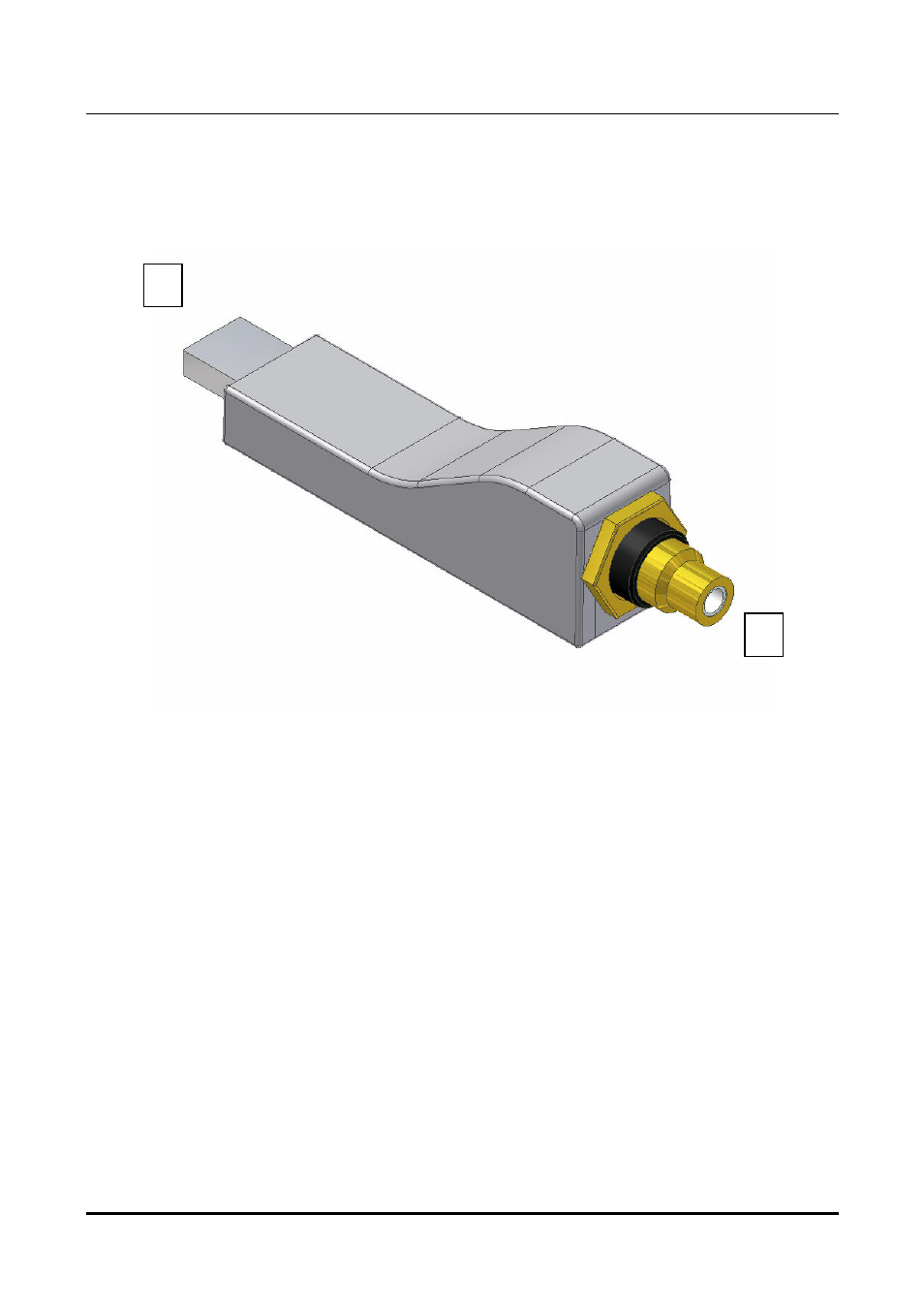

Figure 1
1) USB input. Connect directly to the USB 2.0 port of a PC or Mac, or use an USB
extender (A male to A female). In the latter, the extender must be compliant with USB 2.0
an less than 4m, otherwise the bus performance will decrease and the correct operation of
the interface will not be guaranteed. USB type A male connector
2) S/PDIF output. Connect to the DAC input with a 75 Ohms digital cable. RCA male
connector or BNC 75 Ohms male connector.
