Assembly Instructions 3/3
STEP 3
Turn the unit to its’ upright position.
Place Back Frame (D) into position with Head Cap Bolts (large).
Attach Support (E) to Back Frame (D) with Head Cap Bolts
(round head), Flat Washers (small), Spring Washers (small) and Nuts.
(See Figure 3)
Nut (small)
Nut (small)
Flat Washer (small)
Flat Washer (small)
Head Cap Bolt (round head)
Head Cap Bolt
(round head)
Spring Washer (small)
Spring Washer (small)

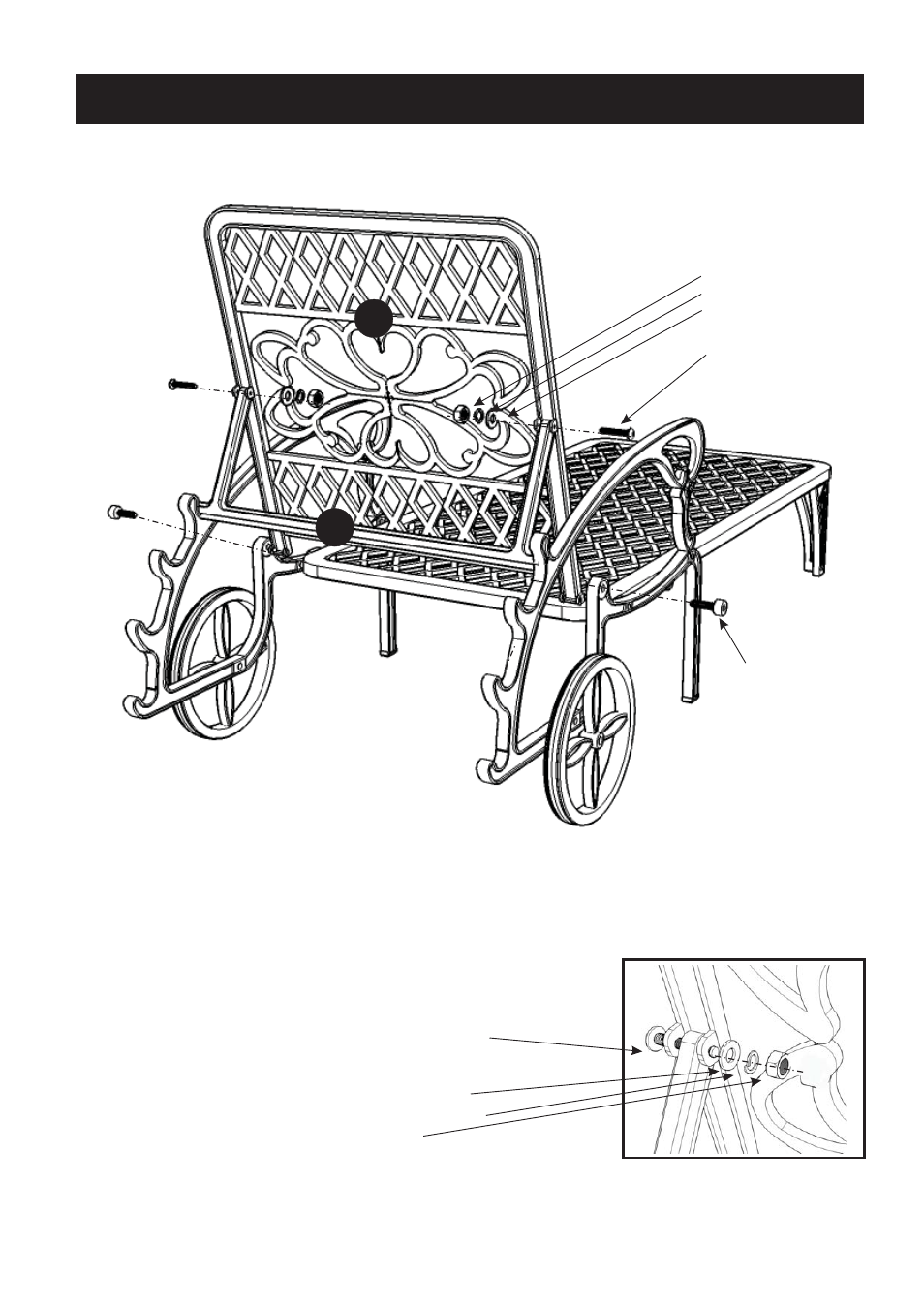

Figure 3
Head Cap Bolt (large)
D
E
