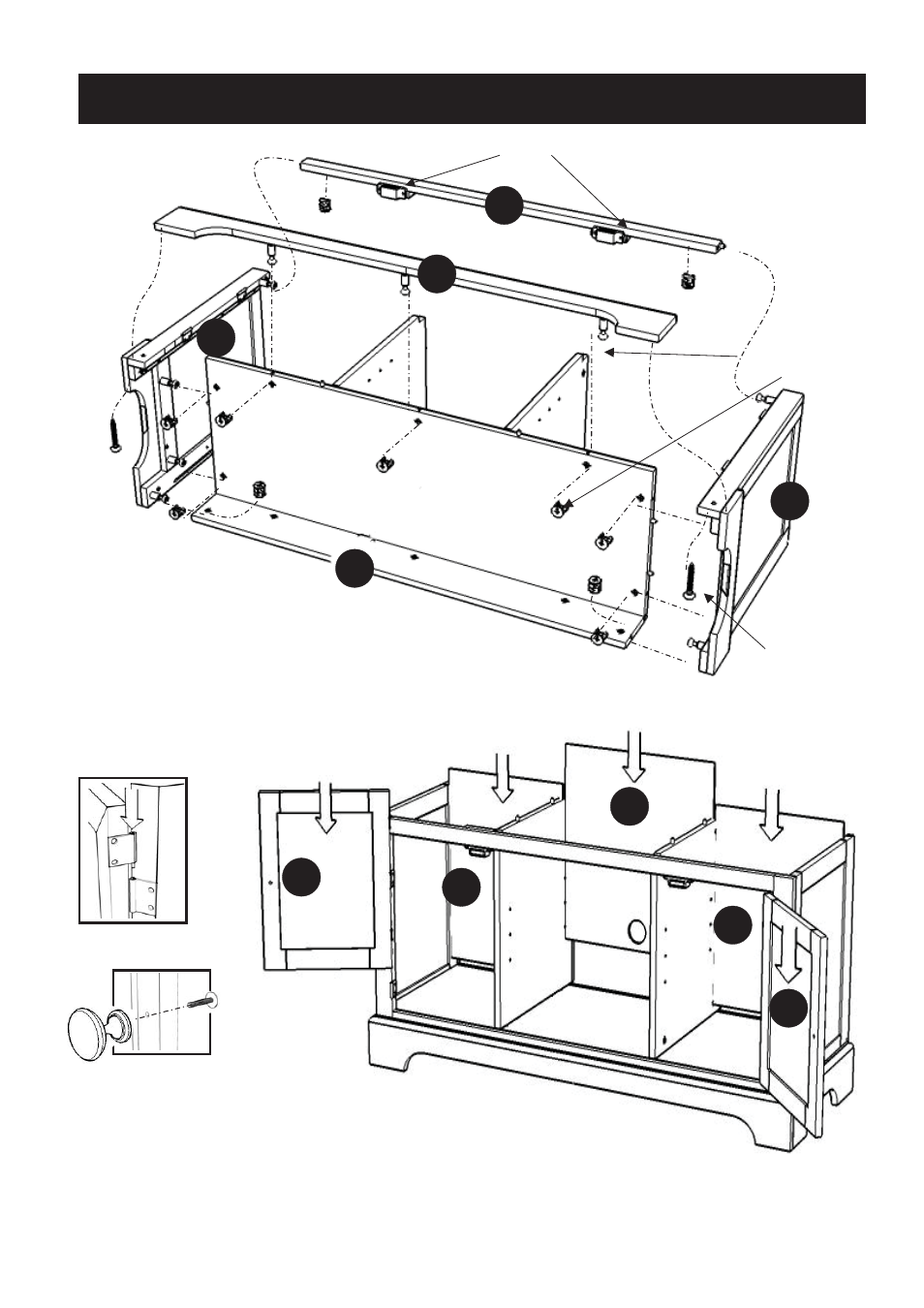

Assembly Instructions 4/5
N
B
C
G
Cam Lock Screw
Cam Lock
STEP 4
G
Magnet
Attach Plinth (G) to the unit with Cam Locks.
Attach Side Panel (B) and Front Rail (N) to the unit with Cam Locks,
then attach Side Panel (C) to the unit with Cam Locks.
Tighten up 2X Wood Screws for Plinth
K
Figure 2
Slide Back Panels (H) and (I) into place.
Attach Doors (J) and (K) by sliding the door lift hinges into the side panels lift hinges.
(see Figure 2)
Assemble Pull Handles to Doors (J) and (K) with Machine Screws. (see Figure 3)
J
H
I
H
STEP 5
Wood Screw
(for Plinth)
Figure 3
