STEP 3
Assembly Instructions 3/4

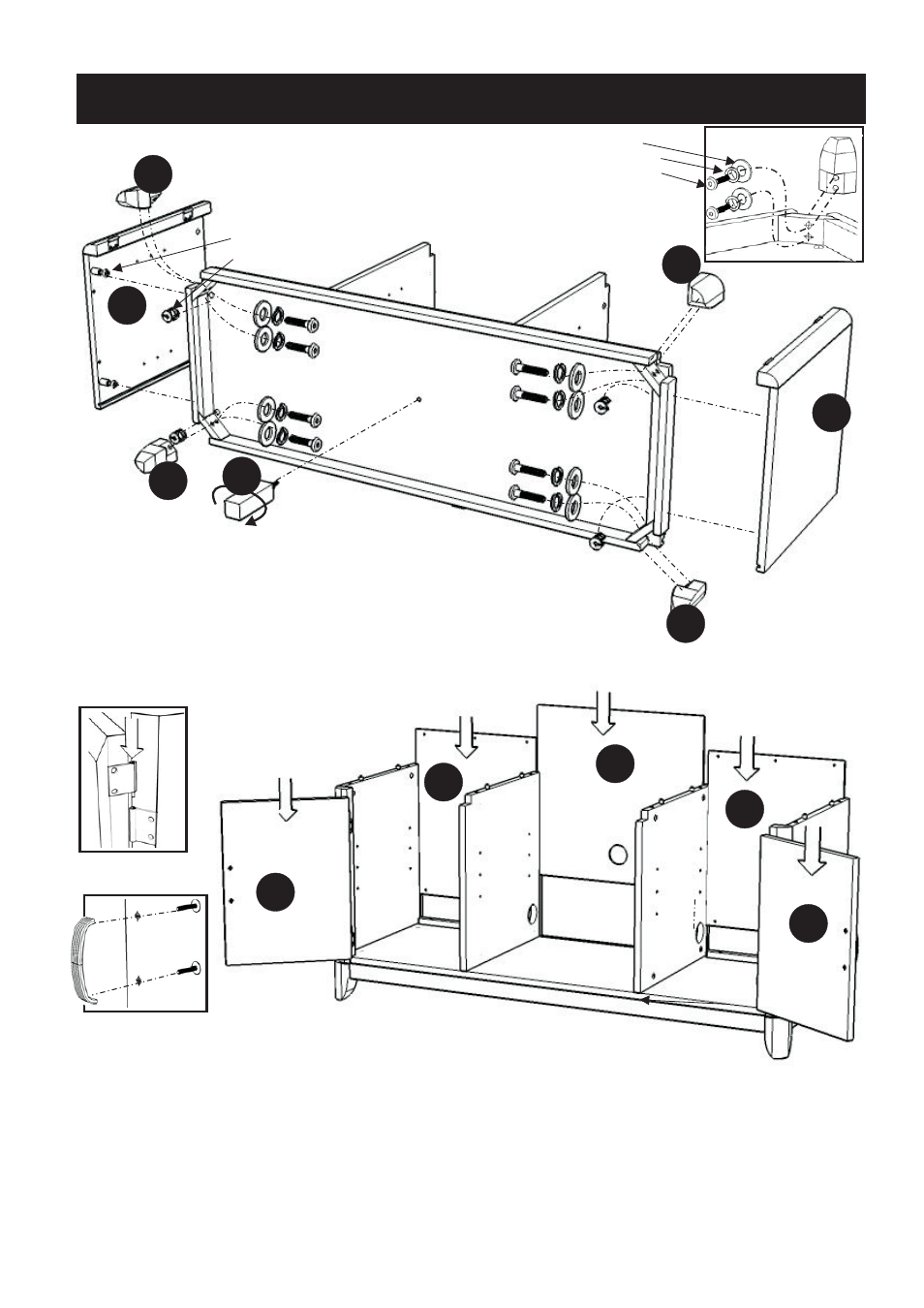

Figure 3
Cam Lock Screw
Cam Lock
F
F
F
F
Flat Washer
Spring Washer
Head Cap Bolt
Attach Side Panel (B) and (C) to the unit with Cam Locks,
then attach Leg (F) to the unit with Flat Washers, Spring Washers
and Head Cap Bolts. (see Figure 3)
Attach Leg (G) to the pre-drilled hole of base and tighten.
B
C
STEP 4
Figure 4
Figure 5
H
H
I
J
K
Slide Back Panels (H) and (I) into place.
Assemble Pull Handles to Doors (J) and (K) with Machine Screws. (see Figure 5)
Attach Doors (J) and (K) by sliding the door lift hinges into the side panels lift hinges.
(see Figure 4)
G
