STEP 1
Assembly Instructions 2/4
A
B
E
C
Cam Lock Screw

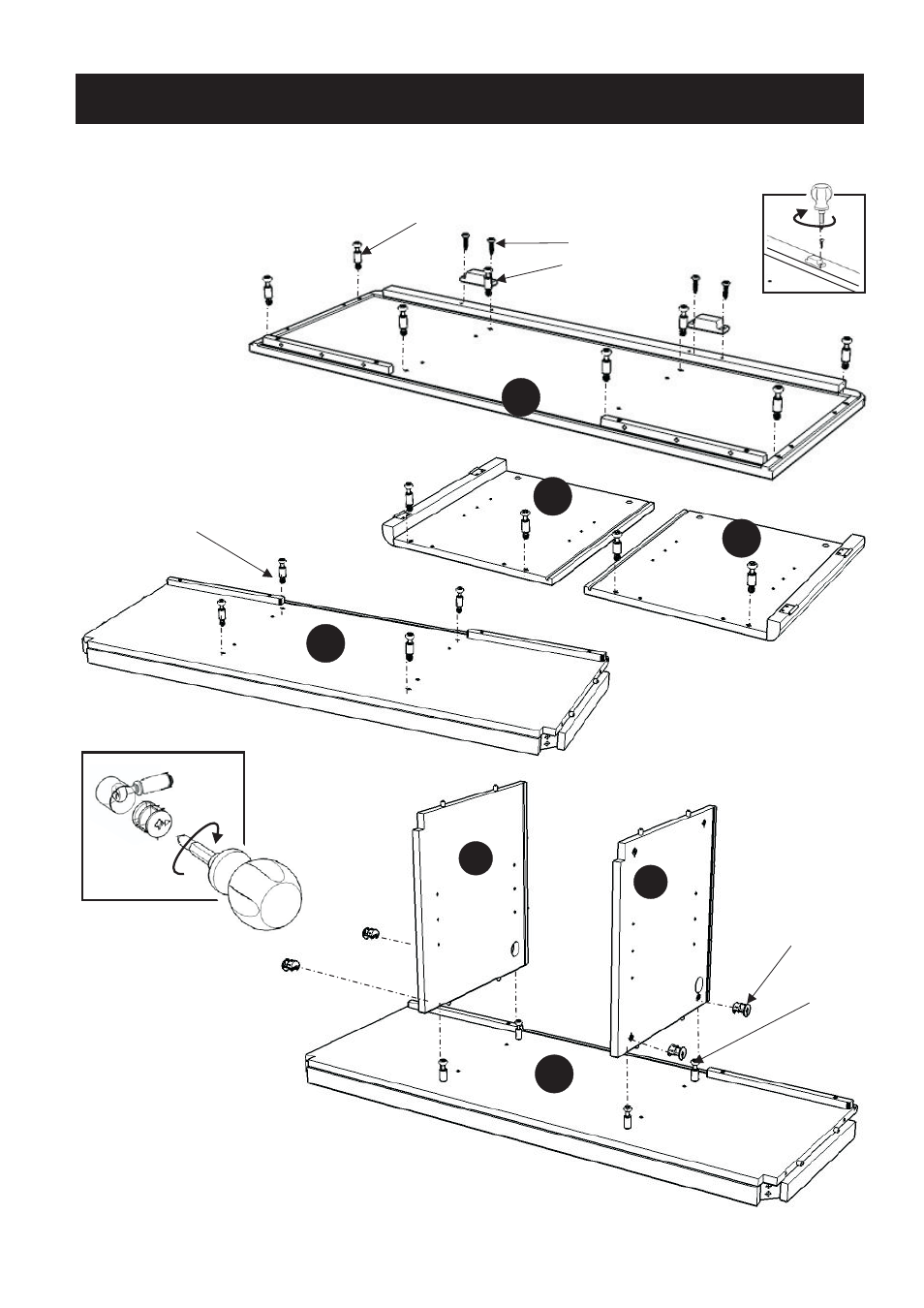

Insert Cam Lock Screws
into the pre-drilled holes of Top (A),
Base (E). Side Panel (B) and (C),
Cam Lock Screw
Wood Screw
Magnet
Attach 2X Magnets
to Top (A) by
using Wood Screws
in the pre-drilled
holes (see Figure 1).
Figure 1
D1
D2
Cam Lock
Screw
Cam Lock
E
Figure 2
STEP 2
Attach Middle Panel (D1)
and (D2) onto Base (E)
with Cam Locks. (see Figure 2)
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* After assembly, item must be level to work properly. Use the included adjustable levelers to level.
