Damper Removal & Installation (cont’d)
Step 3.
Disconnect the vent system from the draft hood
that is mounted on top of the damper.
Step 4. Remove the draft hood from the damper and retain
it for use on the new damper.
Step 5. Unplug the cord sets from the damper.
Step 6. Remove the two damper mounting screws using a
1/4” nut driver and retain for later use.
Step 7. Remove the damper from the top of the water
heater.
Step 8. Clean any debris from the jacket head of the water heater.
Step 9. Set the new damper with in place using the water heater tank flue and
the screw holes in the jacket head.
Step 10
Secure the damper in place using the screws from Step 6.
Step 11. Re-install the draft hood from Step 4.
Step 12. Reconnect the vent system to the draft hood.

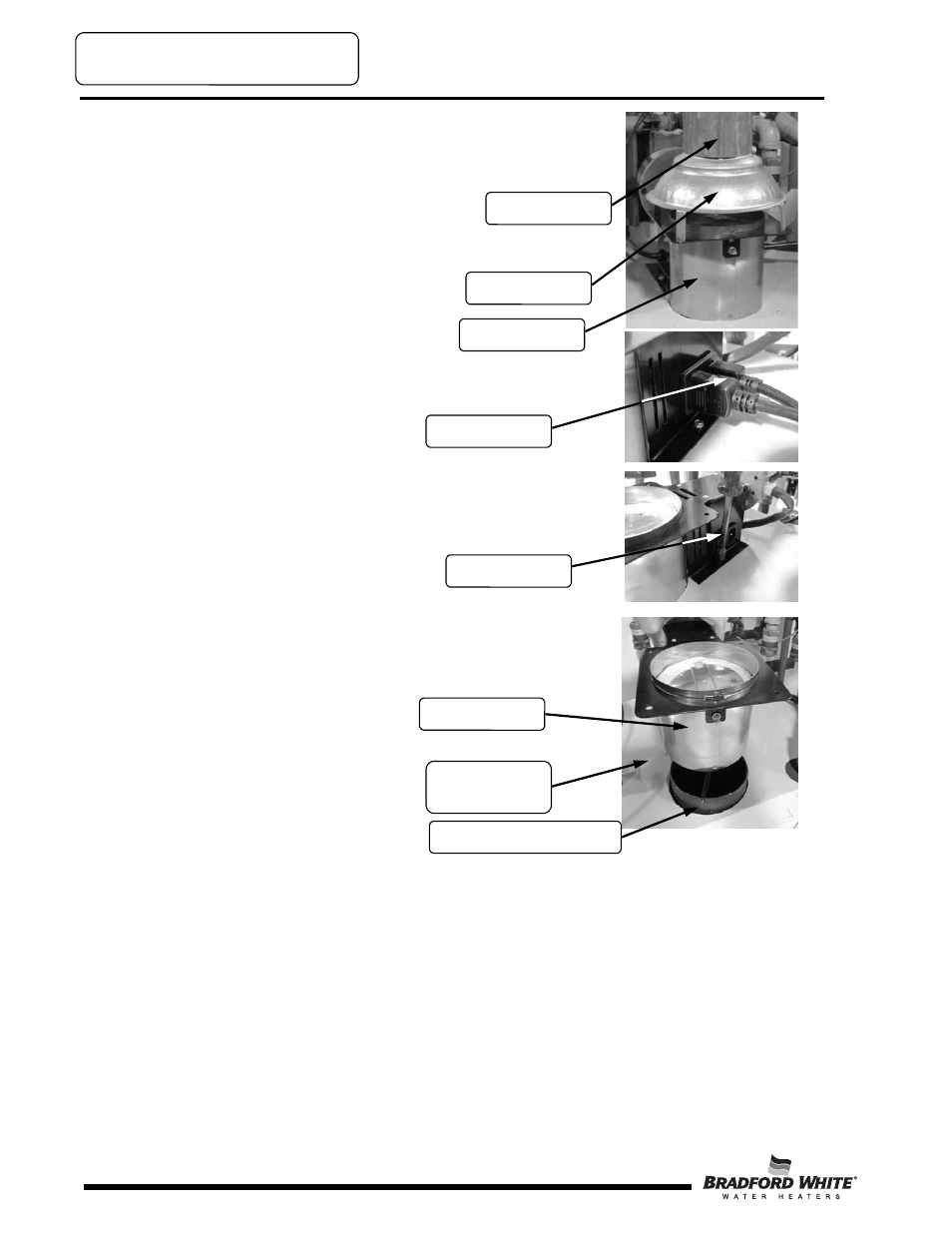

Damper Replacement
Vent system
Draft hood
Damper
Cord sets
1/4” nut driver
Damper
Top of water
heater
Water heater tank flue
