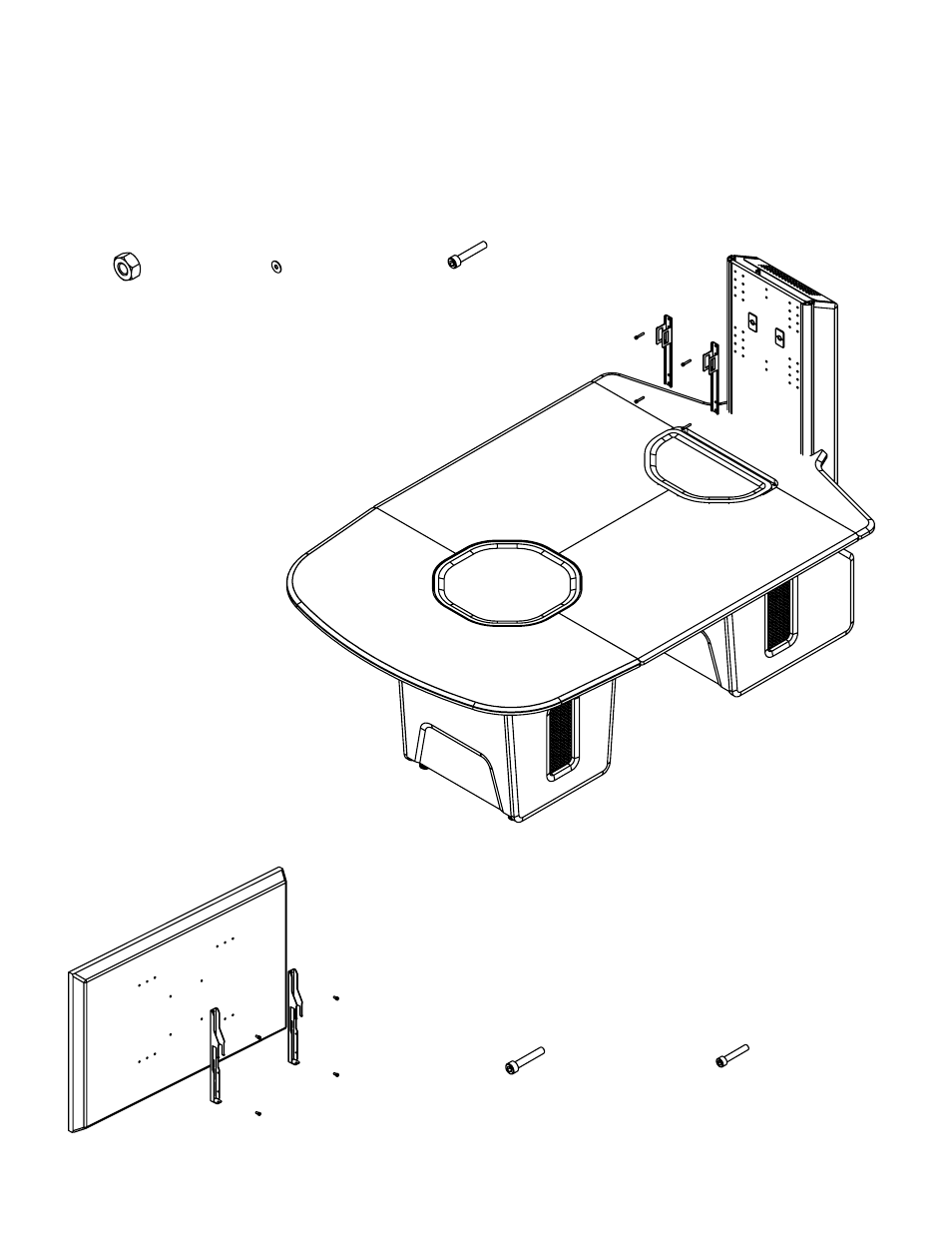

18. Attach the mounting brackets to the TE800 using a measuring tape for proper
height placement
19. Secure using provided hardware
M8 nut
(4)
20. Mount the TV Brackets to your TV using the
M8 or M6 Bolts provided
WARNING: Over tightening these bolts can result
in damage to your TV
M8 washer
(4)
M8 Socket Head
Cap Screw
(4)
M8 Socket head
cap screw
(4)
M6 Socket head
cap screw
(4)
Page 7
of 8
OR
