AVF T628T - Manual (Page 6)

Panel
screws
Lag bolt
location
5/16 washer
(1)
5/16-18
Hex nut
(2)
#8 x 1"
Particle board
screw
(12)
1/4 x 20 x 1/2
Bolt
(5)
5/16 -18 x 2.5
RHSN Bolt
(2)
Page 6
of 8

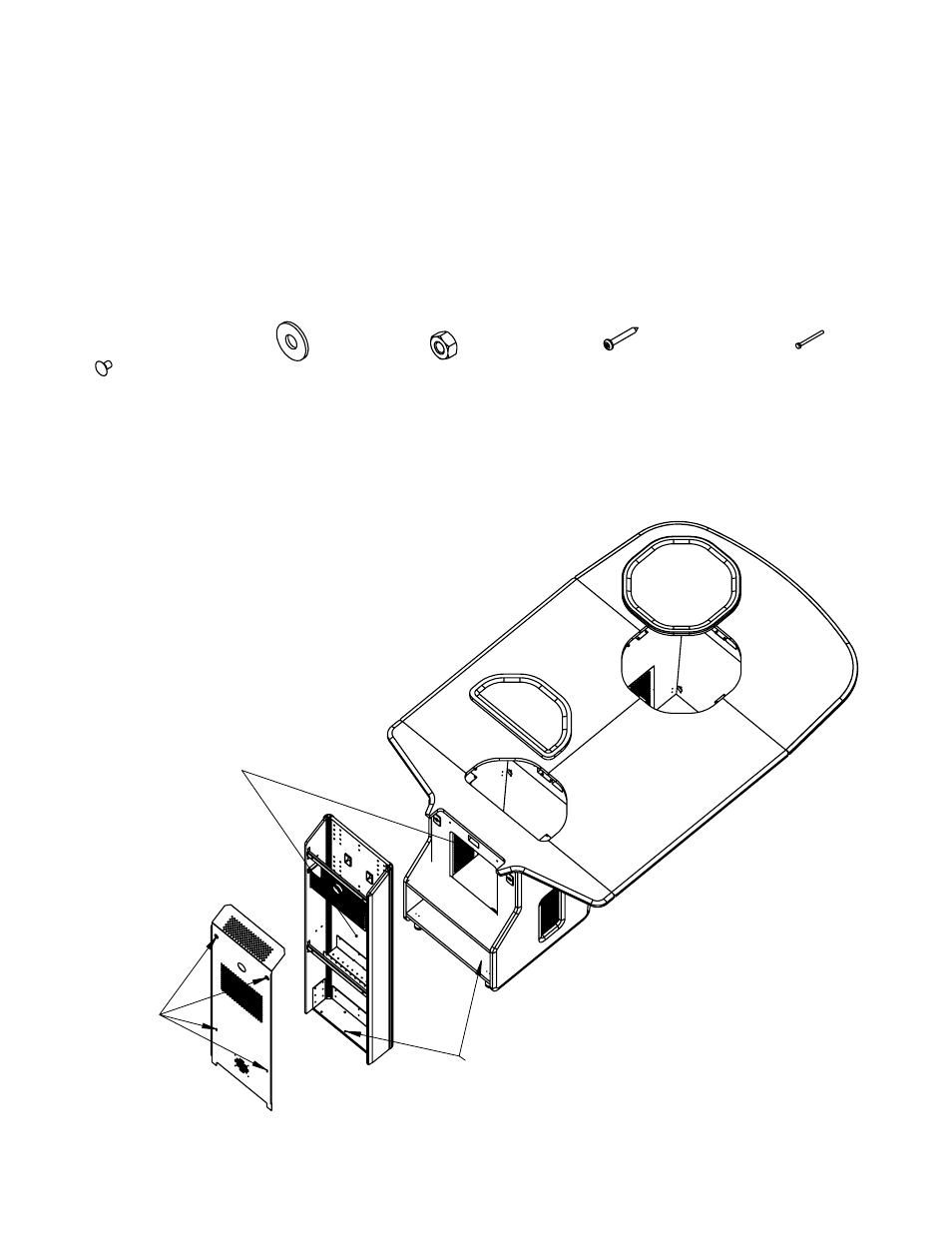

12. Place cut outs into available spaces and secure to mending plates using
the wood screws provided
13. Remove the back panel of the TE800 by removing the screws and set it aside
14. Position the TE800 unit onto the base and align the base holes
15. Secure the units with the bolts provided
16. Re-attch the TE800 back panel after all routing of wires is complete
Base
holes
