E. COMPRESSED AIR SUPPLY
A clean, dry, regulated supply of 80 psi compressed air must be supplied to the dryer. The
connection size is 1/8-inch N.P.T. No air filtering or pressures regulating devices are provided
with the dryer.

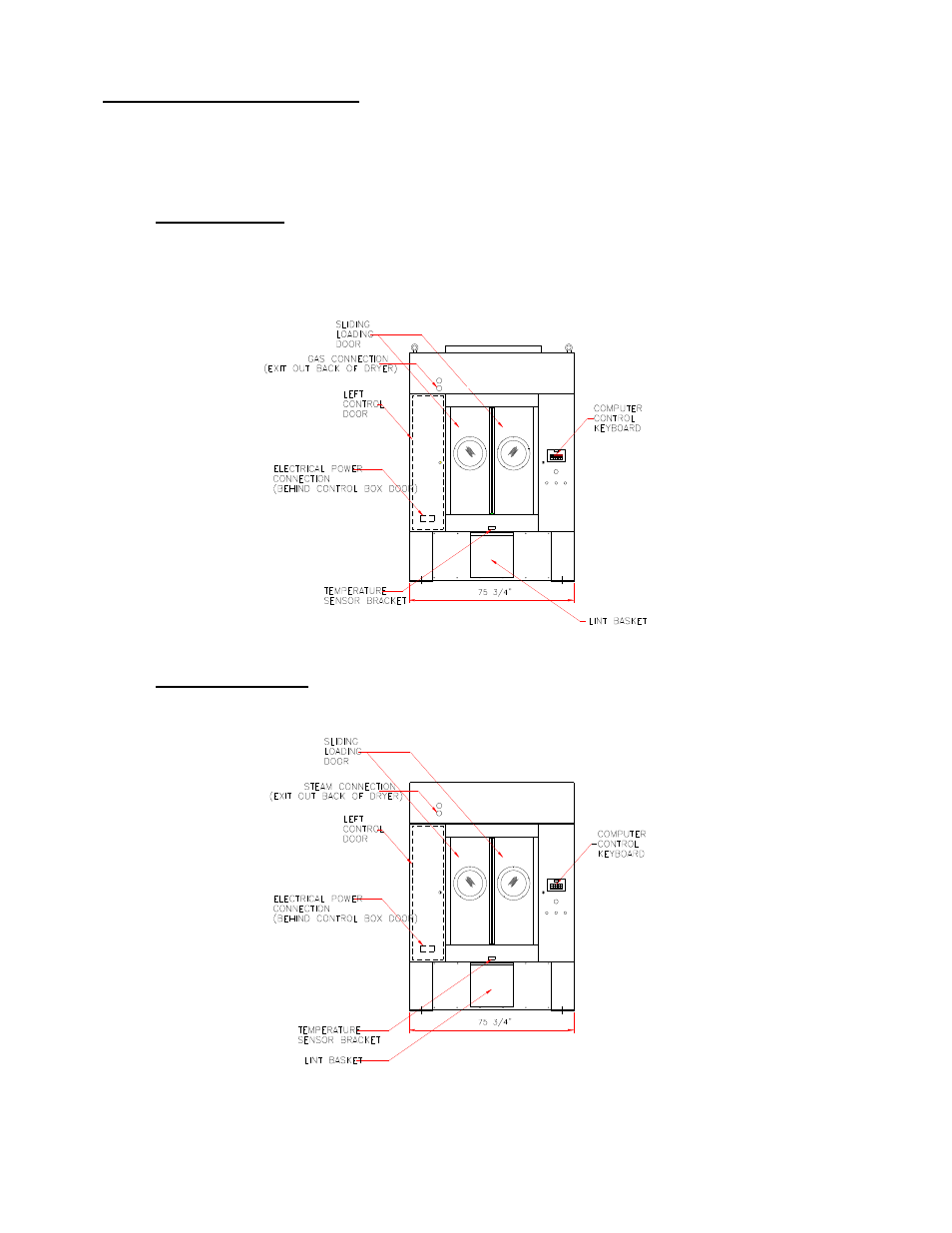

1.GAS DRYERS: The air line supply connection is made into the 1/8-inch N.P.T.
port on the air jet solenoid valve which located in the base of the dryer
(see illustration below)
2.STEAM DRYERS: The air line supply connection is made into the 1/8-inch
N.P.T. tee which located in the base of the dryer (see illustration below)
