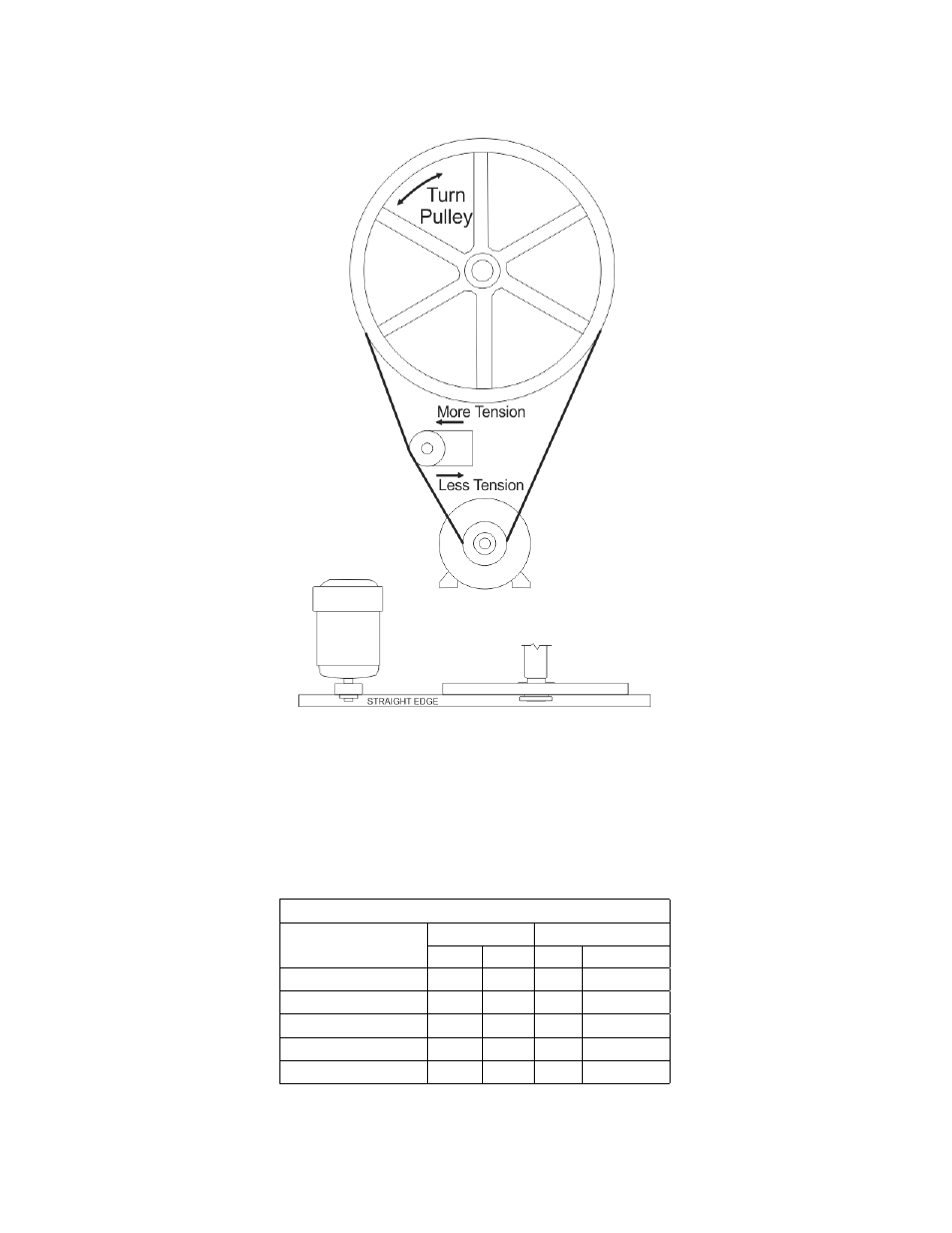

Figure 7.4: Belt Tensioning and Alignment
Table 7.1: Belt Tensioning Table
BELT TENSION CHART
Machine Model
Deflection
Force Applied
Inch
mm
Lbs
kg.
SI-110
0.25
6.4
2.2
1
SI-135
0.26
6.6
3.4
1.5
SI-200
0.24
6.1
3
1.4
SI-275
0.51
13
7.8
3.5
SI-300
0.51
13
7.8
3.5
47
