Cloud Anchor Installation Guide
1-800-959-3343 / 317-842-2600
9955 Westpoint Drive, Suite 101, Indianapolis IN USA 46256
1075-913.Cloud Mounting Instruction Guide.indd (10/30/2013 - 11:19 AM)
1. Place the ProPanels on a clean flat surface, back side up.

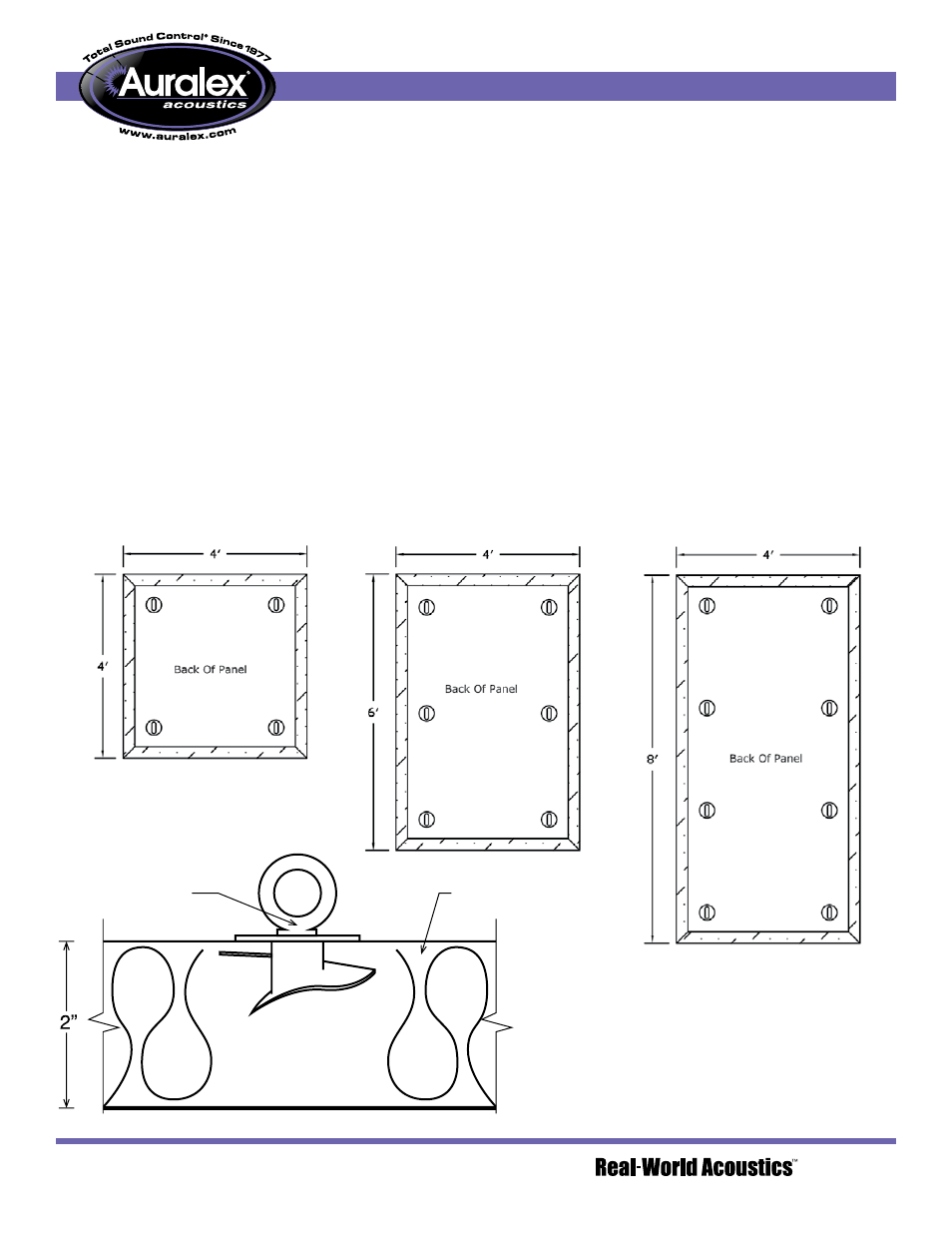

2. Review the table below and illustrations for Cloud Anchor placement. Do not install fewer Cloud Anchors than suggested. All cloud anchors
should be 6” from the ProPanel edge and should only be used on 2” thick ProPanels, 32 sq. ft. and smaller (4’x8’).
Panel Area
Number of Cloud Anchors
= 16 square feet
4
= 24 square feet
6
= 32 square feet
8
3. Measure and mark the location of each Cloud Anchor on the exposed fiberglass.
4. Press the Cloud Anchor firmly into the marked location and twist clockwise until the top disc of the anchor is flat to the back of the panel. Do
not turn the Cloud Anchor so the washer goes into the fiberglass, or you will risk pushing it through the panel.
5. Attach panel to preferred ceiling hardware using Cloud Anchor eye-hook.
Cloud Anchor
Fiberglass Panel
For detail on handling Auralex ProPanels, refer to the
ProPanel Installation Guide included with your ProPanels.
